72V 24.5Ah Rectangular Lithium Battery
This battery is discontinued. Our current 72V packs are the 72V 20Ah Triangle Battery and the 72V 19Ah Fuel Tank Battery.

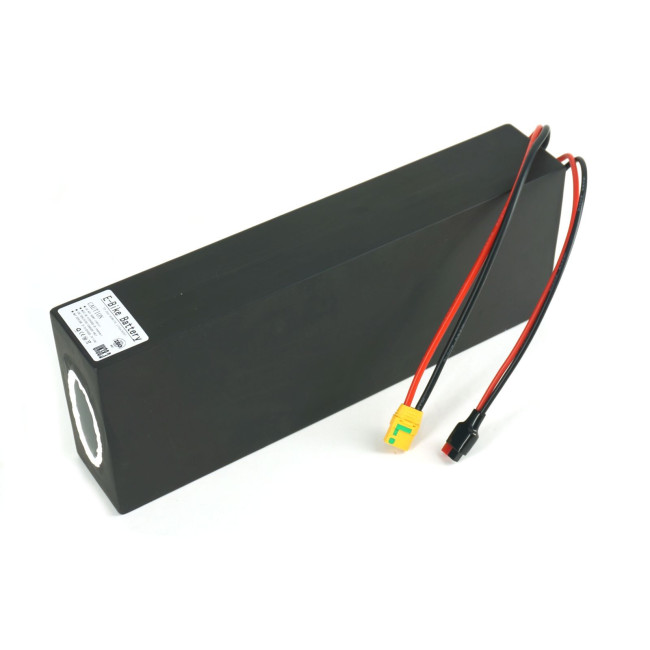

Large 72V 24.5Ah rectangular battery with 21700A cells.
SKU
B-B7225Li_R
72V (20s) 24.5 Ah rectangular battery using high power 21700A cells from Panasonic. Uses 50A continuous BMS circuit with common charge/discharge port for safe parallel pack hookups. An ideal pack for high power and fast EV systems or for our Marine applications.
| Actual Weight (kg) | 8.08 |
|---|---|
| Dimensions (L x W x H, mm) | 400 x 150 x 73 |
| Country of Manufacture | China |
| Battery Mount Location | Rear Rack |
| Nominal Voltage | 72 Volt (20s) |
| Full Charge Voltage | 84 |
| Capacity (Amp-Hours) | 24.0 |
| Watt-hours at 1C Discharge | 1710 |
| Cell Type | Panasonic NCR21700A |
| Internal Resistance (Ohms) | 0.115 |
| Connector(s) | Anderson |
