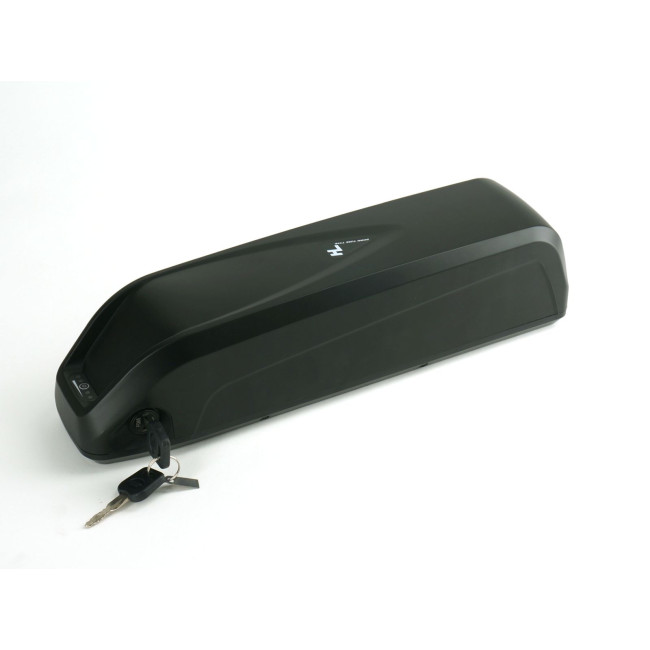

B3614LiM-DT

36V 14 Ah Downtube Battery with Panasonic PF Cells and 25A Continuous. Charger not included. No ON/OFF switch - controller must have switch.
SKU
B-B3614LiM-DT
36V 14 Ah Lithium Ion battery Downtube Battery from BikeSwift, with Panasonic PF cells and a 25A continuous (40A peak) BMS, assembled in popular enclosure from Hailong. No On/Off switch - controller must have an on/off switch **Does not include charger. Battery charge port requires DC 2.5mm Jack**

Features include:

  • Anderson Powerpole Connectors for Power
  • Push Button for 4 LED Charge Indicator
  • Installs to Waterbottle Eyelets on Downtube
  • Mechanically Locking Key Switch
  • UN38.3 Certification for Class9 DG Shipping
This battery is UN38.3 certified and can be air shipped. This battery should be used for 25A controllers or less.

Please note that we put all batteries through a full discharge/charge cycle to ensure that they will work as advertised. This may delay shipping by 1 to 2 working days.

More Information
Country of Manufacture China
Actual Weight (kg) 3.3
Dimensions (L x W x H, mm) 370x89x90
Battery Mount Location Frame Mount
Nominal Voltage 36 Volt (10s)
Full Charge Voltage 42.0
Capacity (Amp-Hours) 14
Cell Type Panasonic NCR 8650PF 10S x 5P
Internal Resistance (Ohms) 0.1
