36V 23Ah Downtube Battery

36V 23.5Ah Downtube Battery with Panasonic GA Cells, 40A BMS, no charger. UN38.3 Certified for Shipping. Temporarily out of stock for a few months.

From USD$0.00

To USD$570.00

Out of stock

SKU
BUNDLE-B3623LiM-DT
Customize 36V 23Ah Downtube Battery

* Required Fields

Your Customization
36V 23Ah Downtube Battery
36V 23Ah Downtube Battery

Out of stock

USD$0.00

Actual cruising speed/perfomance under any loading conditions is well modeled in our simulator. NEW! Launch Motor Simulator with 36V 23Ah Downtube Battery

Summary
    B3623LiM-DT
    Actual Weight (kg)
    4.35
    Dimensions (L x W x H, mm)
    370x89x110
    Mounting Type
    Frame Mount
    Nominal Voltage
    36 Volt (10s)
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    23.5
    Cell Type
    Panasonic NCR18650GA 10S x 7P
    Internal Resistance (Ohms)
    0.07
    36V 4A Charger
    Actual Weight (kg)
    0.9100
    36V 5A Charger
    Actual Weight (kg)
    0.9100
    Satiator Upgrade with ST3 Adapter
    Actual Weight (kg)
    1.06
    Baserunner_Z9
    Dimensions (L x W x H, mm)
    90 x 55 x 15
    Actual Weight (kg)
    0.18
    Max Battery Amps (A)
    30
    V4 Baserunner_L10 Controller
    Dimensions (L x W x H, mm)
    90 x 55 x 15
    Actual Weight (kg)
    0.18
    Max Battery Amps (A)
    40
    More Information

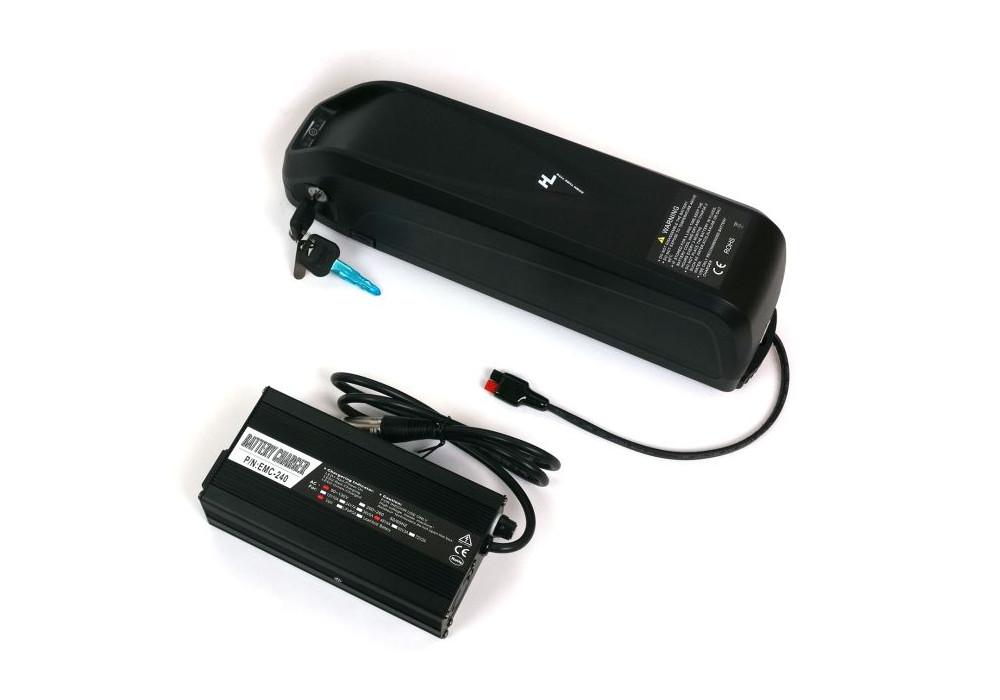

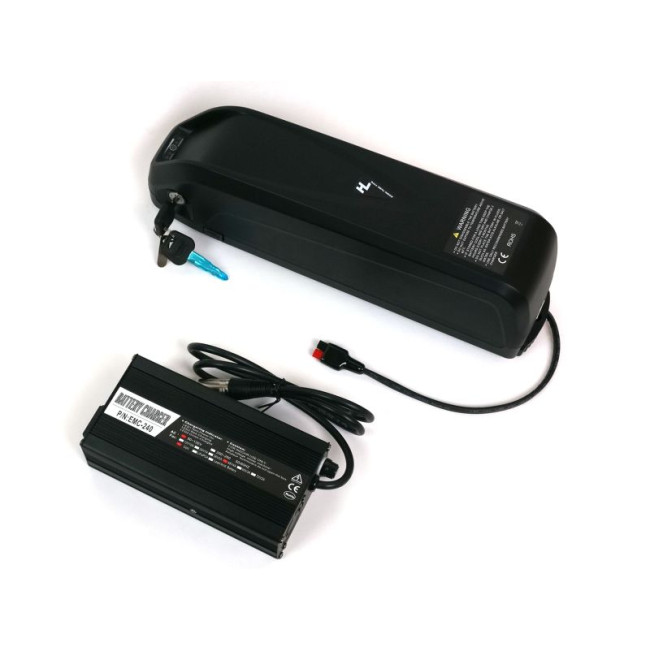

    36V (10s) 23 Ah lithium downtube battery, with Panasonic GA cells and a 40A continuous BMS, assembled in popular large Hailong-03 enclosure with XLR charging port.

    Features include:

    • Anderson Powerpole Connectors for Power
    • Push Button for 4 LED Charge Indicator
    • Installs to Waterbottle Eyelets on Downtube
    • Mechanically Locking Key Switch
    • ON/OFF Rocker Switch
    • XLR Charging Port for Satiator compatibility
