B5213LiM-DT

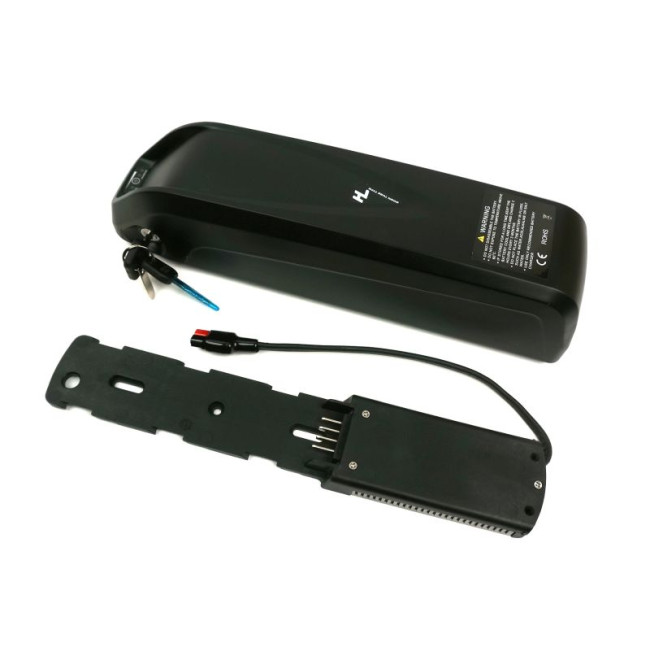

52V 13 Ah Downtube Battery with Panasonic GA Cells and 25A Rated. UN38.3 Certified for Shipping. *No charger included. *No On/Off switch.

SKU

B-B5213LiM-DT

Additional Information

52V (14s) 13 Ah Lithium Ion battery Downtube Battery from Hailong, with Panasonic GA cells and a 25A (40A peak) BMS, assembled in popular enclosure from Hailong. No on/off switch is on the battery, your controller must have an on/off switch. *No charger included

Features include:

Anderson Powerpole Connectors for Power
Push Button for 4 LED Charge Indicator
Installs to Waterbottle Eyelets on Downtube
Mechanically Locking Key Switch

This battery is UN38.3 certified and can be air shipped. This battery should be used for 25A controllers or less.

Please note that we put all batteries through a full discharge/charge cycle to ensure that they will work as advertised. This may delay shipping by 1 to 2 working days.

Specifications

More Information
Country of Manufacture	China
Actual Weight (kg)	3.5
Dimensions (L x W x H, mm)	370x89x90
Battery Mount Location	Frame Mount
Nominal Voltage	52 Volt (14s)
Full Charge Voltage	58.8
Capacity (Amp-Hours)	13
Cell Type	Panasonic NCR18650GA 14S x 4P
Internal Resistance (Ohms)	0.2
