Discounted Baserunner_L10

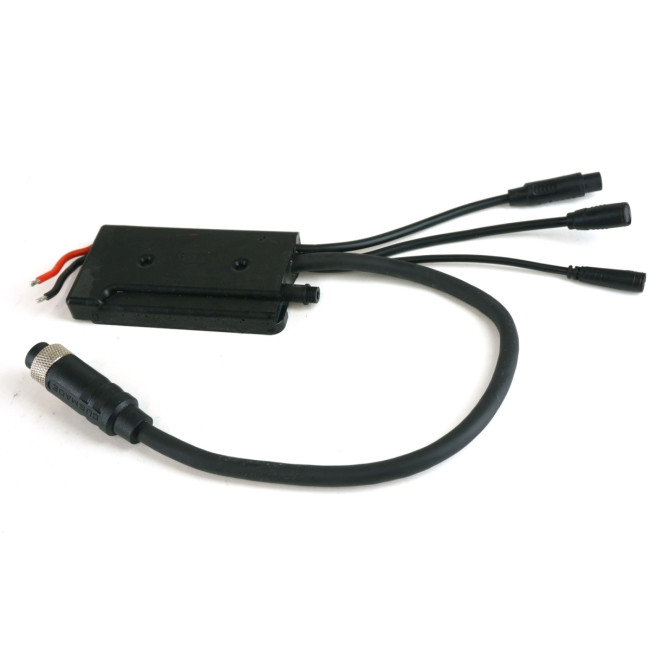

V6 Baserunner_L10 Field Oriented Motor Controller with Damaged TRRS Port during Overmolding Experiments. 30% Discount Applied when Added to Shopping Cart

Full Product Information Page

Out of stock

SKU

BUNDLE-Baserunner_L10_Disc

Customize Discounted Baserunner_L10

Base Controller

V6 Baserunner_L10

Quantity

Offspec

Select Baserunner with Clogged TRRS Port (-30%)

Quantity

9Pin Port Converter

9 Pin Main to TRS Communications Adapter

Quantity

Mount Style

Quantity

Include Programming Cable (Used for CA3, Baserunner, Phaserunner, Satiator)

1 x TTL-USB Programming Cable + USD$14.75

* Required Fields

Your Customization

Phasernuner_MT V3 Side View

Summary

Additional Information

These Baserunners got damaged during the course of Grin's experimentation with an overmolding technique to pot the controllers, and ended up with material leaking into the TRRS port used to connect to a computer. Fortunately they can also hook up to a computer for programming via the 9 pin Mains cable, and we include an adapter to simplify that.

They work equally well with CA3 systems or Main9 Harness Systems, but with a Main9 Harness System you have to first unplug the Main9 Harness to plug in the communication port, which can complicate some diagnostics but still lets you set and change all the parameters no problem.

V6 Baserunner_L10

Manufacturer

Grin

Country of Manufacture

Canada

Max Phase Amps (A)

80

Max Battery Amps (A)

35

Max Regen Voltage (V)

60

Battery Range (V)

20-60

Dimensions (L x W x H, mm)

90 x 55 x 15

Actual Weight (kg)

0.18

L1019 Motor Cable Length (cm)

38

6 Pin HiGo Cable Length (cm)

16.5

WP 8 Pin Cable Length (cm)

15.5

Main 9 Pin Cable Length (cm)

16

Product Attachments

V6 Baserunner User Manual (2.50 MB)

Baserunner_Tube_Mount (39.22 kB)

USB->TTL Programming Cable Manual (1.33 MB)

3m Long TTL-> USB programming cable for Satiator, Baserunner, Phaserunner and Cycle Analyst. *Note: All kits come pre-programmed, and most system behaviour is configurable with the Cycle Analyst buttons. But this cable is necessary if you plan to change more advanced controller settings or update device firmware* Full Product Info

Click Here for detailed product info page

CNC Machined Aluminum Tube Mount for Installing Baserunner_Z9 and Baserunner_L10 onto any Bike Tube.

Click Here for detailed product info page

This simple aluminum plate with flanges allows any of our Baserunner controllers to be mounted on any flat surface. Works well especially for our Baserunner Stand Alone where all cables are from one end. Great when you are not using your Baserunner with a downtube battery. Comes with screws to attach your Baserunner to the plate. Alternatively, consider a Baserunner TubeMount.

Click Here for detailed product info page

Aluminum Controller Mount for Reention Poly-DPxC Series Downtube Batteries, Machined to fit Baserunner Motor Controllers

Click Here for detailed product info page

Aluminum Controller Mount for Hailong-01 and Hailong-03 Downtube Batteries, Machined to fit Baserunner Motor Controllers

Click Here for detailed product info page

Adapter Cable to Create Alternate Serial Communication Port with Frankenrunner, Phaserunner, or Baserunner Controllers via 9 Pin Mains Connector. For Diagnostics of Damaged Controllers which Can't Communicate via Internal TRS Jack.

Click Here for detailed product info page

V6 Baserunner_L10 Field Oriented Motor Controller. Flat Profile Fits Many Downtube Battery Enclosures. L1019 Motor Plug. 80A Peak Phase Currents (~45-50A Continuous), for 24-52V Batteries (60V Max Input). Full Product Information Page

Click Here for detailed product info page

Baserunner with Damaged TRRS Communication Port and Possible Poor Cosmetic Finish. Fully Functional using Main9->TRRS Cable for Programming. Applies 30% Discount to Controller in Cart
