Grin Baserunner, - Flat Field-Oriented Waterproof Motor Controller for Battery Enclosures with Z910 Plug. 60V Max and 55A Peak Phase Currents (~30-35A Continuous). No On/Off switch and Unterminated.

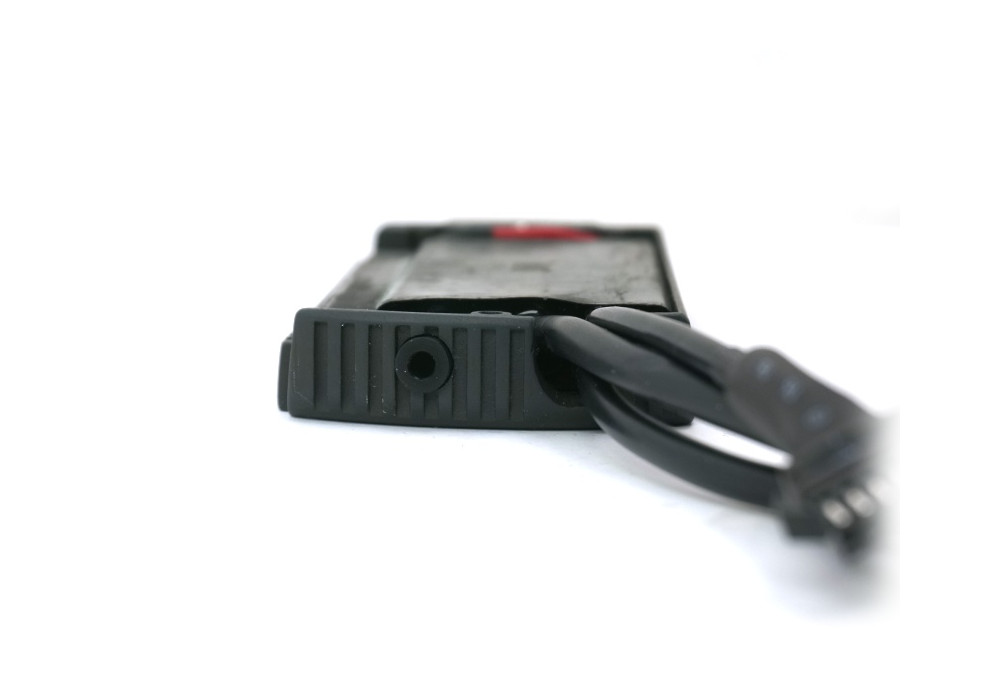

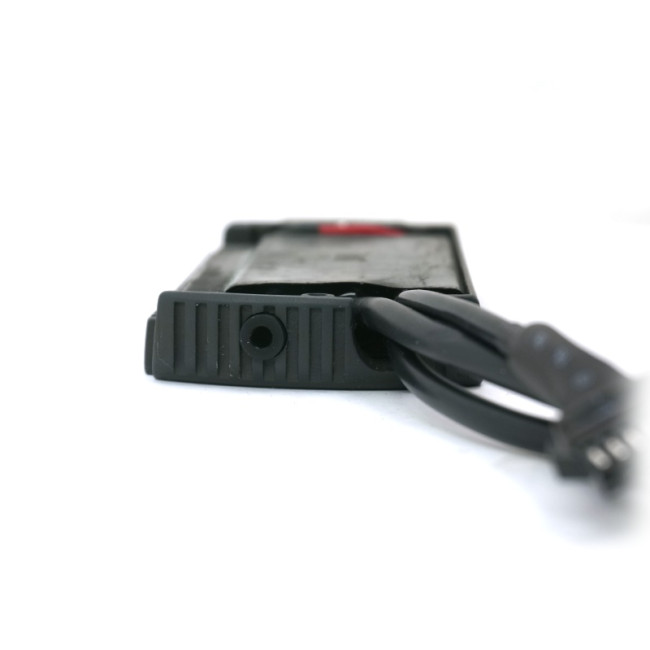

The Baserunner_Z9 is a compact field-oriented motor controller and enclosure that fits inside the Hailong and Reention downtube battery cradles. It is compatible with up to 14s (58V) battery packs and is terminated with a Z910 waterproof HiGo motor plug. Includes a throttle plug (with remote on/off switch wires under the heatshrink), and either a classic 6-pin JST Cycle Analyst plug or the 8 pin HiGo plug for the new CA3-WP.
The baserunner purchased on its own has bare + and - lead wires that will need to be soldered to the pins of the connector present in your original base plate. We do separately sell spare spade and bullet connector sets if desired.
A computer setup is required to configure this controller to a given motor, and this requires the USB->TTL communications cable if you don't already have one. Users without an on-off switch on their battery should expect to wire in a separate switch on their own. Full Baserunner Information Page.
|ETA||Feb. 8, 2022|
|Country of Manufacture||Canada|
|Dimensions (L x W x H, mm)||90 x 55 x 15|
|Actual Weight (kg)||0.18|
|Max Battery Amps (A)||30|
|Max Phase Amps (A)||55|
|Battery Range (V)||20-60|
|Low Voltage Cutoff (V)||Programmable|
|Connector(s)||HiGo 0812(WP8), JST-SM, TRRS, Z910|
