C4820_Brompton

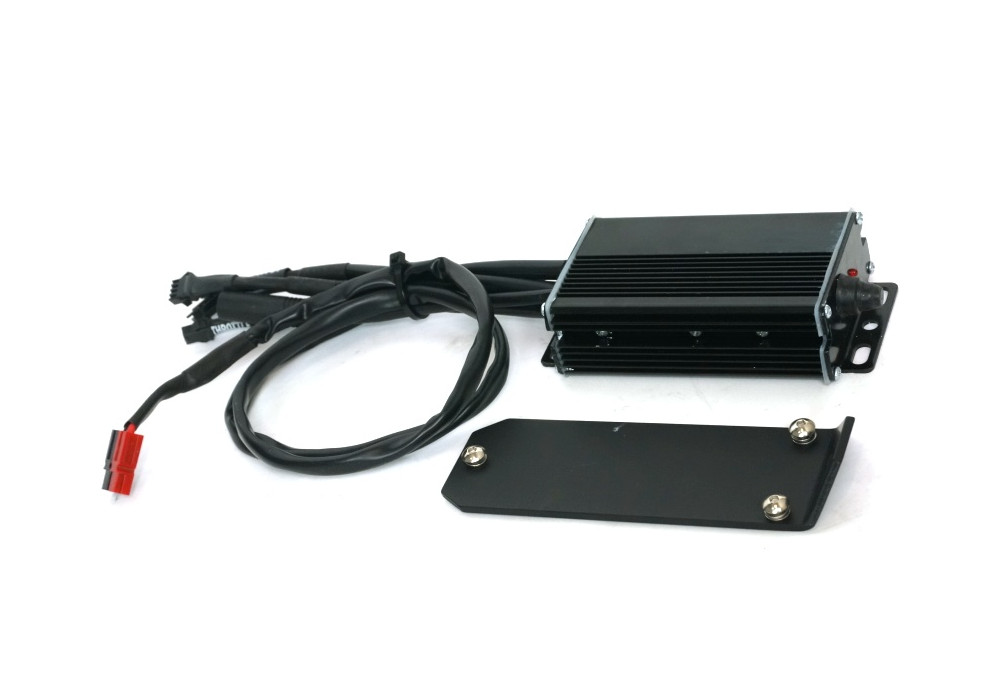

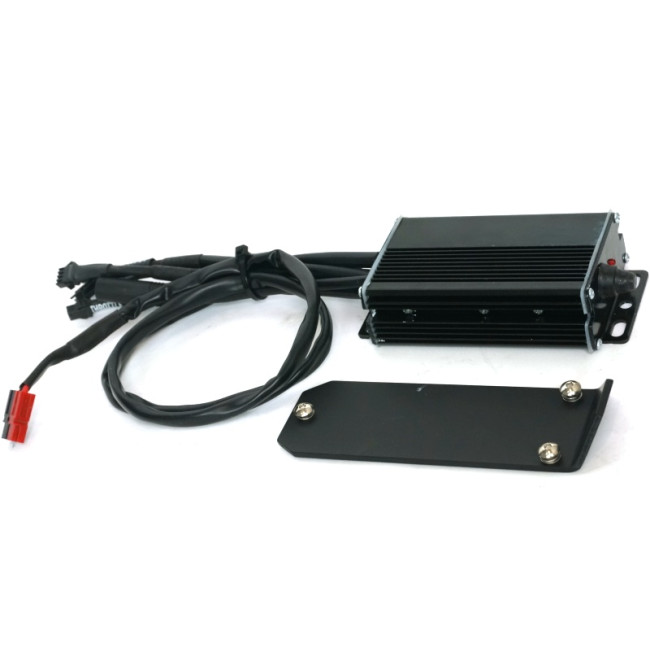

36-48V, 20A Sinewave Controller with ON/OFF switch, Proportional Regen, and CA3 Connector with short wiring harness, new Waterproof 9-pin Higo Z910 motor plug, and fork mounting bracket for Brompton Bike conversions. For use with Direct Drive motors.

Full Product Information Page

SKU

C-C4820_Brompton

Additional Information

20A Sensored/Sensorless Grinfineon Controller with waterproof 9-pin higo plug for direct drive motors that have thermistor

Features include:

36-48-52V Compatible
Short 15cm Cable Harness
Sinewave Control in Sensored Mode
Proportional Regenerative Braking
FWD/REV Input Wire
Integrated waterproof On/Off Button
Decent MOSFETs (AOT460 or better)
Motor Thermistor Pass Through to 2pin JST Plug for CA3
V2 and V3 Cycle Analyst Compatibility
Waterproof Gasket

For more information please see the Grinfineon controller page.

Specifications

More Information
Country of Manufacture	China
Dimensions (L x W x H, mm)	110 x 71 x 34
Actual Weight (kg)	0.4700
Max Regen Voltage (V)	58
Max Battery Amps (A)	20
Max Phase Amps (A)	45
Battery Range (V)	24-48
Low Voltage Cutoff (V)	19
MOSFETs	6 x AOT460
Control Chip	XC836
