C4835-L10

48V-52V, 35A Sinewave Controller with ON/OFF switch, Proportional Regen, and CA3 Connector. New Model with Waterproof L1019 Connector for Motor Plug and WP8 Cycle Analyst Connector. For direct-drive motors only, does not work well with high power geared hubs like the GMAC or eZee.

Full Product Information Page

SKU
C-C4835-L10

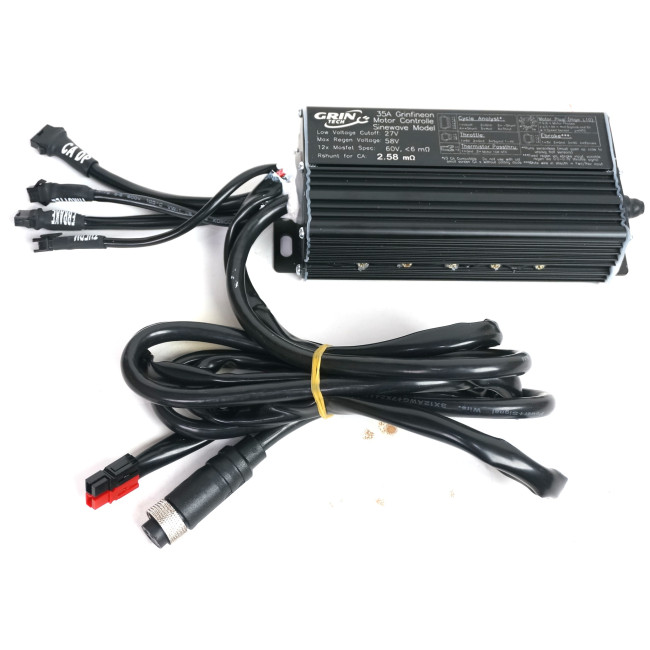

35A Sinweave Grinfineon Controller

Features include:

    • New WP8 Cycle Analyst Connector
    • Wide Input Voltage Range (36-58V)
    • Operates both Sensored and Sensorless
    • Quiet Sinusdoial Output when Sensored
    • Sensorless up to 28000 eRPM, Geared Motor Compatible
    • Waterproof L1019 Plug with Phase, Hall, Speed, and Temperature Signals
    • Includes Pass-Thru of Motor Temperature Signal to 2-pin JST for CA3
    • New Model with

Waterproof L1019 Connector

    for Motor Plug
  • Fully Proportional Regenerative Braking from 0-0.8V Throttle Signal
  • FWD/REV Input Wire
  • Integrated ON/OFF Toggle Switch
  • Decent <6mOhm MOSFETs (AOT460 or better)
  • Waterproof Gasket

For more information please see the Grinfineon controller page.

More Information
Country of Manufacture Canada
Manufacturer Mr. Ji
Dimensions (L x W x H, mm) 154 x 87 x 46
Actual Weight (kg) 0.7500
Max Regen Voltage (V) 58
Max Battery Amps (A) 35
Max Phase Amps (A) 72
Battery Range (V) 48V-52V Nominal
Low Voltage Cutoff (V) 36
MOSFETs 12 x AOT460
Control Chip XCKJ 3232C
Connector(s) Anderson, HiGo 0812(WP8), JST-SM, L1019
