C7240-GR

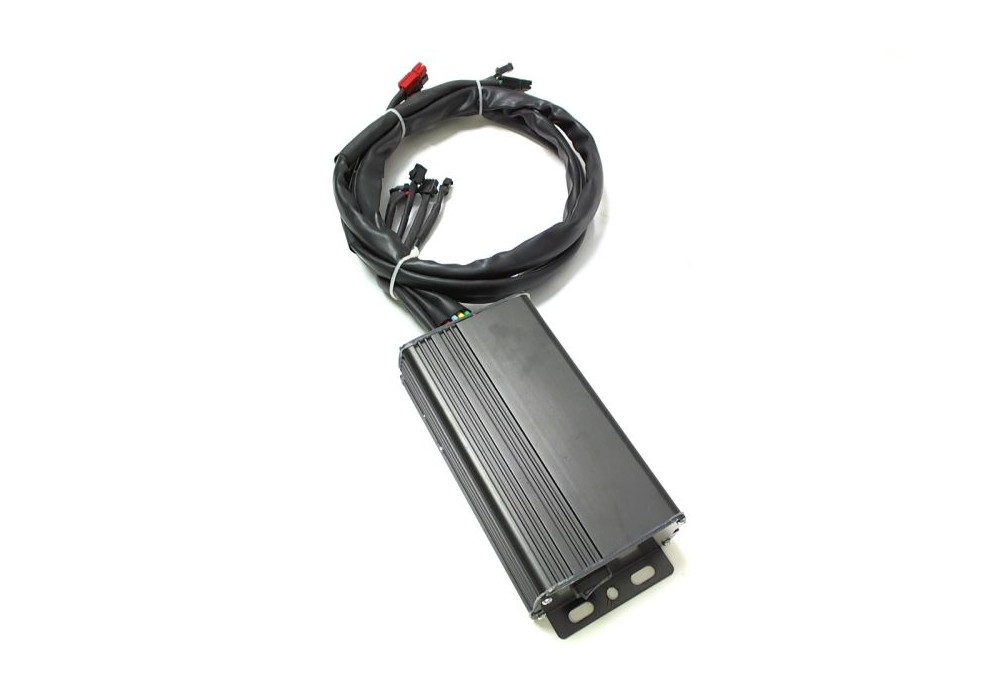

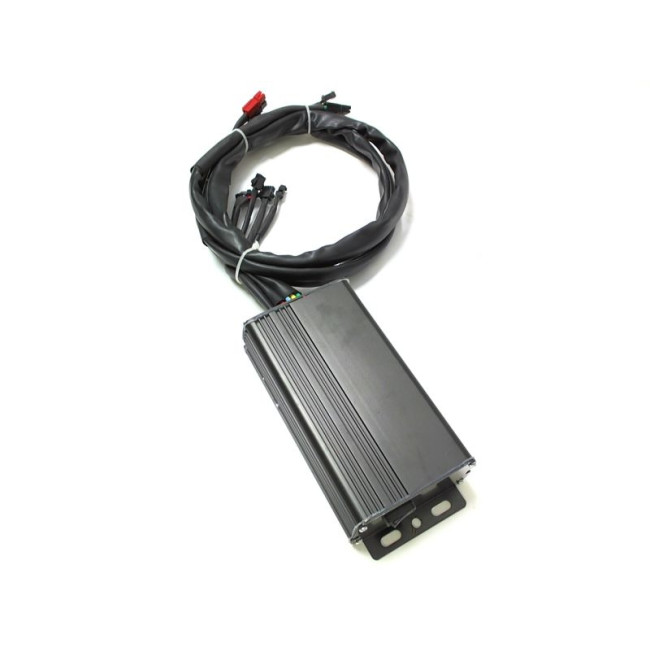

36-72V, 40A Sinewave Controller with ON/OFF switch, Proportional Regen, and CA3 Connector. For both Sensored and Sensorless Brushless Motors.
SKU
C-C7240-GR
40A Sinweave Grinfineon Controller
Features include:
- Wide Input Voltage Range (31-88V)
- Operates both Sensored and Sensorless
- Quiet Sinusdoial Output when Sensored
- Sensorless up to 28000 eRPM, Geared Motor Compatible
- Fully Proportional Regenerative Braking from 0-0.8V Throttle Signal
- FWD/REV Input Wire
- Integrated ON/OFF Toggle Switch
- Performance MOSFETs (IRFB4110 or better)
- V2 and V3 Cycle Analyst Compatibility
- Waterproof Gasket
For more information please see the Grinfineon controller page.
| Country of Manufacture | China |
|---|---|
| Dimensions (L x W x H, mm) | 154 x 87 x 46 |
| Actual Weight (kg) | 0.6600 |
| Max Regen Voltage (V) | 88 |
| Max Battery Amps (A) | 40 |
| Max Phase Amps (A) | 85 |
| Battery Range (V) | 36V-72V Nominal |
| Low Voltage Cutoff (V) | 31 |
| MOSFETs | 12 x IRFB4110 |
| Control Chip | XCKJ 3232C |
| Connector(s) | Anderson, JST-SM |
