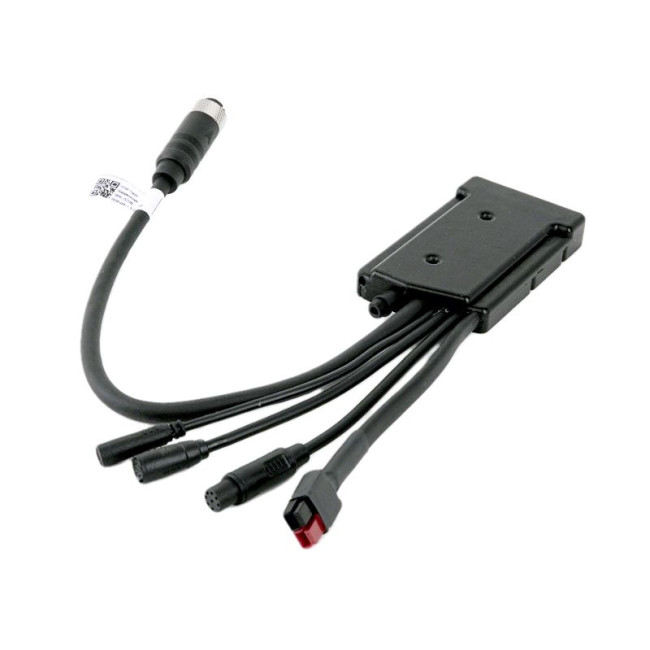

V6 Baserunner_L10 Stand-Alone
Field Oriented Motor Controller. Stand Alone Model for External Mounting. 15cm battery cable, 80A Peak, 45A continuous, Max 52V Batteries. L1019 Motor Plug.
The Baserunner_L10 is a compact field-oriented motor controller and enclosure that fits inside the Hailong and Reention downtube battery cradles. It is compatible with up to 14s (58V) battery packs, supports up to 80A peak phase current through the L1019 waterproof motor plug.
- 8-pin HiGo plug for CA3-WP control (To convert the WP8 to a classic CA-DP, you must purchase an adapter.)
- 9-pin Cusmade Mains signal plug for harnesses to 3rd party displays, alternately use to power rear light
- 6-pin HiGo MiniB for direct PAS or Torque Sensor when using 3rd party displays
The Stand Alone model is slightly wider than our regular Baserunner_L10 and does not fit inside downtube battery cradles. It has a long battery cable that exits on the back beside all the other cables, and is better waterproofed against the elements as it is fully epoxy potted.
A computer setup is required to configure this controller to a given motor, and this requires the USB->TTL communications cable if you don't already have one.
| Manufacturer | Grin |
|---|---|
| Country of Manufacture | Canada |
| Dimensions (L x W x H, mm) | 90 x 63 x 15 |
| Actual Weight (kg) | 0.18 |
| Max Regen Voltage (V) | 60 |
| Max Battery Amps (A) | 35 |
| Max Phase Amps (A) | 80 |
| Battery Range (V) | 20-60 |
| Low Voltage Cutoff (V) | Programmable |
| WP 8 Pin Cable Length (cm) | 15.5 |
| Main 9 Pin Cable Length (cm) | 16 |
| L1019 Motor Cable Length (cm) | 38 |
| 6 Pin HiGo Cable Length (cm) | 16.5 |
