ERider100-T17 BB with 4 Arm Spider

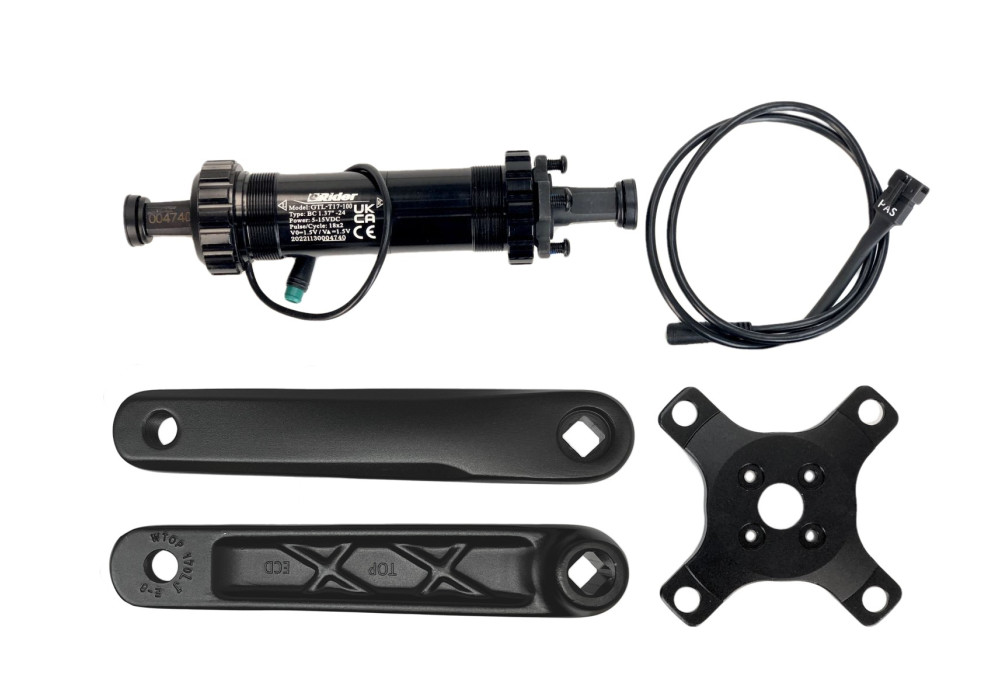

ERider-T17N Torque Sensor for 100mm BB Shells with 170mm Miranda Cranks and 4 Bolt 104mm BCD Chainring Spider. Side Cable Exit.

Chainrings Not Included.

USD$179.00
Availability: In stock
Only 5 left
SKU
BB-ERider100Q_4B

ERider torque sensor and crankset for 100mm wide bottom bracket shells (mostly fatbikes) with a 4 bolt 104mm spider, compatible with most triple chainrings found on mountain bikes. Unlike most other bottom bracket torque sensors, the ERider-T17N model has a cable exit from the side of the cartridge and does not require drilling a hole through the frame. This torque sensor accurately measures both left and right pedal torques and enables a very responsive PAS system. The 2 wire quadrature signal for the cadence sensing allows it to take advantage of the latest CA3 firmware which tracks back-pedal sensing for regenerative braking where applicable.

Includes 0 Q factor 170mm Miranda Cranks.

Chainrings are not included and would typically be moved over from the original crankset to this one during installation.

This sensor has an 18 pole 2 wire cadence sensor and a 1.5V - 3.5V output voltage that is proportional to crank torque with a scaling of 70 Nm/V. Includes 90cm long cable terminated with JST-SM connector, plug-and-play with V3 Cycle Analyst

NOTE: Certain ERider setups are succeptible to electrical noise from the controller causing intermittent cutout behavior. This can be solved by grounding the bicycle frame.



More Information
Country of Manufacture China
Actual Weight (kg) 1.06
Connector(s) Higo Signal C, JST-SM
PAS Poles 18
PAS Encoder Type 2 Wire (Quadrature)
Sensor Supply Voltage 5-15V
Torque Scale 70 Nm/V
Torque Sensor Offset Voltage 1.5V
