ERider100-T17 BB with 5 Arm Spider

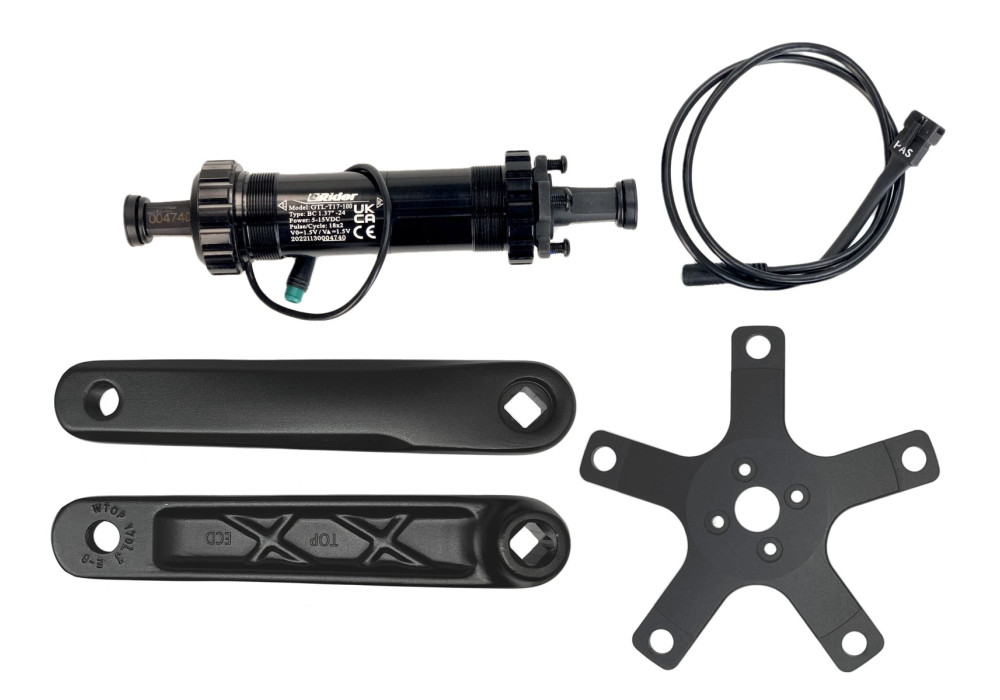

ERider-T17N Torque Sensor for 100mm BB Shells with 170mm Miranda Cranks and 5 Bolt 130mm BCD Chainring Spider. Side Cable Exit.
Chainrings Not Included.
ERider torque sensor and crankset for 100mm wide bottom bracket shells (mostly fatbikes) with a 5 bolt 130mm spider, a very common size compatible with many triple chainrings sets. Unlike most other bottom bracket torque sensors, the ERider-T17N model has a cable exit from the side of the cartridge and does not require drilling a hole through the frame. This torque sensor accurately measures both left and right pedal torques and enables a very responsive PAS system. The 2 wire quadrature signal for the cadence sensing allows it to take advantage of the latest CA3 firmware which tracks back-pedal sensing for regenerative braking where applicable.
Includes 0 Q factor 170mm Miranda Cranks.
Chainrings are not included and would typically be moved over from the original crankset to this one during installation.
This sensor has an 18 pole 2 wire cadence sensor and a 1.5V - 3.5V output voltage that is proportional to crank torque with a scaling of 70 Nm/V. Includes 90cm long cable terminated with JST-SM connector, plug-and-play with V3 Cycle Analyst
NOTE: Certain ERider setups are succeptible to electrical noise from the controller causing intermittent cutout behavior. This can be solved by grounding the bicycle frame.
|Country of Manufacture||China|
|Actual Weight (kg)||1.06|
|Connector(s)||Higo Signal C, JST-SM|
|PAS Encoder Type||2 Wire (Quadrature)|
|Sensor Supply Voltage||5-15V|
|Torque Scale||70 Nm/V|
|Torque Sensor Offset Voltage||1.5V|
