ERider73_4B

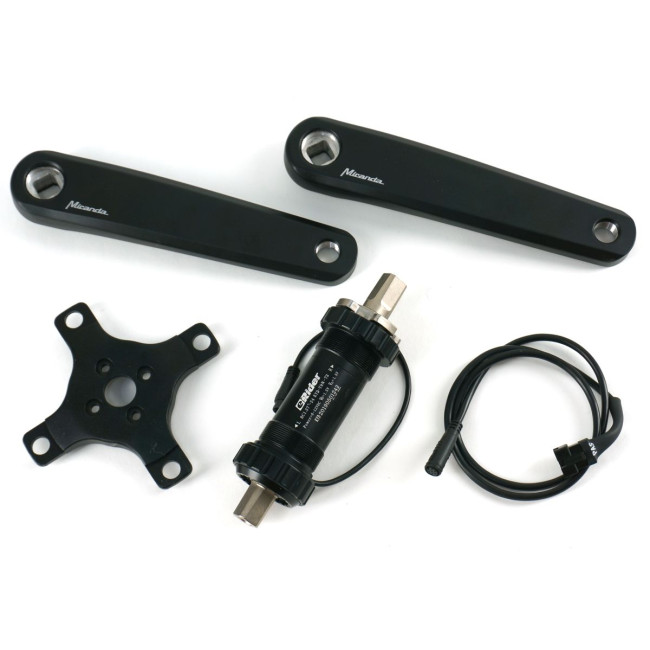

ERider-T9N Torque Sensor for 73mm BB Shells with 170mm Miranda Cranks and 4 Bolt 104mm BCD Chainring Spider. Side Cable Exit.
Chainrings Not Included
ERider torque sensor and crankset for 73mm wide bottom bracket shells with a 4 bolt 104mm spider, compatible with most triple chainrings found on mountain bikes. Unlike most other bottom bracket torque sensors, the ERider-T9N model has a cable exit from the side of the cartridge and does not require drilling a hole through the frame. This torque sensor accurately measures both left and right pedal torques and enables a very responsive PAS system.
Includes 0 Q factor 170mm Miranda Cranks.
Chainrings are not included and would typically be moved over from the original crankset to this one during installation.
This sensor has an 36 pole single wire cadence sensor and a 1.5V - 3.5V output voltage that is proportional to crank torque with a scaling of 70 Nm/V. Includes 90cm long cable terminated with JST-SM connector, plug-and-play with V3 Cycle Analyst
| Country of Manufacture | China |
|---|---|
| Actual Weight (kg) | 1.06 |
| Connector(s) | Higo Signal C, JST-SM |
| PAS Poles | 36 |
| PAS Encoder Type | Single Wire |
| Sensor Supply Voltage | 8-12V |
| Torque Scale | 70 Nm/V |
| Torque Sensor Offset Voltage | 1.5V |
