eZee20_L10

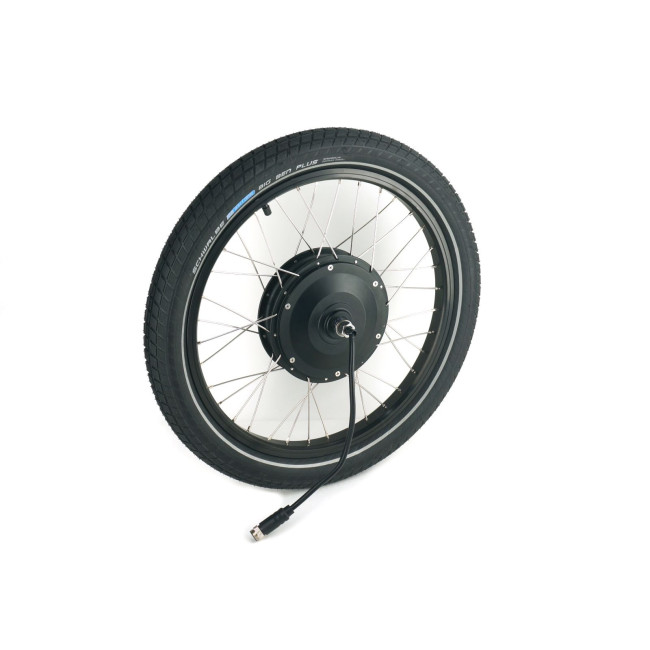

The new eZee Fast Wind Front Motor in 20" Rim, with Schwallbe Big Ben Plus 2.15" Tire. Includes the New L1019 Cable with Thermistor and Build-In Speed Sensor.

SKU

M-eZee20-L10

Additional Information

The New eZee Fast Wind Front Motor in 20" Rim, with Schwallbe Big Ben Plus 2.15" Tire. Includes the New L1019 Cable with Thermistor and Build-In Speed Sensor.

Specifications

More Information
Country of Manufacture	China
Actual Weight (kg)	4.25
Motor Nominal Wheel Size	20" (ISO 406
Motor Power Range (Watts)	500-1000
Motor KV (RPM / V)	11.1
Phase Resistance (Ohm)	0.038
Disk Brake Compatible	Yes
Connector(s)	L1019
Thermistor Style	10K NTC, B~3900
Axle Length (O.L.D.)	100
Axle Threads	M12 x 1.25mm
Rim Brake Compatible	Yes
Rim Width (mm)	29.5
Spoke Holes	36 Hole
Motor Type	Geared
Flange Spoke Diameter (mm)	173
Magnetic Pole Pairs (Phaserunner)	80
Speedo Poles (for CA)	6
Hysteresis Losses (N-m)	0.58
Eddie Losses (N-m / rad/sec)	0.039
Motor Inductance (H)	0.0001
