Canadian
eZee20R

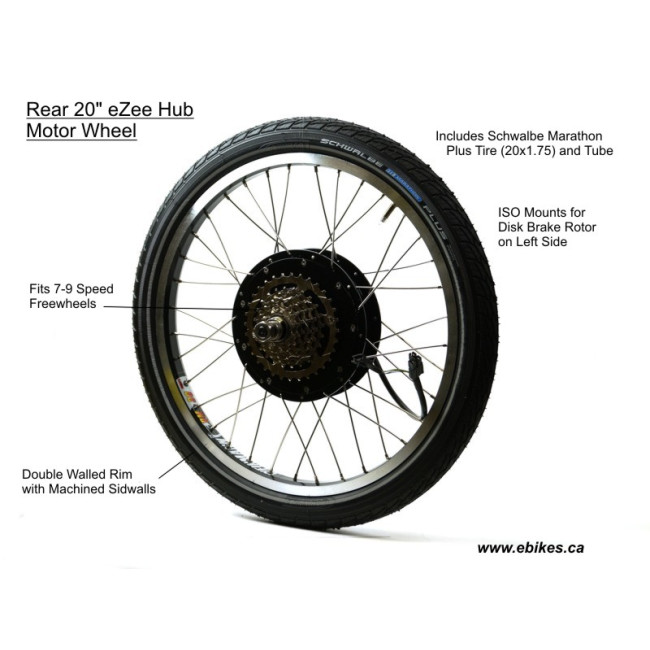

eZee V2 (350RPM) Rear Hub Motor in 20" Rim with Tube and 1.75" Tire
SKU
M-eZee20R
V2 eZee Fast Wind Rear Motor in 20" Rim, with Marathon Plus 1.75" Tire
| Country of Manufacture | China |
|---|---|
| Actual Weight (kg) | 6.5000 |
| Motor Nominal Wheel Size | 20" (ISO 406 |
| Motor Power Range (Watts) | 500-1000 |
| Motor KV (RPM / V) | 11.1 |
| Phase Resistance (Ohm) | 0.038 |
| Disk Brake Compatible | Yes |
| Connector(s) | Anderson, JST-SM |
| Axle Length (O.L.D.) | 135 |
| Axle Threads | M12 x 1.25mm |
| Rim Brake Compatible | Yes |
| Rim Width (mm) | 29.5 |
| Spoke Holes | 36 Hole |
| Motor Type | Geared |
| Flange Spoke Diameter (mm) | 173 |
| Magnetic Pole Pairs (Phaserunner) | 80 |
| Speedo Poles (for CA) | 1 |
| Hysteresis Losses (N-m) | 0.58 |
| Eddie Losses (N-m / rad/sec) | 0.039 |
| Motor Inductance (H) | 0.0001 |
