eZee700_L10

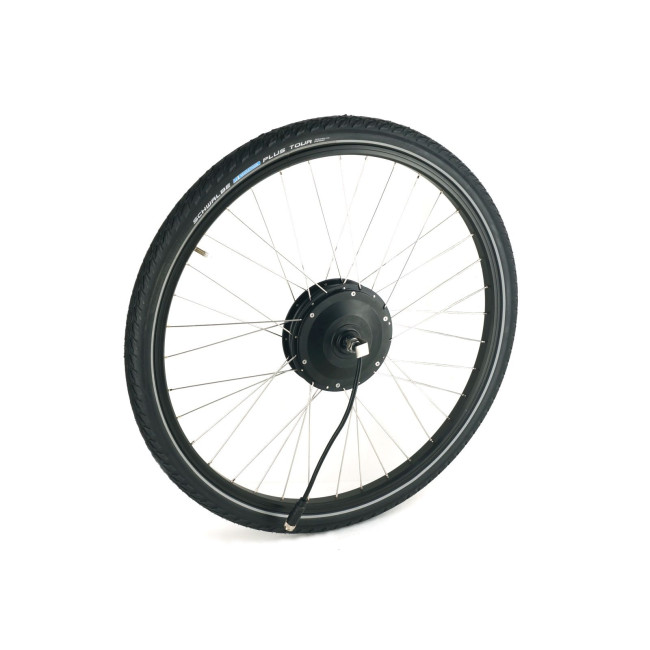

The new eZee Standard Wind Front Motor in 700c / 29er Rim, with Schwallbe Plus Tour 1.75" Tire. Includes the New L1019 Cable with Thermistor and Build-In Speed Sensor.
SKU
M-eZee700_L10
The new eZee Standard Wind Motor in 700c Rim, with Schwallbe Plus Tour 1.75" Tire. Includes the New L1019 Cable with Thermistor and Build-In Speed Sensor.
| Country of Manufacture | China |
|---|---|
| Actual Weight (kg) | 6.6000 |
| Motor Nominal Wheel Size | 700C (ISO 622) |
| Motor Power Range (Watts) | 500-1000 |
| Motor KV (RPM / V) | 8.1 |
| Phase Resistance (Ohm) | 0.075 |
| Disk Brake Compatible | Yes |
| Connector(s) | L1019 |
| Thermistor Style | 10K NTC, B~3900 |
| Axle Length (O.L.D.) | 100 |
| Axle Threads | M12 x 1.25mm |
| Rim Brake Compatible | Yes |
| Rim Width (mm) | 24 |
| Spoke Holes | 36 Hole |
| Motor Type | Geared |
| Flange Spoke Diameter (mm) | 173 |
| Magnetic Pole Pairs (Phaserunner) | 80 |
| Speedo Poles (for CA) | 6 |
| Hysteresis Losses (N-m) | 0.58 |
| Eddie Losses (N-m / rad/sec) | 0.039 |
| Motor Inductance (H) | 0.00015 |
