eZee Front Kit, Basic Throttle with JST connectors

Full front eZee Kit with Throttle Control and Optional V2 Cycle Analyst.

Full Product Information Page

From USD$515.00 Regular Price USD$725.00

To USD$822.00 Regular Price USD$1,032.00

In stock

SKU
KIT-eZeeF
Customize eZee Front Kit, Basic Throttle with JST connectors

* Required Fields

Your Customization
eZee Front Kit, Basic Throttle with JST connectors
eZee Front Kit, Basic Throttle with JST connectors

In stock

USD$515.00

Actual cruising speed/perfomance under any loading conditions is well modeled in our simulator. NEW! Launch Motor Simulator with eZee Front Kit, Basic Throttle with JST connectors

Summary
    eZee26
    Actual Weight (kg)
    6.6
    Motor MFG
    eZee
    Motor Nominal Wheel Size
    26" (ISO 559)
    Motor Power Range (Watts)
    500-1000
    Motor KV (RPM / V)
    8.1
    Phase Resistance (Ohm)
    0.075
    Disk Brake Compatible
    Yes
    Rim Brake Compatible
    Yes
    Rim Width (mm)
    23
    Spoke Holes
    36 Hole
    Flange Spoke Diameter (mm)
    173
    Magnetic Pole Pairs (Phaserunner)
    80
    Hysteresis Losses (N-m)
    0.58
    Eddie Losses (N-m / rad/sec)
    0.039
    eZee650
    Actual Weight (kg)
    6.6000
    Motor MFG
    eZee
    Motor Nominal Wheel Size
    650B (ISO 584)
    Motor Power Range (Watts)
    500-1000
    Motor KV (RPM / V)
    8.1
    Phase Resistance (Ohm)
    0.075
    Disk Brake Compatible
    Yes
    Rim Brake Compatible
    Yes
    Rim Width (mm)
    23
    Spoke Holes
    36 Hole
    Flange Spoke Diameter (mm)
    173
    Magnetic Pole Pairs (Phaserunner)
    80
    Hysteresis Losses (N-m)
    0.58
    Eddie Losses (N-m / rad/sec)
    0.039
    eZee700
    Actual Weight (kg)
    6.6000
    Motor MFG
    eZee
    Motor Nominal Wheel Size
    700C (ISO 622)
    Motor Power Range (Watts)
    500-1000
    Motor KV (RPM / V)
    8.1
    Phase Resistance (Ohm)
    0.075
    Disk Brake Compatible
    Yes
    Rim Brake Compatible
    Yes
    Rim Width (mm)
    24
    Spoke Holes
    36 Hole
    Flange Spoke Diameter (mm)
    173
    Magnetic Pole Pairs (Phaserunner)
    80
    Hysteresis Losses (N-m)
    0.58
    Eddie Losses (N-m / rad/sec)
    0.039
    C3625-EZ
    Actual Weight (kg)
    1
    Max Battery Amps (A)
    25
    C3625-EZ_R
    Actual Weight (kg)
    1.0800
    Max Battery Amps (A)
    25
    Phaserunner_MT
    Dimensions (L x W x H, mm)
    99 x 40 x 34
    Actual Weight (kg)
    0.26
    Max Battery Amps (A)
    50
    Phaserunner_MT_Bk
    Dimensions (L x W x H, mm)
    99 x 40 x 34
    Actual Weight (kg)
    0.26
    Max Battery Amps (A)
    50
    CA-DPS
    Actual Weight (kg)
    0.3000
    CA3-DPS
    Actual Weight (kg)
    0.31
    ETA
    Sep. 19, 2021
    More Information

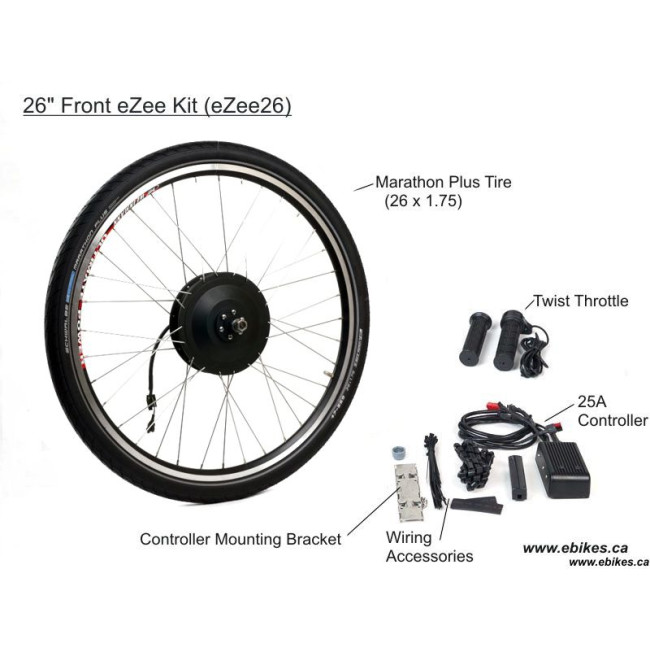

    Front eZee Conversion Kit. Includes high torque geared eZee hub motor laced in a quality rim, a Schwalbe Marathon Plus tire, 25A eZee controller, wiring accessories, your choice a throttle, and an optional V2 Cycle Analyst. This is our most popular kit for commuter cyclists.

    For a full explanation of the various drop-down choices and a comparison of this package versus other motor options, see our Grin Kits Info Page
