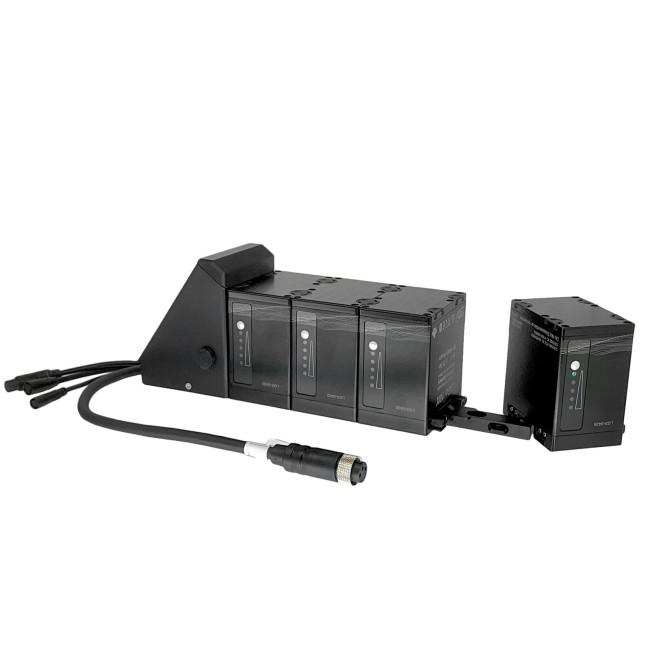

main product photo
Loading...

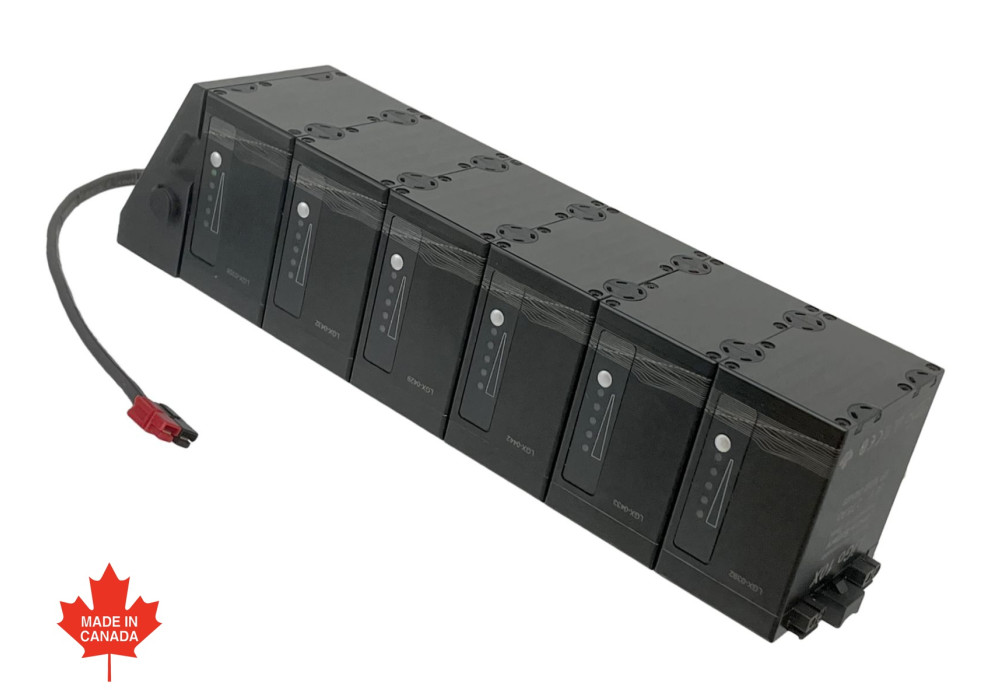

LiGo 10X Battery Pack

The travel-friendly ebike battery: LiGo 10X modules stack together for as much capacity as you need, then separate into under-100Wh packs you can carry onto a plane. This bundle covers the modules plus mounting options and chargers.

Click here for the full LiGo 10X info page

From USD$390.00

In stock

SKU
BUNDLE-LiGo10X
Add to Wish List Add to Compare
Customize LiGo 10X Battery Pack
36V LiGo 10X Battery

* Required Fields

Your Customization
LiGo 10X Battery Pack
LiGo 10X Battery Pack

In stock

USD$390.00

Summary

    LiGo 10X are 36V 99Wh lithium battery modules that can be stacked together in parallel to build up as large a battery as required, and separated into individual packs for transport aboard passenger aircraft or for reduced cost shipping.

    This bundle purchase page allows you to buy LiGo modules along with optional installation hardware and chargers in order to use a LiGo battery system on your ebike build.

    Note, if you are located in the USA and are interested in buying just the LiGo battery modules either by themselves or with a basic rail, we also have them available on our Amazon store.

    Specifications
    36V LiGo 10X Battery
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Full Charge Voltage
    42
    Capacity (Amp-Hours)
    2.75
    Internal Resistance (Ohms)
    0.40
    Cell Type
    LG
    Watt-hours at 1C Discharge
    99
    Dimensions (L x W x H, mm)
    55 x 78 x 89
    Actual Weight (kg)
    0.7
    Nominal Voltage
    36 Volt (10s)
    Battery Mount Location
    Frame Mount, Rear Rack
    Connector(s)
    XT60
    36V 2A XT60 Charger
    Country of Manufacture
    China
    Dimensions (L x W x H, mm)
    123 x 63 x 36
    Actual Weight (kg)
    0.4
    Connector(s)
    XT60
    Charger Voltage
    36V (42.0V max)
    Charge Port Connector
    XT60
    36V 4A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.58
    Connector(s)
    ST3
    Charger Voltage
    36V (42.0V max)
    Charge Port Connector
    ST3
    Satiator 12-63V, 0-8A with XT60M Adapter
    Actual Weight (kg)
    1.06
    Satiator 12-63V, 0-8A with ST3 Adapter
    Actual Weight (kg)
    1.06
    Roxim Rear R1 ELight
    Country of Manufacture
    Taiwan
    Lumens Output
    20
    Minimum Input Voltage (V)
    6
    Max Input Voltage (V)
    90
    Peak Input Power (Watts)
    5.5
    Light Source
    Red Cree XBD
    Connector / Jack
    DC 5.5x2.1mm
    Actual Weight (kg)
    0.0690
    C7 Plus, 3W 80 Lux Ebike Light
    Country of Manufacture
    China
    Minimum Input Voltage (V)
    6
    Max Input Voltage (V)
    58
    Peak Input Power (Watts)
    3
    Light Source
    OSRAM
    Connector / Jack
    DC5.5x2.1
    Actual Weight (kg)
    .088
    Handlebar Phone Mount and Charger
    Country of Manufacture
    China
    Minimum Input Voltage (V)
    12
    Max Input Voltage (V)
    95
    Connector / Jack
    5.5 x 2.1mm DC Jack
    Actual Weight (kg)
    0.165
    Output Voltage
    5V
    Output Current (A)
    2
    Adjustable Voltage 15A DC-DC Converter
    Minimum Input Voltage (V)
    20
    Max Input Voltage (V)
    85
    Actual Weight (kg)
    1.1
    Output Voltage
    Adjustable 2V-33V
    Output Current (A)
    15
    SPL-01 1900 Lumen Ebike Light
    Country of Manufacture
    China
    Lumens Output
    1900
    Minimum Input Voltage (V)
    12
    Max Input Voltage (V)
    60
    Turn-On Voltage (reduced power)
    8
    Peak Input Power (Watts)
    20
    Light Source
    Multiple LEDs
    Connector / Jack
    DC 5.5x2.1mm
    Actual Weight (kg)
    0.12
    More Information
    Product Attachments
    Grin Downtube Battery User Manual (1.02 MB)
    Battery Care Guide - Japanese(translated by a happy customer in Japan) (117.72 kB)
    LiGo10X 6x Baserunner Dock R0[3D .STEP] (2.98 MB)
    LiGo10X 6x Basic Dock R0[3D .STEP] (3.04 MB)
    LiGo10X 5x Basic Dock R0[3D .STEP] (2.96 MB)
    LiGo10X 5x Baserunner Dock R0[3D .STEP] (2.90 MB)
    LiGo10X 4x Basic Dock R0[3D .STEP] (2.92 MB)
    LiGo10X 4x Baserunner Dock R0[3D .STEP] (2.87 MB)
    LiGo10X 3x Basic Dock R0[3D .STEP] (2.87 MB)
    LiGo10X 3x Baserunner Dock R0[3D .STEP] (2.81 MB)
    LiGo10X 2x Basic Dock R0[3D .STEP] (2.86 MB)
    LiGo10X 2x Baserunner Dock R0[3D .STEP] (2.80 MB)
    LiGo 10X User Manual (Rev1.1) (2.71 MB)
    LiGo 10X Packs Mechanical Drawing D1[PDF] (424.31 kB)
    Ligo 10X Single Module File [3D .STEP] (10.75 MB)
    LiGo 10X Packs Mechanical Drawing D1[PDF] (424.31 kB)
    LiGo 10X Packs Mechanical Drawing D1[PDF] (424.31 kB)
    LiGo 10X Packs Mechanical Drawing D1[PDF] (424.31 kB)
    LiGo 10X Packs Mechanical Drawing D1[PDF] (424.31 kB)
    LiGo10X 6x Basic Dock R0[3D .STEP] (3.04 MB)
    LiGo10X 5x Basic Dock R0[3D .STEP] (2.96 MB)
    LiGo10X 4x Basic Dock R0[3D .STEP] (2.92 MB)
    LiGo10X 3x Basic Dock R0[3D .STEP] (2.87 MB)
    LiGo10X 2x Basic Dock R0[3D .STEP] (2.86 MB)
    LiGo10X 6x Baserunner Dock R0[3D .STEP] (2.98 MB)
    LiGo10X 5x Baserunner Dock R0[3D .STEP] (2.90 MB)
    LiGo10X 4x Baserunner Dock R0[3D .STEP] (2.87 MB)
    LiGo10X 3x Baserunner Dock R0[3D .STEP] (2.81 MB)
    LiGo10X 2x Baserunner Dock R0[3D .STEP] (2.80 MB)
    Satiator CAD Model [IGS] (9.64 MB)
    Satiator User Manual for 1.0X Firmware (1.20 MB)
    Satiator CAD Model [IGS] (9.64 MB)
    Satiator Brochure (1.55 MB)
    Satiator Charger User Manual [PDF] (4.28 MB)
    Roxim Rear Light Specifications (409.78 kB)
    MPPT_Solar_Charger_User_Manual (609.92 kB)
