M2707RD

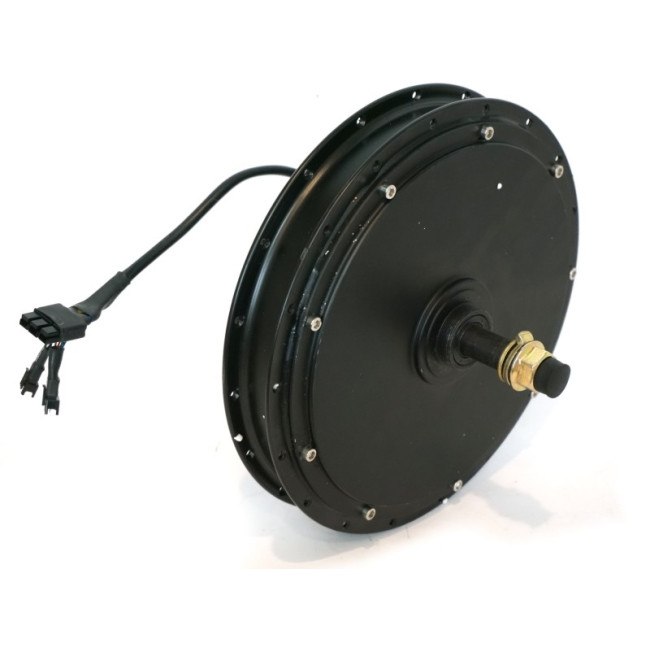

9C+ REAR 2707 Disk Compatible Motor with 0.35mm Laminations and Thermistor. 9 rpm/V for Standard 24"-700c Wheels.
SKU
M-M2707RD
Nine Continent 2707 Rear Hub Motor updated with 0.35mm Laminations for reduced rolling drag and higher peak efficiency. Includes 10K NTC thermistor for motor temperature sensing and thermal rollback with V3 Cycle Analyst. The 7 turn motor winding runs at 9 rpm/V unloaded.
| Country of Manufacture | China |
|---|---|
| Actual Weight (kg) | 6.16 |
| Motor Power Range (Watts) | 500-1000 |
| Motor KV (RPM / V) | 9.1 |
| Phase Resistance (Ohm) | 0.18 |
| Disk Brake Compatible | Mostly, requires axle spacer washer to 138mm OLD |
| Thermistor Style | 10K NTC, B~3900 |
| Axle Length (O.L.D.) | 135 |
| Spoke Holes | 36 Hole |
| Motor Type | Direct Drive |
| Flange Spoke Diameter (mm) | 232 |
| Magnetic Pole Pairs (Phaserunner) | 23 |
| Speedo Poles (for CA) | 23 |
| Hysteresis Losses (N-m) | 0.6 |
| Eddie Losses (N-m / rad/sec) | 0.0022 |
| Motor Inductance (H) | 0.00044 |
