M2807FD26

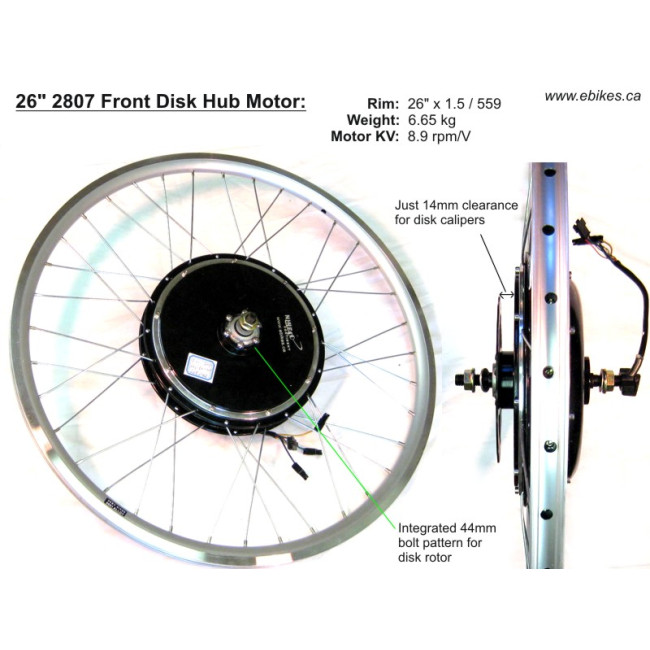

Nine Continent Front 2807 Disk Compatible Motor in 26 inch Rim
SKU
M-M2807FD26
SALE Nine Continent Front 2807 motor in 26 inch rim with disk brake mount
| Country of Manufacture | China |
|---|---|
| Actual Weight (kg) | 6.57 |
| Motor Nominal Wheel Size | 26" (ISO 559) |
| Motor Power Range (Watts) | 500-1000 |
| Motor KV (RPM / V) | 8.9 |
| Phase Resistance (Ohm) | 0.18 |
| Disk Brake Compatible | Partially, requires disk spacers and shims |
| Axle Length (O.L.D.) | 100 |
| Rim Brake Compatible | Yes |
| Rim Width (mm) | 24 |
| Spoke Holes | 36 Hole |
| Motor Type | Direct Drive |
| Flange Spoke Diameter (mm) | 232 |
| Magnetic Pole Pairs (Phaserunner) | 23 |
| Speedo Poles (for CA) | 23 |
| Hysteresis Losses (N-m) | 0.54 |
| Eddie Losses (N-m / rad/sec) | 0.0123 |
| Motor Inductance (H) | 0.00052 |
