M3525F

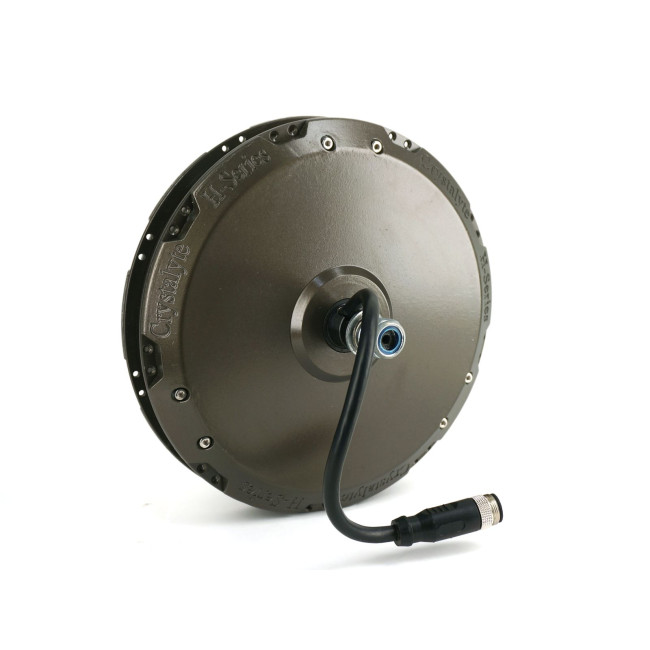

Crystalyte H3525 (7.1 rpm/V) UFO Front Motor, Hub Only, using L10 connector for Phase, Hall sensors and Thermistor. Paired Spoke holes.
SKU
M-M3525F
Crystalyte H3525 Front Motor, UFO Design, Hub Only, with hall sensors and thermistor and new L1019 waterproof plug
- 35mm wide stator and magnets
- Full 18mm of space from the disk boss to the side cover, allowing for compatibility with majority of disk calipers
- Statorade compatible with injection port on side cover
- Waterproof locking L1019 motor plug with Hall and Thermistor wires in single tidy connector
- Cable routing through the sides of the axle rather than the ends, better protects the cables from damage and easier to swap nuts, washers, and torque arms on the wire side
- Thermistor for temperature monitoring via the V3 Cycle Analyst
| Country of Manufacture | China |
|---|---|
| Actual Weight (kg) | 6.9 |
| Motor Power Range (Watts) | 600-1200 |
| Motor KV (RPM / V) | 7.1 |
| Phase Resistance (Ohm) | 0.225 |
| Disk Brake Compatible | Yes |
| Connector(s) | Anderson, JST-SM |
| Thermistor Style | 10K NTC, B~3900 |
| Axle Length (O.L.D.) | 100 |
| Axle Threads | 1/2" x 20 tpi |
| Spoke Holes | 36 Hole |
| Motor Type | Direct Drive |
| Flange Spoke Diameter (mm) | 232 |
| Magnetic Pole Pairs (Phaserunner) | 23 |
| Speedo Poles (for CA) | 23 |
| Hysteresis Losses (N-m) | 0.77 |
| Eddie Losses (N-m / rad/sec) | 0.0185 |
| Motor Inductance (H) | 0.0005 |
