M3525F26

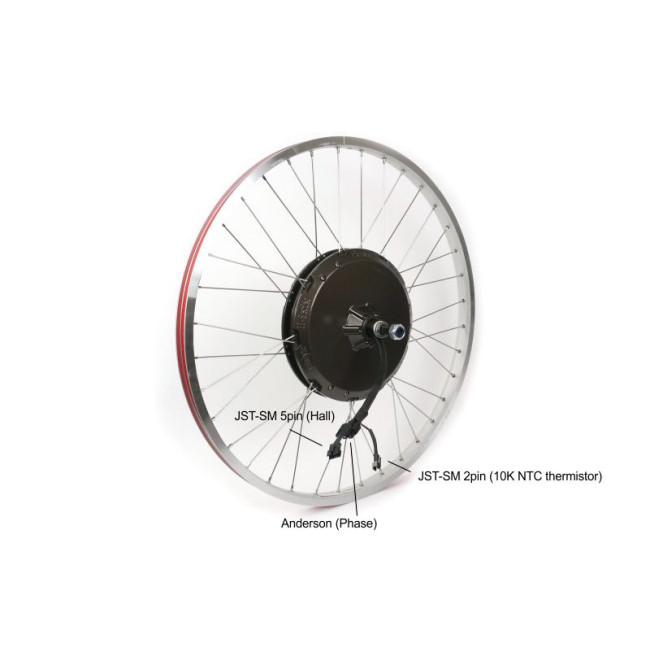

Crystalyte H3525 (7.1 rpm/V) UFO Front Hub Motor in 26" Wheel, with Hall Sensors
SKU
M-M3525F26
Crystalyte H3525 UFO Front Hub Motor in 26 inch wheel, with hall sensors
*new paired spoke design* "UFO"
- 35mm wide stator and magnets
- Full 18mm of space from the disk boss to the side cover, allowing for compatibility with majority of disk calipers
- Cable routing through the sides of the axle rather than the ends, better protects the cables from damage and easier to swap nuts, washers, and torque arms on the wire side
- Thermistor for temperature monitoring via the V3 Cycle Analyst
| Country of Manufacture | China |
|---|---|
| Actual Weight (kg) | 8.1200 |
| Motor Nominal Wheel Size | 26" (ISO 559) |
| Motor Power Range (Watts) | 600-1200 |
| Motor KV (RPM / V) | 7.1 |
| Phase Resistance (Ohm) | 0.225 |
| Disk Brake Compatible | Yes (with 2.5mm Spacer Washer) |
| Connector(s) | Anderson, JST-SM |
| Thermistor Style | 10K NTC, B~3900 |
| Axle Length (O.L.D.) | 100 |
| Rim Brake Compatible | No |
| Rim Width (mm) | 31 |
| Spoke Holes | 36 Hole |
| Motor Type | Direct Drive |
| Flange Spoke Diameter (mm) | 232 |
| Magnetic Pole Pairs (Phaserunner) | 23 |
| Speedo Poles (for CA) | 23 |
| Hysteresis Losses (N-m) | 0.77 |
| Eddie Losses (N-m / rad/sec) | 0.0185 |
| Motor Inductance (H) | 0.0005 |
