M3525R
Crystalyte H3525 (7.1 rpm/V) UFO Rear Motor, Hub Only, with hall sensors and thermistor
SKU
M-M3525R

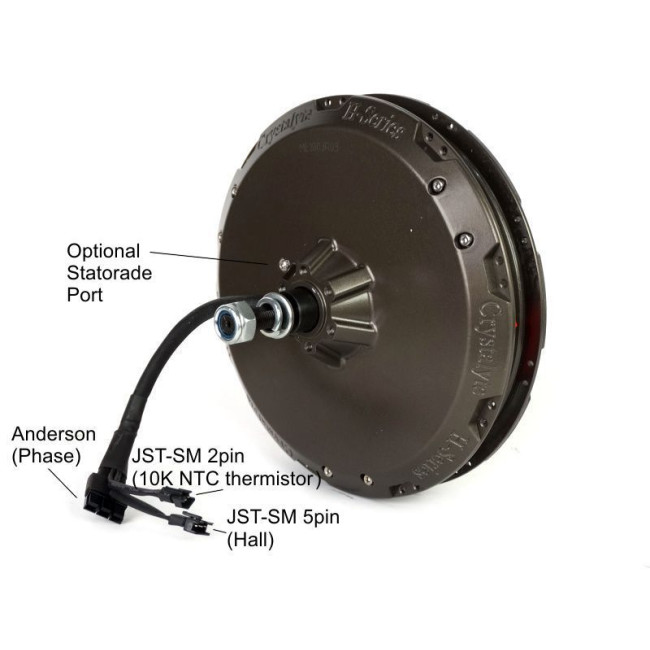

Crystalyte H3525 UFO Rear Motor, Hub Only, with hall sensors and thermistor
- 35mm wide stator and magnets
- Full 18mm of space from the disk boss to the side cover, allowing for compatibility with majority of disk calipers
- Cable routing through the sides of the axle rather than the ends, better protects the cables from damage and easier to swap nuts, washers, and torque arms on the wire side
- Thermistor for temperature monitoring via the V3 Cycle Analyst
| Country of Manufacture | China |
|---|---|
| Actual Weight (kg) | 6.9 |
| Motor Power Range (Watts) | 600-1200 |
| Motor KV (RPM / V) | 7.1 |
| Phase Resistance (Ohm) | 0.225 |
| Disk Brake Compatible | Yes |
| Axle Length (O.L.D.) | 138 |
| Spoke Holes | 36 Hole |
| Motor Type | Direct Drive |
| Flange Spoke Diameter (mm) | 232 |
| Magnetic Pole Pairs (Phaserunner) | 23 |
| Speedo Poles (for CA) | 23 |
| Hysteresis Losses (N-m) | 0.77 |
| Eddie Losses (N-m / rad/sec) | 0.0185 |
| Motor Inductance (H) | 0.0005 |
