M3540F

Crystalyte UFO (9.5 rpm/V) H3540 Front Motor, Unlaced, with L10 Connector for Phase, Hall Sensors and Thermistor
USD$300.00
Availability: Out of stock
SKU
M-M3540F

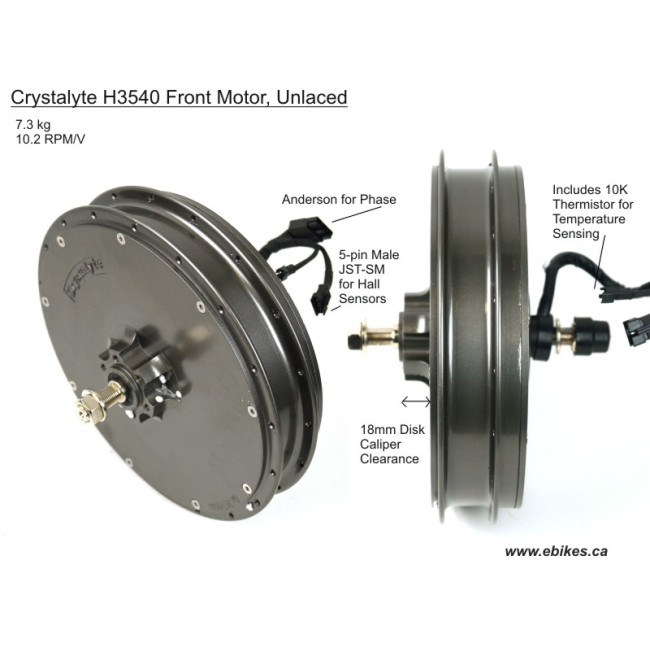

Crystalyte H3540 Front Motor, UFO Design, Hub Only, with hall sensors and thermistor and new L1019 waterproof plug
  • 35mm wide stator and magnets
  • Full 18mm of space from the disk boss to the side cover, allowing for compatibility with majority of disk calipers
  • Statorade compatible with injection port on side cover
  • Waterproof locking L1019 motor plug with Hall and Thermistor wires in single tidy connector
  • Cable routing through the sides of the axle rather than the ends, better protects the cables from damage and easier to swap nuts, washers, and torque arms on the wire side
  • Thermistor for temperature monitoring via the V3 Cycle Analyst
More Information
Country of Manufacture China
Actual Weight (kg) 6.9
Motor MFG Crystalyte
Motor Power Range (Watts) 600-1200
Motor KV (RPM / V) 9.5
Phase Resistance (Ohm) 0.123
Disk Brake Compatible Yes (with 2.5mm Spacer Washer)
Connector(s) L1019
Axle Length (O.L.D.) 100
Spoke Holes 36 Hole
Motor Type Direct Drive
Flange Spoke Diameter (mm) 232
Magnetic Pole Pairs (Phaserunner) 23
Speedo Poles (for CA) 23
Hysteresis Losses (N-m) 0.77
Eddie Losses (N-m / rad/sec) 0.0185
Motor Inductance (H) 0.0002
