M3548F

Crystalyte H3548 (13 rpm/V) UFO Front Motor, Unlaced, with Hall Sensors and Thermistor
SKU
M-M3548F

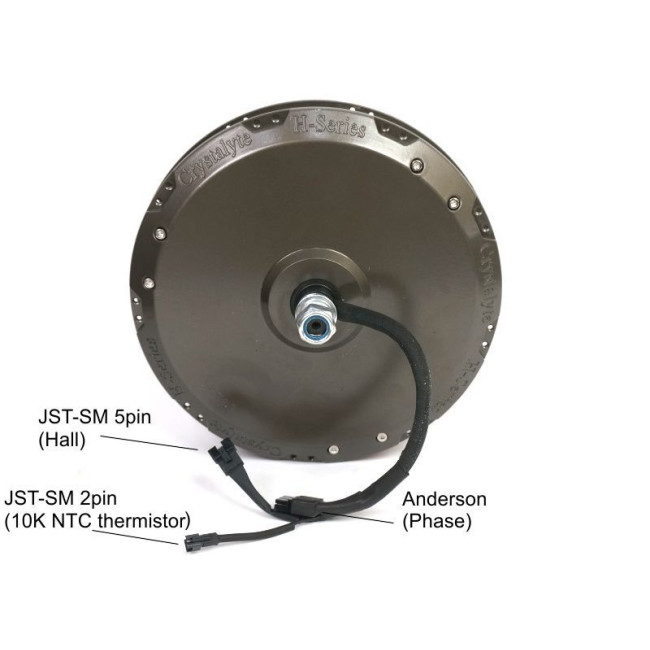

Crystalyte H3548 UFO Front Motor, Hub Only, with hall sensors and thermistor
  • 35mm wide stator and magnets
  • Full 18mm of space from the disk boss to the side cover, allowing for compatibility with majority of disk calipers
  • Cable routing through the sides of the axle rather than the ends, better protects the cables from damage and easier to swap nuts, washers, and torque arms on the wire side
  • Thermistor for temperature monitoring via the V3 Cycle Analyst
More Information
Country of Manufacture China
Actual Weight (kg) 6.9
Motor Power Range (Watts) 600-1200
Motor KV (RPM / V) 13
Phase Resistance (Ohm) 0.084
Disk Brake Compatible Yes (with 2.5mm Spacer Washer)
Axle Length (O.L.D.) 100
Axle Threads 1/2" x 20 tpi
Spoke Holes 36 Hole
Motor Type Direct Drive
Flange Spoke Diameter (mm) 232
Magnetic Pole Pairs (Phaserunner) 23
Speedo Poles (for CA) 23
Hysteresis Losses (N-m) 0.77
Eddie Losses (N-m / rad/sec) 0.0185
Motor Inductance (H) 0.00013
