MG310_700

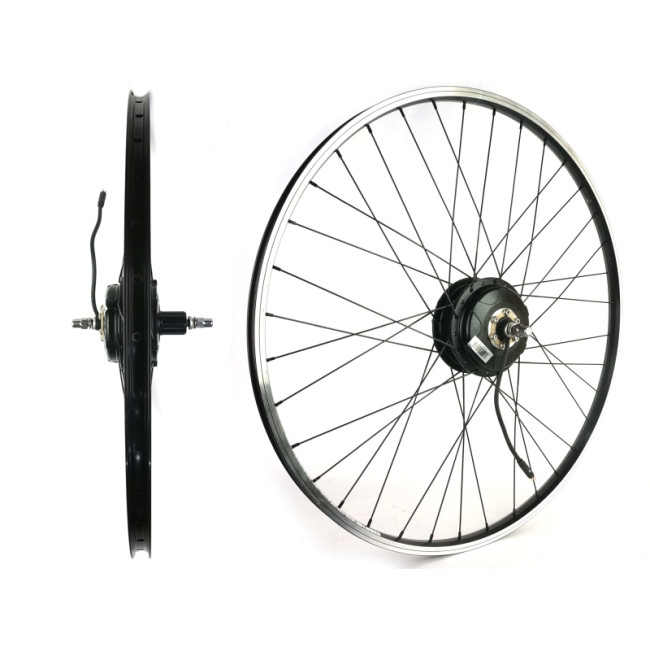

Bafang G310 Standard Wind (8.5 rpm/V) Geared Hub Motor Prelaced in 700c Alex DM18 Rim.
The Bafang G310 motor is a compact disk compatible 2.5kg rear hub with a nominal 250-350 watt power rating that works great for stealthy systems that do not require significant assist for steep hills or cargo. This motor includes an internal 6-pole speedeometer sensor so it can use a CA-DP device and not require an external speedo pickup. It has a spiral gears on the initial reduction of a double stage planetary gear and is exceptionally quiet for a geared motor. Uses a cassette freehub system rather than screw-on freewheel and features a side cable exit as well. This is our standard hub motor winding (8.5 rpm/V) prelaced in a 700c" Alex DM18 rim with Sapim single butted spokes.
Uses 9-pin overmolded Higo Z910 waterproof connector for the motor phase and hall wires. Including 6-pole speedometer. For more details, see the G31X Geared Motor Info Page
| Country of Manufacture | China |
|---|---|
| Actual Weight (kg) | 3.5 |
| Motor Nominal Wheel Size | 700C (ISO 622) |
| Motor Power Range (Watts) | 250-500 |
| Motor KV (RPM / V) | 8.5 |
| Phase Resistance (Ohm) | 0.124 |
| Disk Brake Compatible | Yes |
| Connector(s) | Z910 |
| Thermistor Style | 10K NTC, B ~3450 +10K pullup w/Speedo |
| Axle Length (O.L.D.) | 138 |
| Axle Threads | M12 x 1.25mm |
| Rim Brake Compatible | yes |
| Spoke Holes | 36 Hole |
| Motor Type | Geared |
| Flange Spoke Diameter (mm) | 123 |
| Magnetic Pole Pairs (Phaserunner) | 88 |
| Speedo Poles (for CA) | 6 |
| Hysteresis Losses (N-m) | 0.666 |
| Eddie Losses (N-m / rad/sec) | 0.015 |
| Motor Inductance (H) | 0.00021 |
