Canadian
MNSM13F16

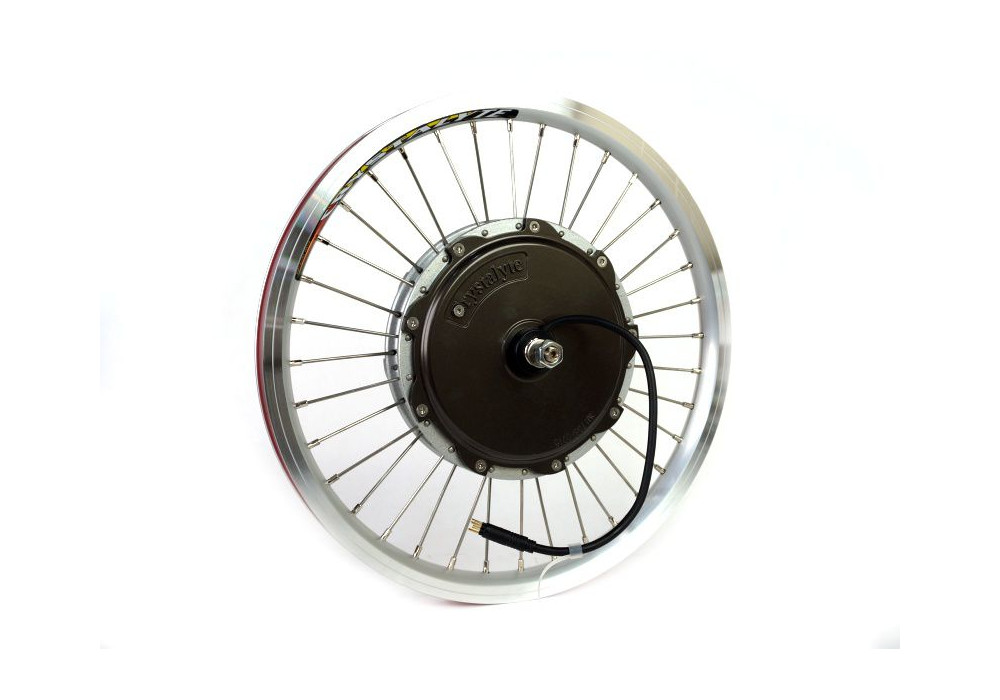

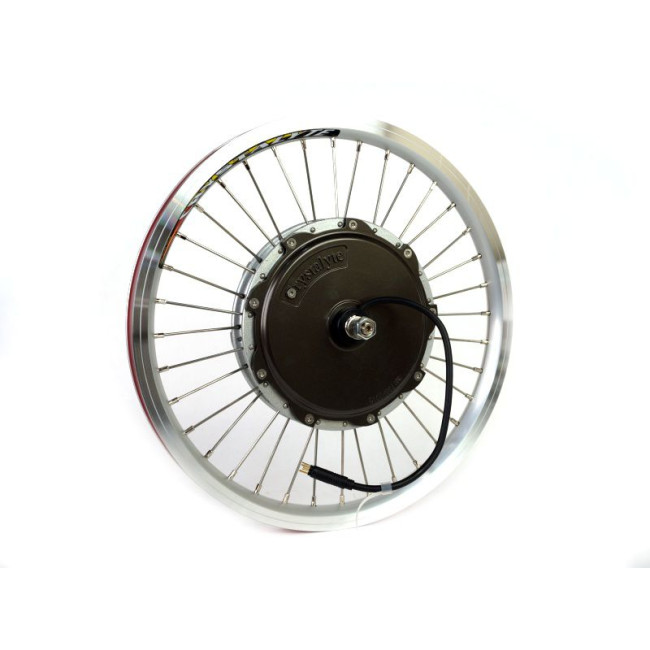

Crystalyte NSM Motor, Fast 13RPM/V Wind in 16'' ISO349 rim. 75mm Axle with 8mm Flats for Brompton
SKU
M-MSNM13F16
Crystalyte NSM Motor, Fast 13RPM/V Wind in 16'' rim. 8mm Axle meant for Bromton folding bikes.
| Country of Manufacture | China |
|---|---|
| Actual Weight (kg) | 3.2 |
| Motor Nominal Wheel Size | 16" (ISO 349) |
| Motor Power Range (Watts) | 250-500 |
| Motor KV (RPM / V) | 13.9 |
| Phase Resistance (Ohm) | 0.41 |
| Disk Brake Compatible | No |
| Axle Length (O.L.D.) | 75 |
| Rim Brake Compatible | Yes |
| Rim Width (mm) | 24 |
| Spoke Holes | 36 Hole |
| Motor Type | Direct Drive |
| Flange Spoke Diameter (mm) | 144 |
| Magnetic Pole Pairs (Phaserunner) | 20 |
| Speedo Poles (for CA) | 20 |
| Hysteresis Losses (N-m) | 0.52 |
| Eddie Losses (N-m / rad/sec) | 0.002 |
| Motor Inductance (H) | 0.0005 |
