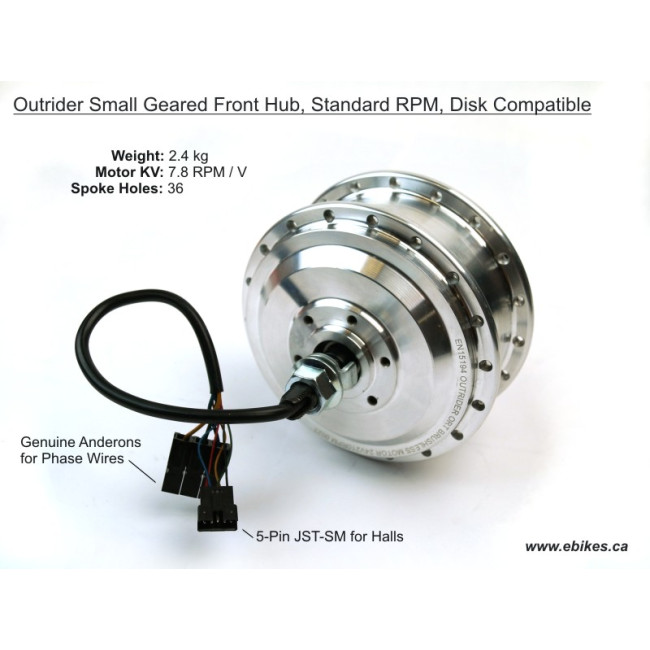

Outrider Standard RPM Small Geared Front Hub Motor, Unlaced, suitable for 24", 26", and 700c wheels
SKU
M-MOutrider_Std
Standard RPM Small Geared Front Hub Motor
The Outrider motor is a compact 2.4kg hub with a nominal 250 watt power rating that works great for stealthy systems that do not require signficant assist for steep hills or cargo. In general it is suitable for 15A to 20A controllers max.
Genuine Anderson connectors for phase wires.
5 pin JST-SM series for hall sensors.
| Country of Manufacture | China |
|---|---|
| Actual Weight (kg) | 2.44 |
| Motor Power Range (Watts) | 250-500 |
| Motor KV (RPM / V) | 8 |
| Phase Resistance (Ohm) | 0.284 |
| Disk Brake Compatible | Partially, requires disk spacers and shims |
| Axle Length (O.L.D.) | 100 |
| Spoke Holes | 36 Hole |
| Motor Type | Geared |
| Flange Spoke Diameter (mm) | 118 |
| Magnetic Pole Pairs (Phaserunner) | 43 |
| Speedo Poles (for CA) | 6 |
| Hysteresis Losses (N-m) | 0.46 |
| Eddie Losses (N-m / rad/sec) | 0.015 |
| Motor Inductance (H) | 0.00046 |
