Canadian
MSOFP16

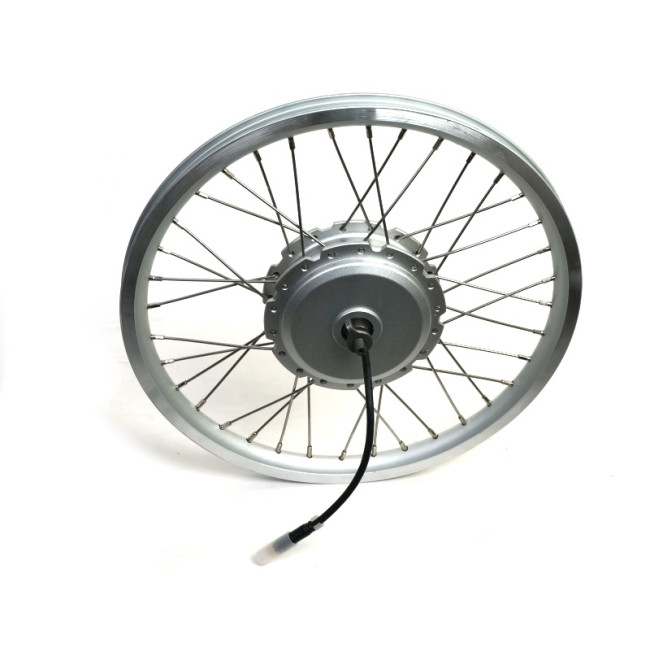

Geared Narrow Motor in 16'' rim. 8mm x 75mm Axle for Brompton Folding Bikes.
Note: Last of the available wheels have either, or a combination of running noises, cosmetic scratching and markings.
SKU
M-MSOFP16
Geared Narrow Motor in 16'' rim. 8mm Axle 75mm long meant for Brompton bike conversions.
Note: Last of the available wheels have either, or a combination of running noises, cosmetic scratching and markings.
| Country of Manufacture | China |
|---|---|
| Actual Weight (kg) | 1.8 |
| Motor Nominal Wheel Size | 16" (ISO 349) |
| Motor Power Range (Watts) | 250-500 |
| Motor KV (RPM / V) | 13.4 |
| Phase Resistance (Ohm) | 0.182 |
| Disk Brake Compatible | No |
| Connector(s) | Z910 |
| Thermistor Style | 10K NTC, B~3450 w/Speedo |
| Axle Length (O.L.D.) | 75 |
| Axle Threads | M10 x 1.0mm |
| Rim Brake Compatible | Yes |
| Rim Width (mm) | 24 |
| Spoke Holes | 36 Hole |
| Motor Type | Geared |
| Magnetic Pole Pairs (Phaserunner) | 48 |
| Speedo Poles (for CA) | 6 |
