MSTOKE_CL

Stoke Monkey Motor, Clyte SAW405, 8.6 RPM/V
Regular Price USD$295.00 Special Price USD$155.00
Availability: Out of stock
SKU
SMP-MSTOKE_CL

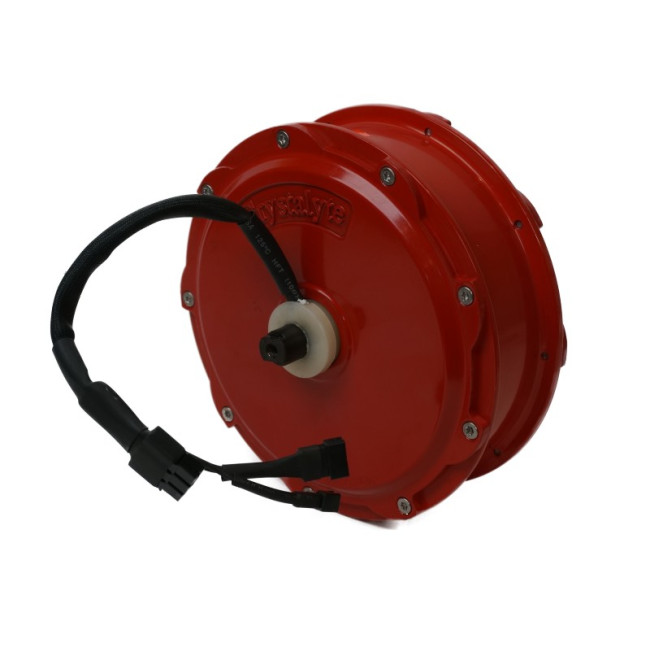

Crystalyte SAW405 Stoke Monkey Motor, 8.6 RPM/V

This is a new Stokemonkey Motor from Crysalyte based on their SAW motor series, and it uses the same axle design with internal M6 bolt threads as the original 400 series Stokemonkey motors. If doing a custom bracket, it is essential to make it from steel between 5-6mm thick, and to provide a tight fitting and deep 10mm axle slot. The wire side of the axle has a groove that results in minimal contact surface with the inside of the bracket, and so most of the spinout retention comes from the freewheel side axle only.

For more information please see the Stokemonkey page

More Information
Actual Weight (kg) 5.0400
Manufacturer Crystalyte
Motor Power Range (Watts) 500-1000
Motor KV (RPM / V) 8.7
Phase Resistance (Ohm) 0.29
Axle Length (O.L.D.) 120
Spoke Holes 36 Hole
Motor Type Direct Drive
Magnetic Pole Pairs (Phaserunner) 20
Speedo Poles (for CA) 20
Hysteresis Losses (N-m) 0.49
Eddie Losses (N-m / rad/sec) 0.01
Motor Inductance (H) 0.00085
