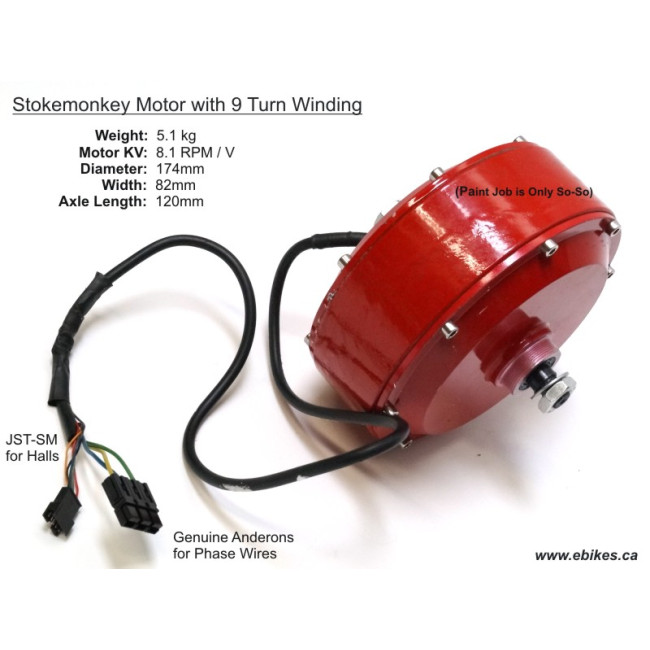

Stoke Monkey Motor Standard 9T Winding, 8.2 RPM/V *NOTE. Hubs have cosmetic paint imperfections.
SKU
SMP-MSTOKE09
Stoke Monkey Standard 9T Winding, 8.1 RPM/V
The motors will fit in the original Stokemonkey brackets and can replace the Crysalyte 407 motors that were used previously. If doing a custom bracket, it is essential to make it from steel between 5-6mm thick, and to provide a tight fitting and deep 10mm axle slot. The wire side of the axle has a groove that results in minimal contact surface with the inside of the bracket, and so most of the spinout retention comes from the freewheel side axle only.
For more information please see the Stokemonkey page
| Country of Manufacture | China |
|---|---|
| Actual Weight (kg) | 5.04 |
| Motor Power Range (Watts) | 500-1000 |
| Motor KV (RPM / V) | 8.2 |
| Phase Resistance (Ohm) | 0.31 |
| Spoke Holes | 36 Hole |
| Magnetic Pole Pairs (Phaserunner) | 20 |
| Speedo Poles (for CA) | 1 |
| Hysteresis Losses (N-m) | 0.49 |
| Eddie Losses (N-m / rad/sec) | 0.01 |
| Motor Inductance (H) | 0.00085 |
