MTC3080R_TA

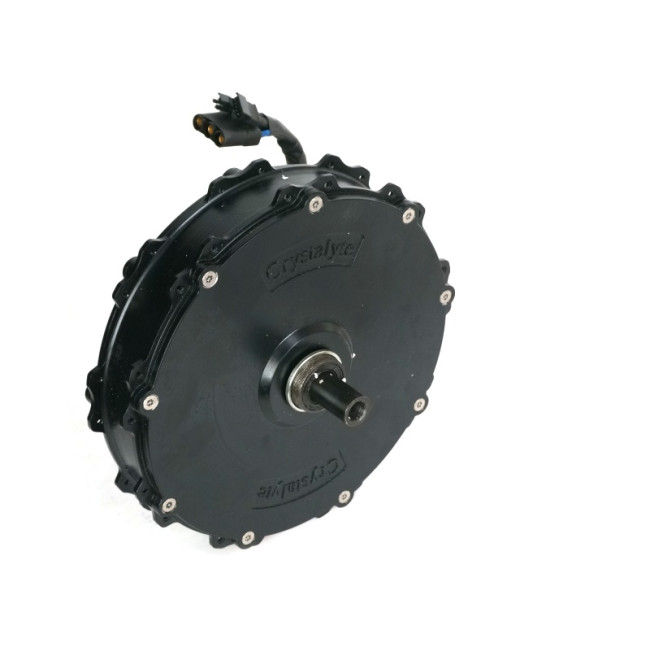

Crystalyte The Crown motor wiith 142 x 12 Thru Axle, Standard 3080 Wind, Unlaced, 30mm Magnets and Stator, with Hall Sensors and Thermistor
SKU
M-MTC3080R
Crystalyte Crown TC3080 Motor, new deign with 142 x 12 mm thru axle and integrated torque arm. One of the first rear motors available on the market compatible with rear thru-axles.
Unlaced Hub with paired spoke holes on the flange. Flange design accommodates J-bend type spokes.
| Actual Weight (kg) | 7.45 |
|---|---|
| Country of Manufacture | China |
| Motor Power Range (Watts) | 1000-2000 |
| Motor KV (RPM / V) | 9.9 |
| Phase Resistance (Ohm) | 0.12 |
| Disk Brake Compatible | Yes |
| Connector(s) | Anderson, JST-SM |
| Axle Length (O.L.D.) | 142 |
| Spoke Holes | 36 Hole |
| Motor Type | Direct Drive |
| Flange Spoke Diameter (mm) | 230 |
| Magnetic Pole Pairs (Phaserunner) | 23 |
| Speedo Poles (for CA) | 23 |
| Hysteresis Losses (N-m) | 1.1 |
| Eddie Losses (N-m / rad/sec) | 0.018 |
| Motor Inductance (H) | 0.0003 |
