MX3005RC

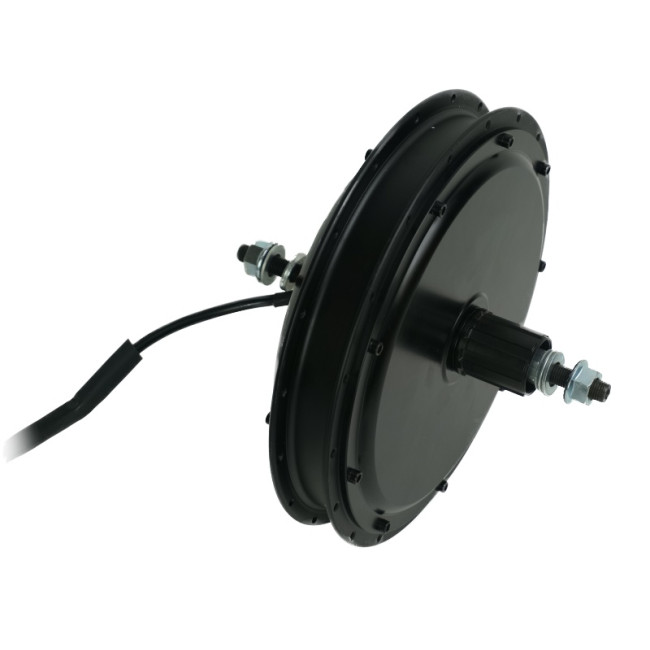

MXUS Rear Cassette Motor, Statorade Ready and Disk Compatible with 0.35mm Laminations and Thermistor. Fast 11 rpm/V Winding.
SKU
M-MX3005RC
MXUS Rear Hub Motor, 30mm wide stator with 0.35mm laminations for reduced rolling drag and higher peak efficiency. Uses modern cassette freehub system rather than screw-on freewheel. Includes 10K NTC thermistor for motor temperature sensing and thermal rollback with V3 Cycle Analyst, sealed side plates with Statorade injection port via disk rotor hole. The 5 turn motor winding runs at a fast 11 rpm/V unloaded and is well suited for smaller 20" wheel builds. Includes one 2.5mm aluminum diskspacer and one 5mm stainless steel washer.
| Actual Weight (kg) | 6.4 |
|---|---|
| Country of Manufacture | China |
| Motor Power Range (Watts) | 600-1200 |
| Motor KV (RPM / V) | 11.1 |
| Phase Resistance (Ohm) | 0.116 |
| Disk Brake Compatible | Yes, although space between disk rotor and side cover is limited (15.5mm), spacers and/or large diameter rotor may be required |
| Connector(s) | Anderson, JST-SM |
| Axle Length (O.L.D.) | 138 |
| Spoke Holes | 36 Hole |
| Motor Type | Direct Drive |
| Flange Spoke Diameter (mm) | 231 |
| Magnetic Pole Pairs (Phaserunner) | 23 |
| Speedo Poles (for CA) | 23 |
| Hysteresis Losses (N-m) | 0.7 |
| Eddie Losses (N-m / rad/sec) | 0.0025 |
| Motor Inductance (H) | 0.00027 |
