NCTE_120

NCTE Square Taper Torque Sensor (Similar to THUN), Standard Length 120mm Spindle Suitable for Most Bikes.
SKU
BB-NCTE_120

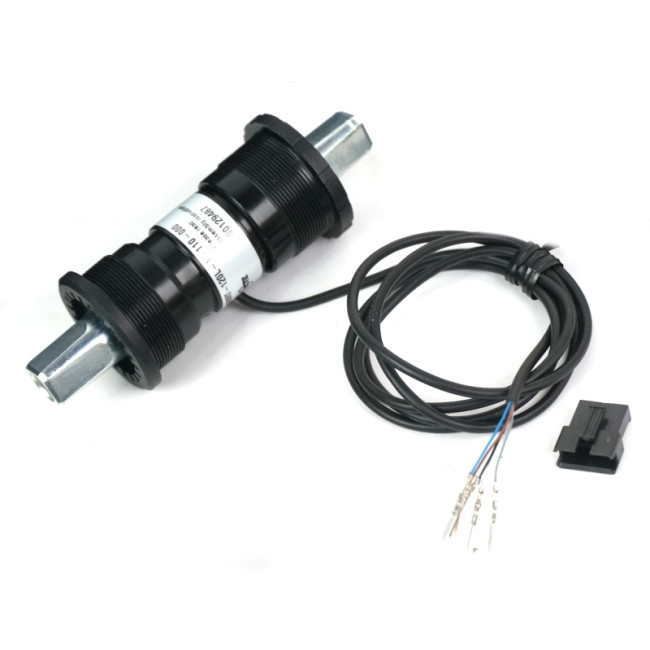

NCTE square taper torque sensing bottom bracket, 120L/119mm spindle fits majority of bike frames. Terminated with male JST pins to plug directly to the V3 CA with no extra cable harness.

This torque sensing bottom bracket has the same specifications as the THUN sensors, with an 8-pole cadence sensor and measures the actual torque across the spindle. It gives the most accurate human power statistics but it only senses the left pedal force, so there can be some delay in pedalec assistance if you start from a standstill pushing on the right crank.

For more information on torque sensors, see our Advanced PAS Kit Info Page

More Information
Country of Manufacture Germany
Actual Weight (kg) 0.3300
Connector(s) JST-SM
PAS Poles 16
PAS Encoder Type 2 Wire (Quadrature)
Sensor Supply Voltage 10-16V
Torque Scale -200 Nm/V
Torque Sensor Offset Voltage 2.5V
