Amber Amp towing Cochise Caravan

United States, Arizona, Cochise County, Sierra Vista

Published: 2025-03-10

Tadpole Trike

Grin All-Axle

Trailer

Multi-Motor

Powerful

Custom Greenspeed Magnum XL with dual Grin All-Axle Hubs, Cycle Analyst, V6 Phaserunners, and ERider Torque Sensors nicknamed "Amber Amp". Amber Amp tows a custom Bikes at Work Trailer (nicknamed "Cochise Caravan") modified with turn signals, flashing lights, running lights and spotlights. Built for short and long duration camping tours across the USA. Regenerative braking provides awesome braking power as well as extending the range.

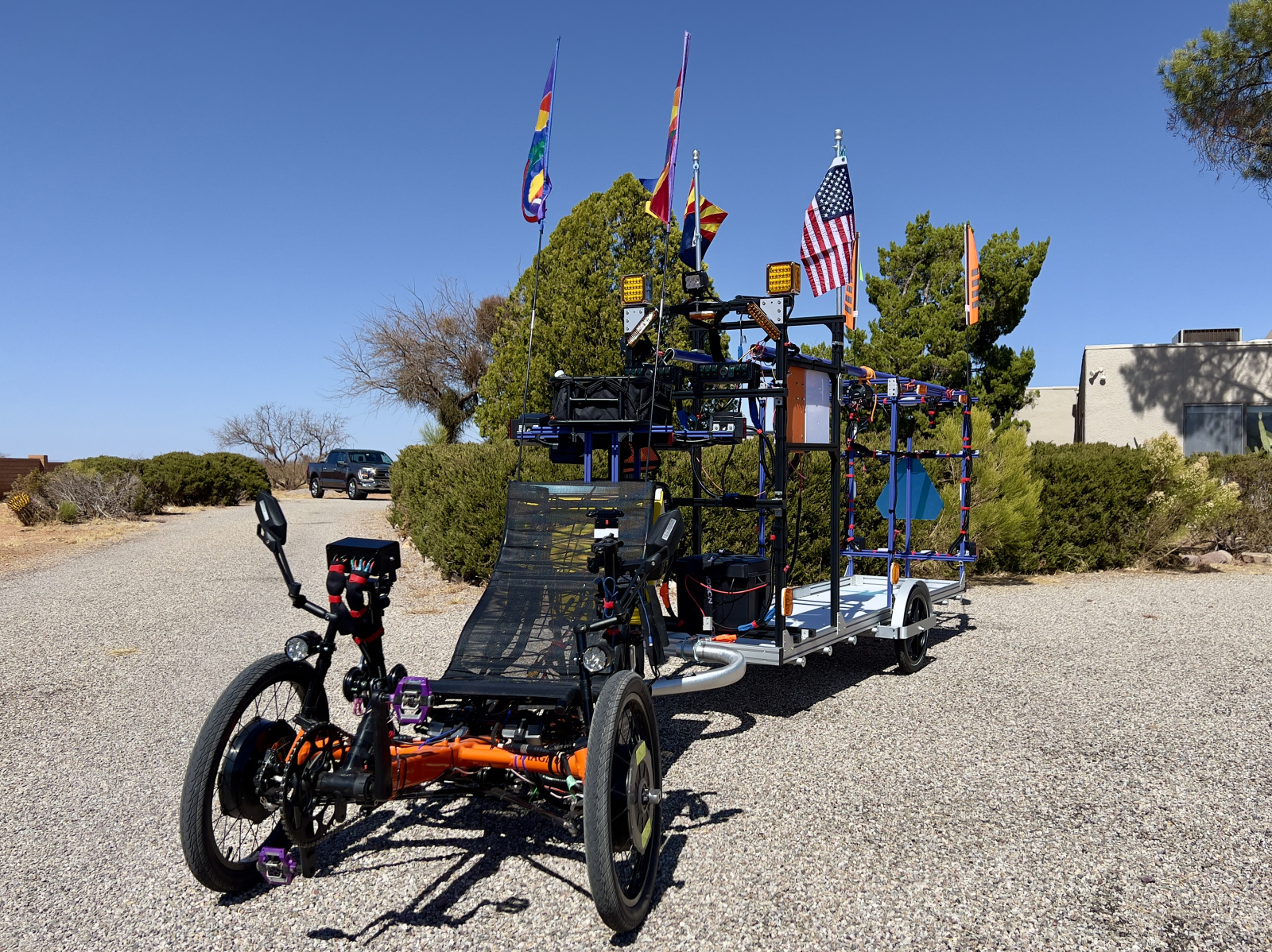

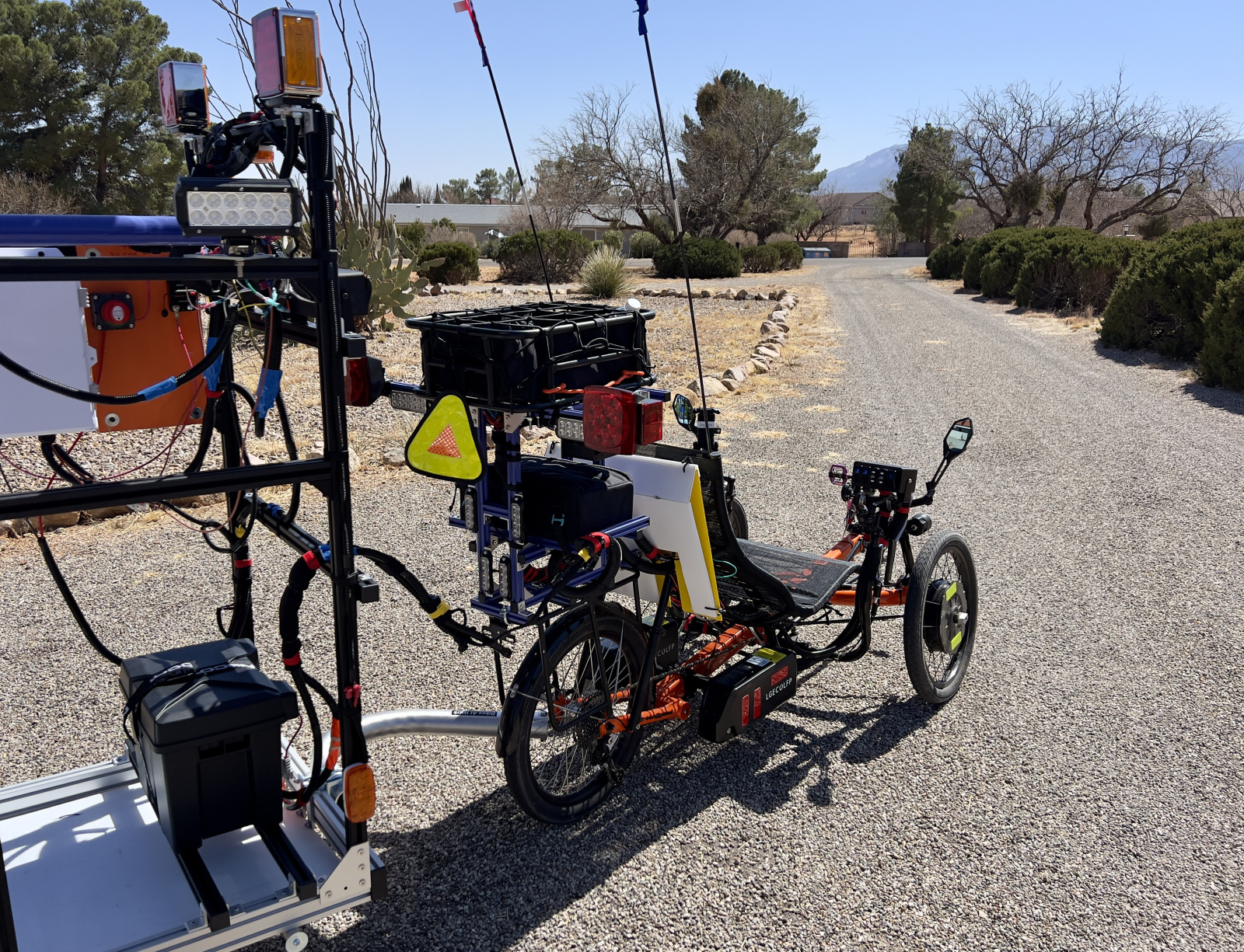

Note the dual Grin All-Axle Hub Motors. Cycle Analyst is on the driver's left. Switches for turning signals and flashers are on the right. Also has dual headlights. — Amber Amp towing Cochise Caravan

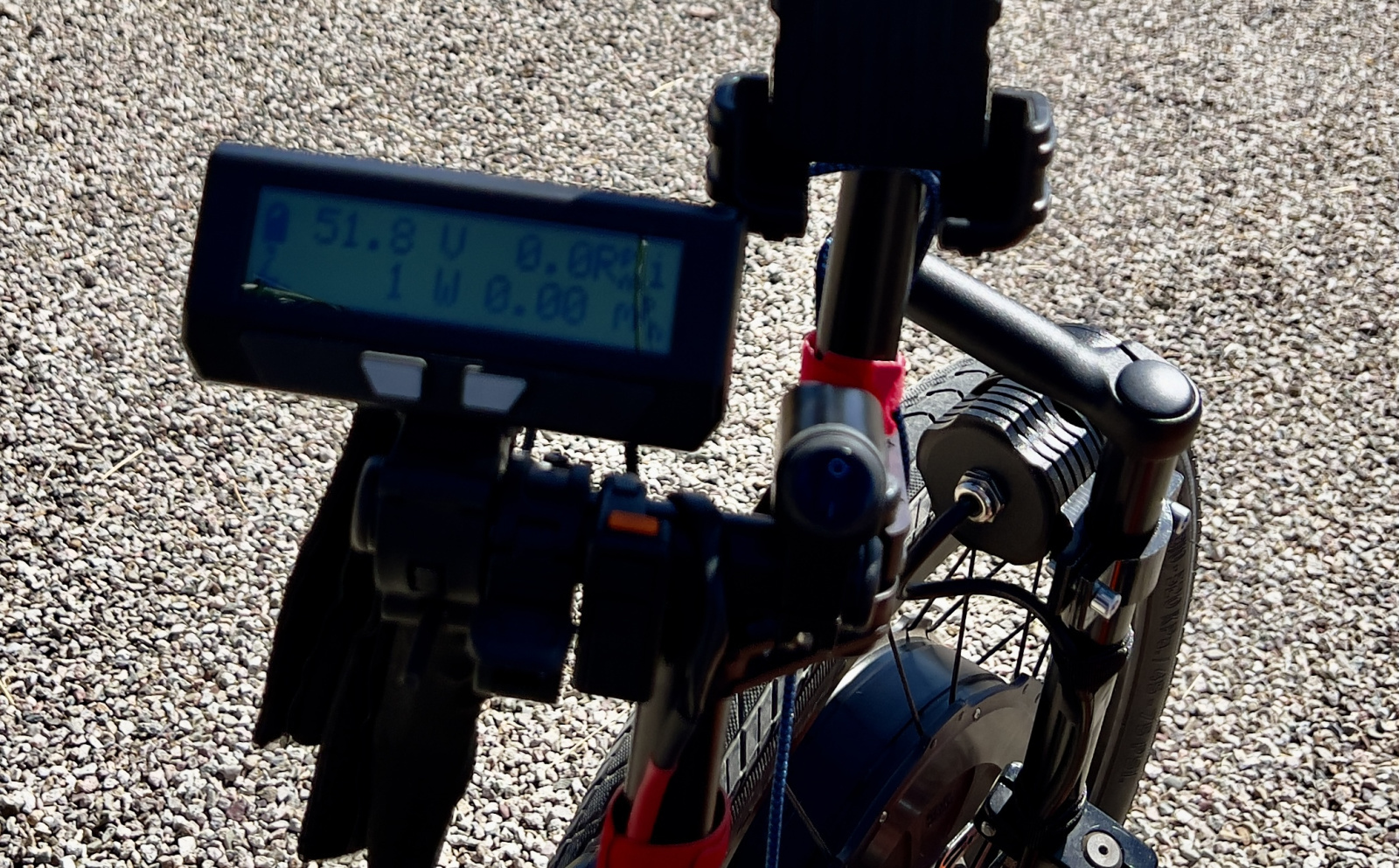

The left side of the — Amber Amp Cycle Analyst Mount

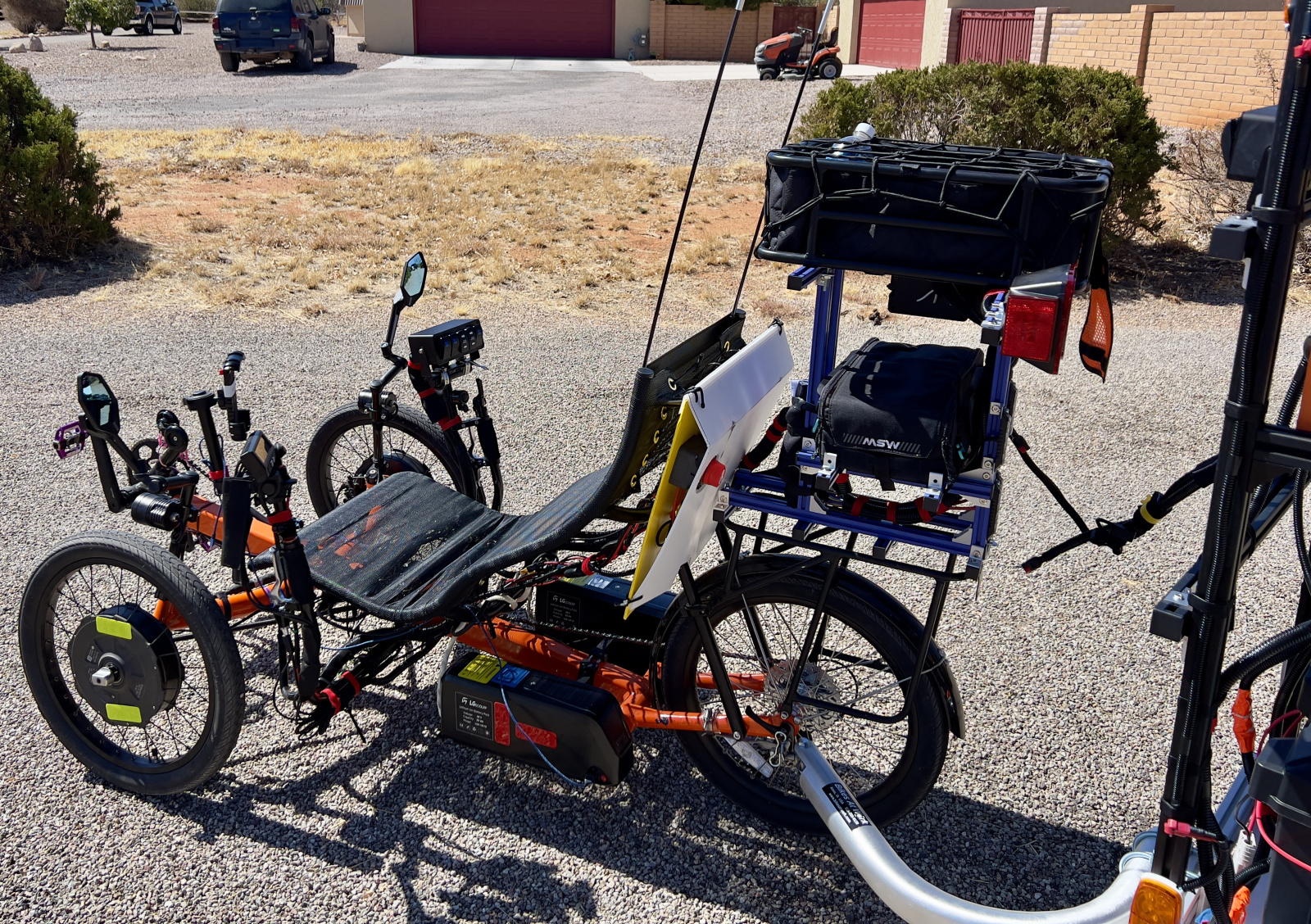

Two LGecolfp 48 vlot 20 amp hour lithium ion batteries power Amber Amp. Just running the trike I get about 125 to 145 mile range. Note the custom rack made from 2020 T-Slot extruded aluminum. T-Cycle mounts hold the batteries. — Amber Amp Batteries

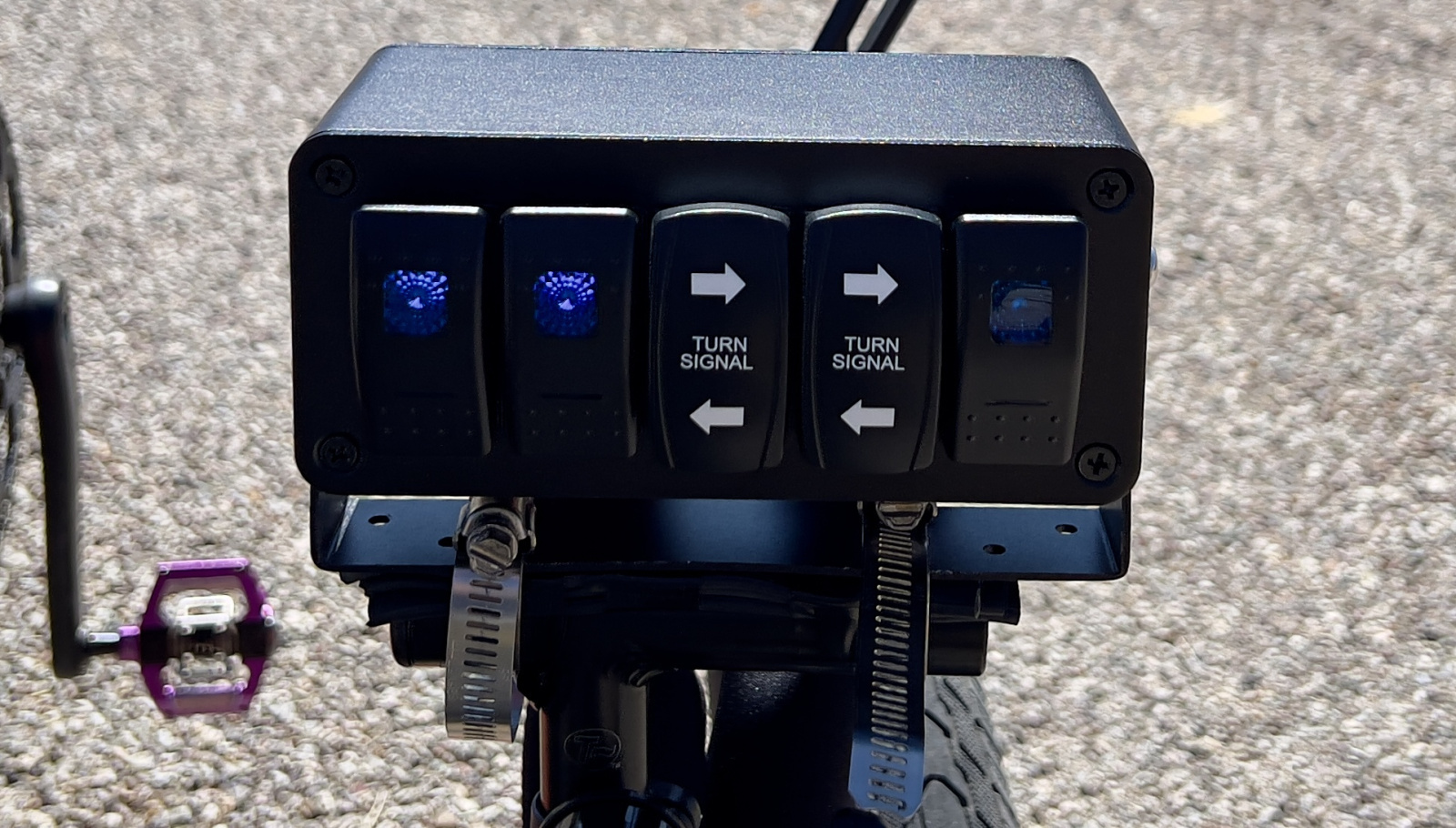

This custom rocker switch box controls Amber Amps flashers, running lights, and turn signals. The right two switches are powered from Cochise Caravan and control the turning signals and turn signal running lights. — Amber Amp Custom Switch Box

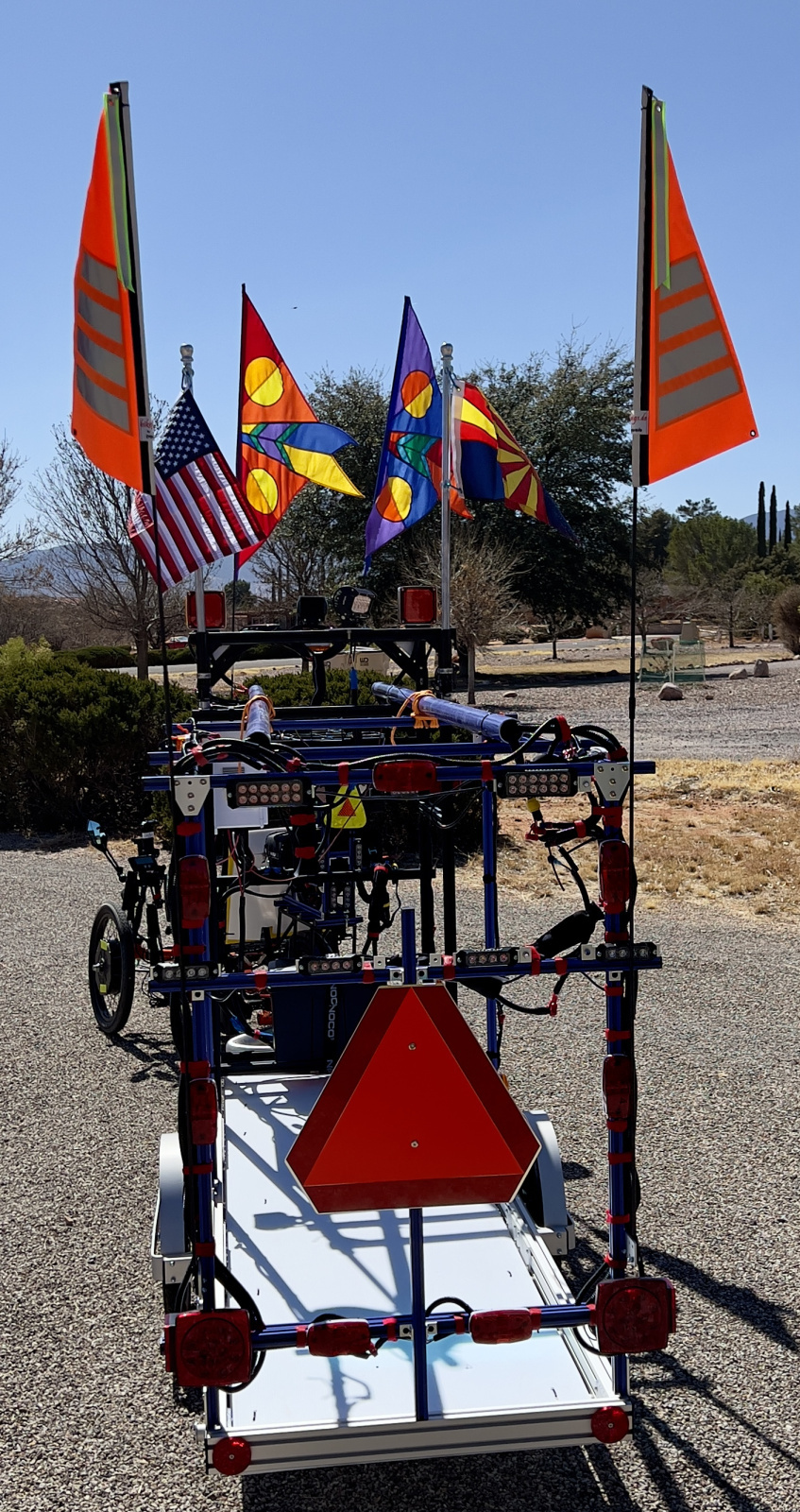

There are red running lights, turn signals, and flashers. There are two big red flashers, two small red flashers, and two small blue flashers. Modes are controlled by push bottoms noticeable on the right side. Note turn signals up high on the front of the trailer. — Cochise Caravan is visible!

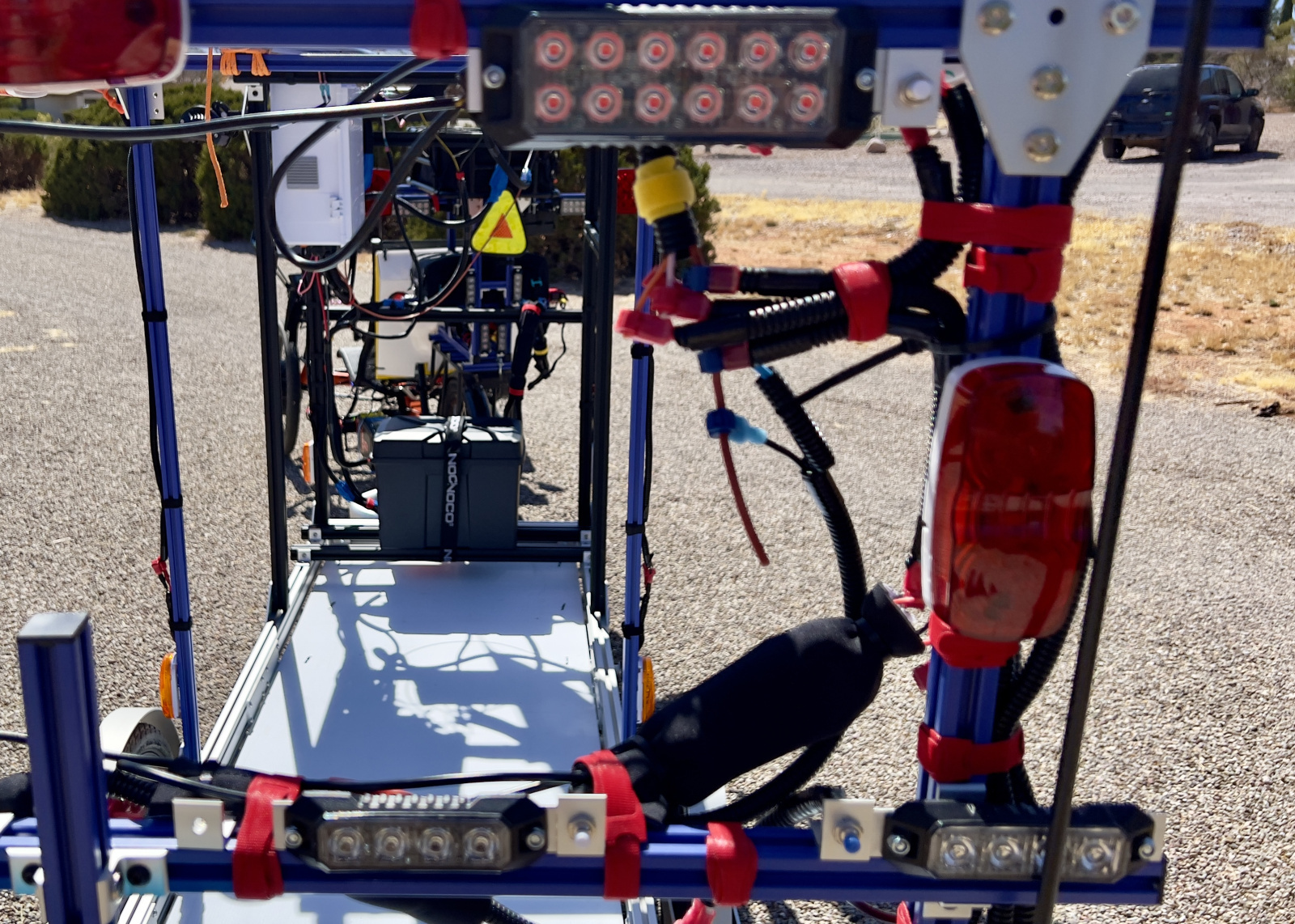

Note the turning signals and flashing lights. Rocker switches control which flashers are blinking. Switch on front of trike powers these switches. Panniers (not attached) hold a second set of batteries. — Amber Amp Backside

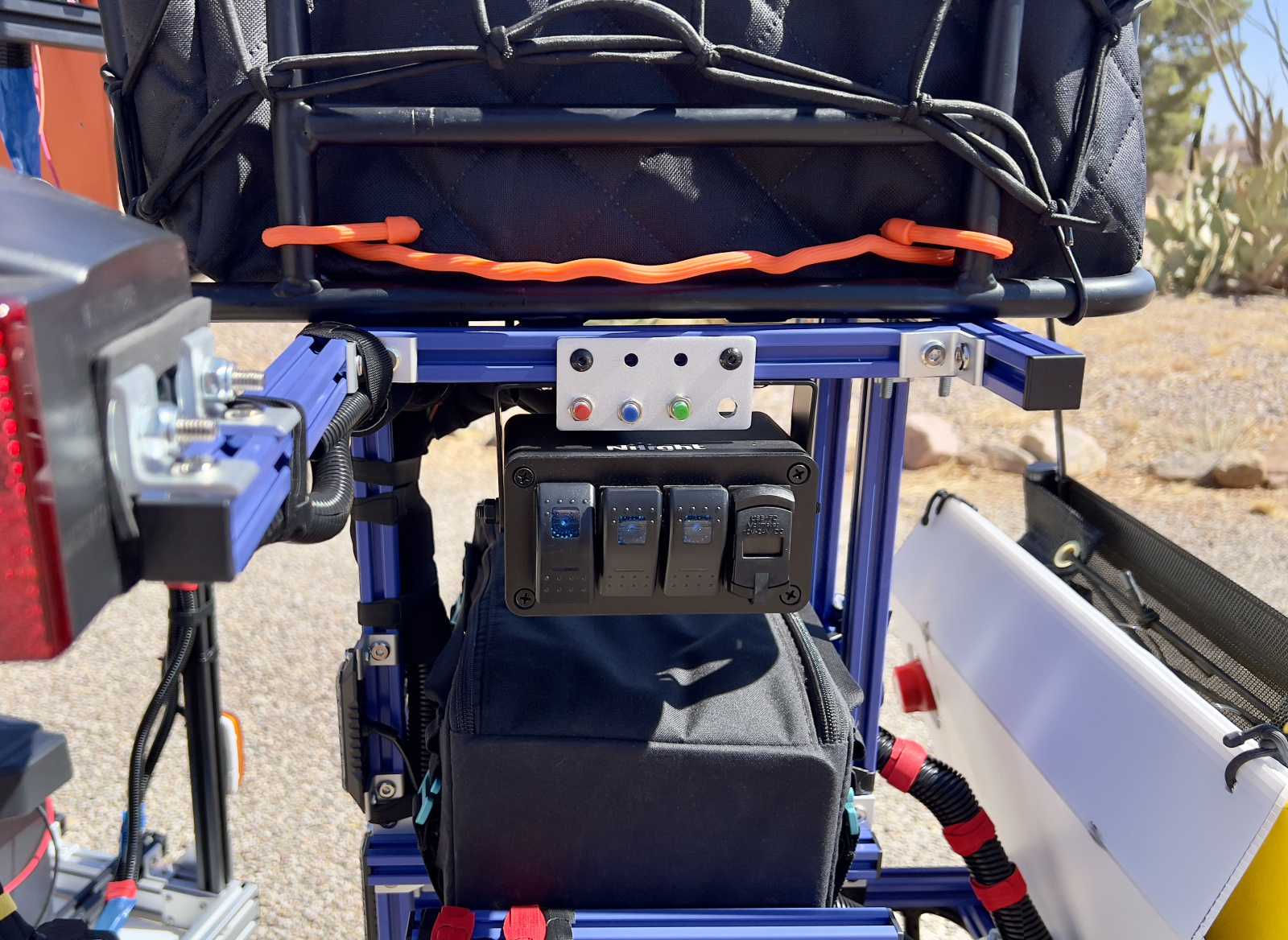

Big red flashers, small blue flashers, and small red flashers can be turn on/off from here. Push buttons select 1 of 17 flashing modes. The master switch for this box is located on the front of the trike on the right side of the — Amber Amp Flasher Switches

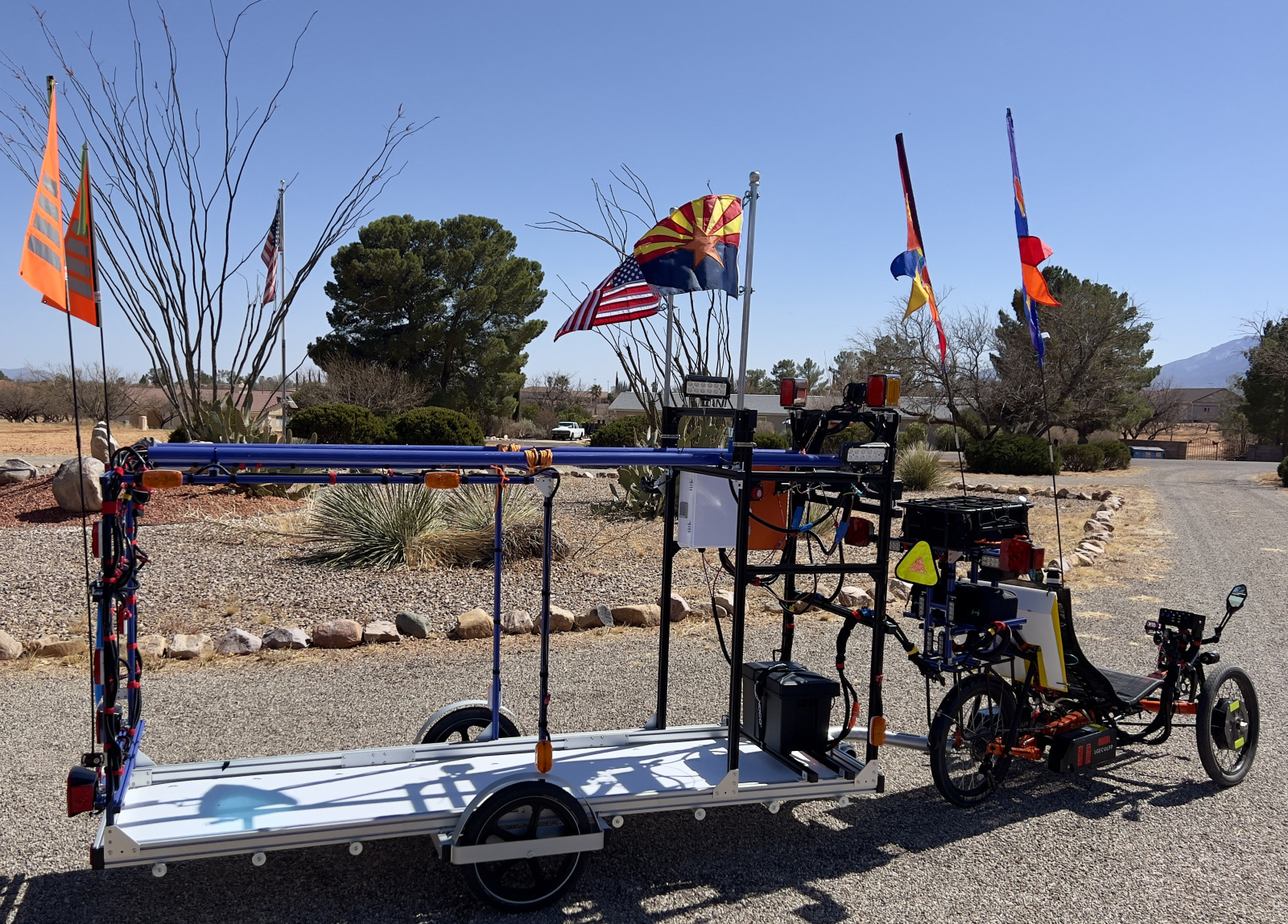

12 volt battery located front bottom powers the lights. DC fuse box is in white plastic houseing. Waterproof battery switch and breaker are mounted on the orange panel to the right. Two banks of rocker switches are on the front. — Cochise Caravan Right Side

The small buttons allow the user to select 1 of 17 modes for each pair of synchronized flashers. — Cochise Caravan Flashing Modes

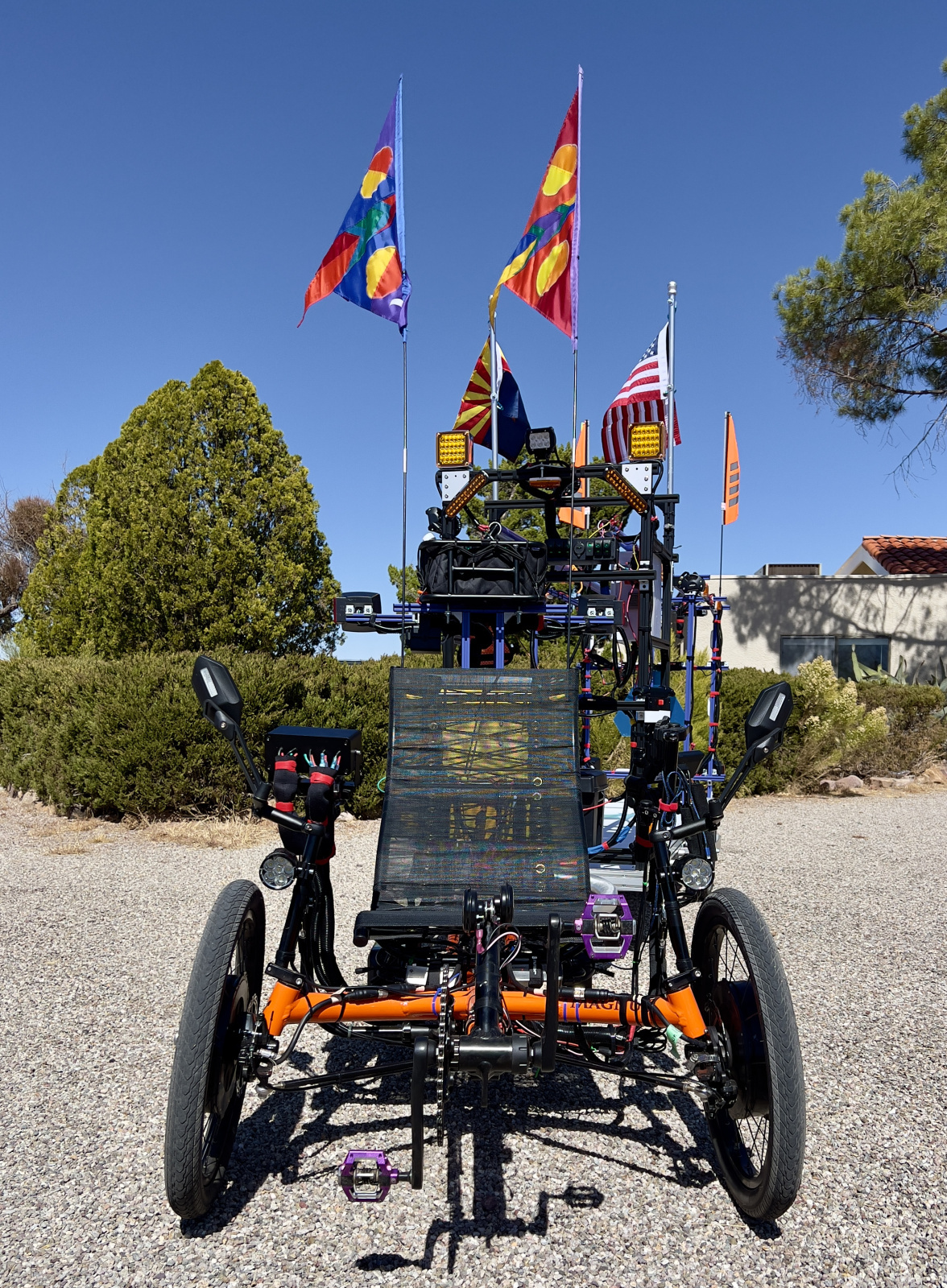

Amber Amp ready to explore! — Amber Amp Coming at You
