Boogie Nights

Quebec, Canada

145

Published: 2026-09-18

Cargo Bike

Grin All-Axle

Powerful

Belt

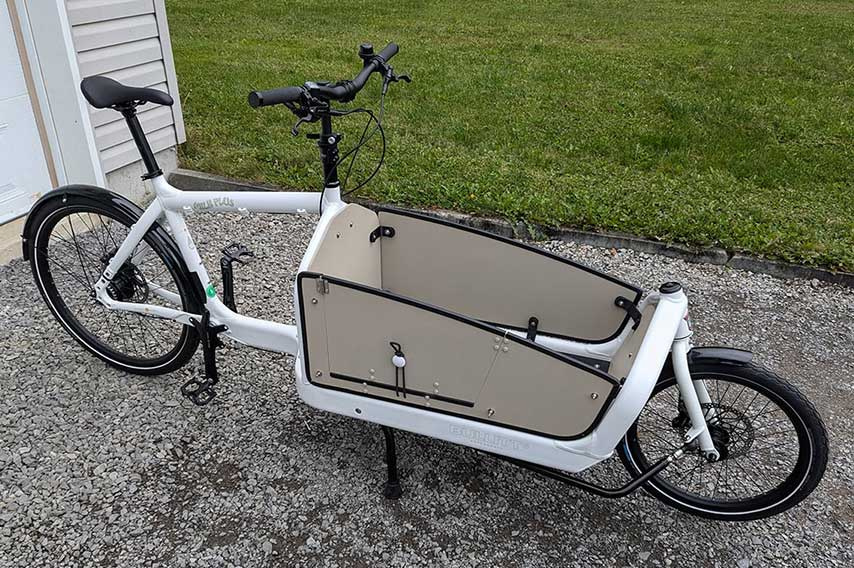

A Bullitt cargo bike with a powerful All-Axle front hub motor and tons of battery capacity. Please see linked Google doc for a more complete write-up. Thanks Grin for helping me make a dream bike!!

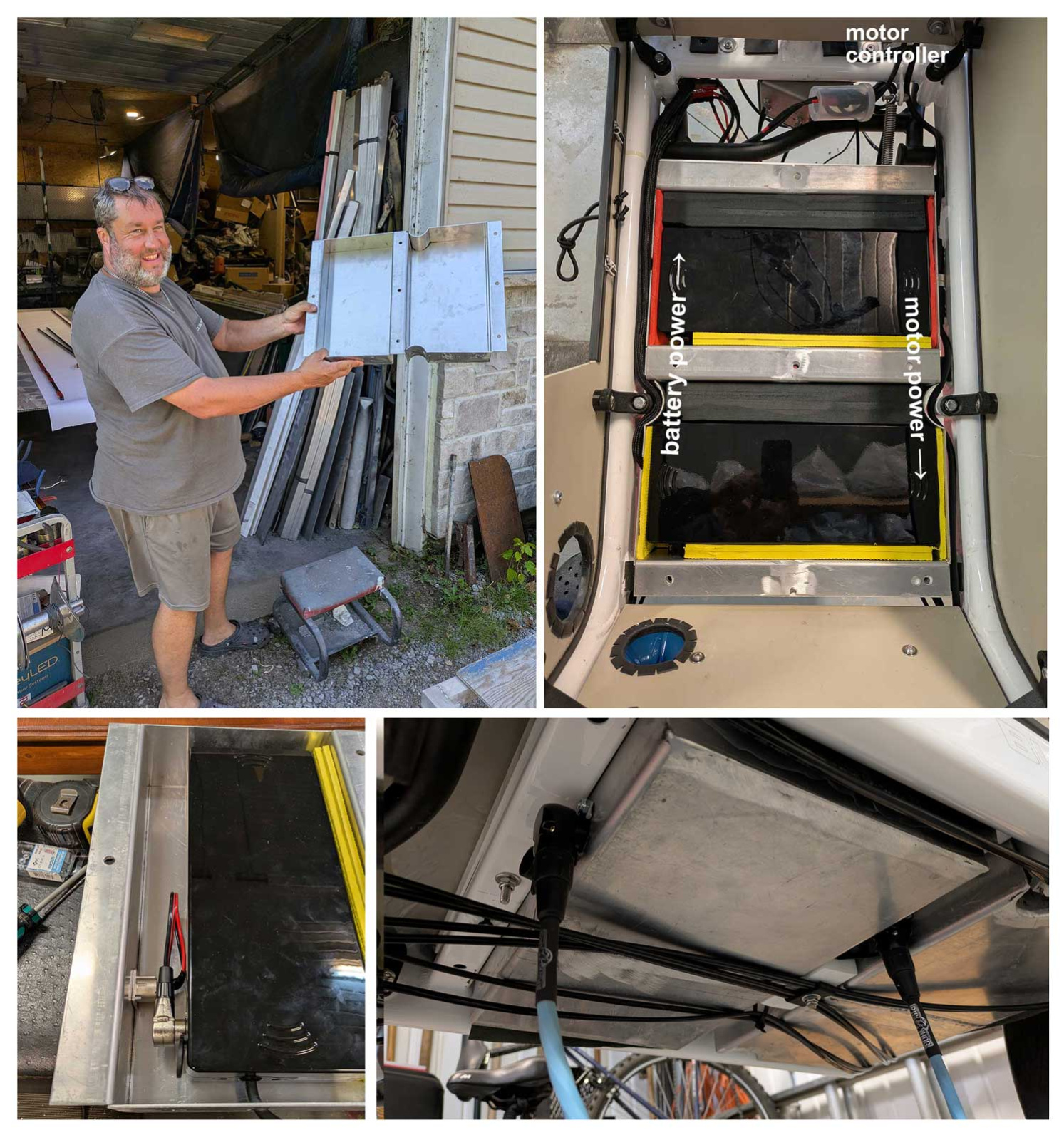

I'm very lucky to have a good friend who's a sheet metal wizard. He fabb'ed up this great set of trays that hold two big flat-pack 36v batteries. — Battery trays

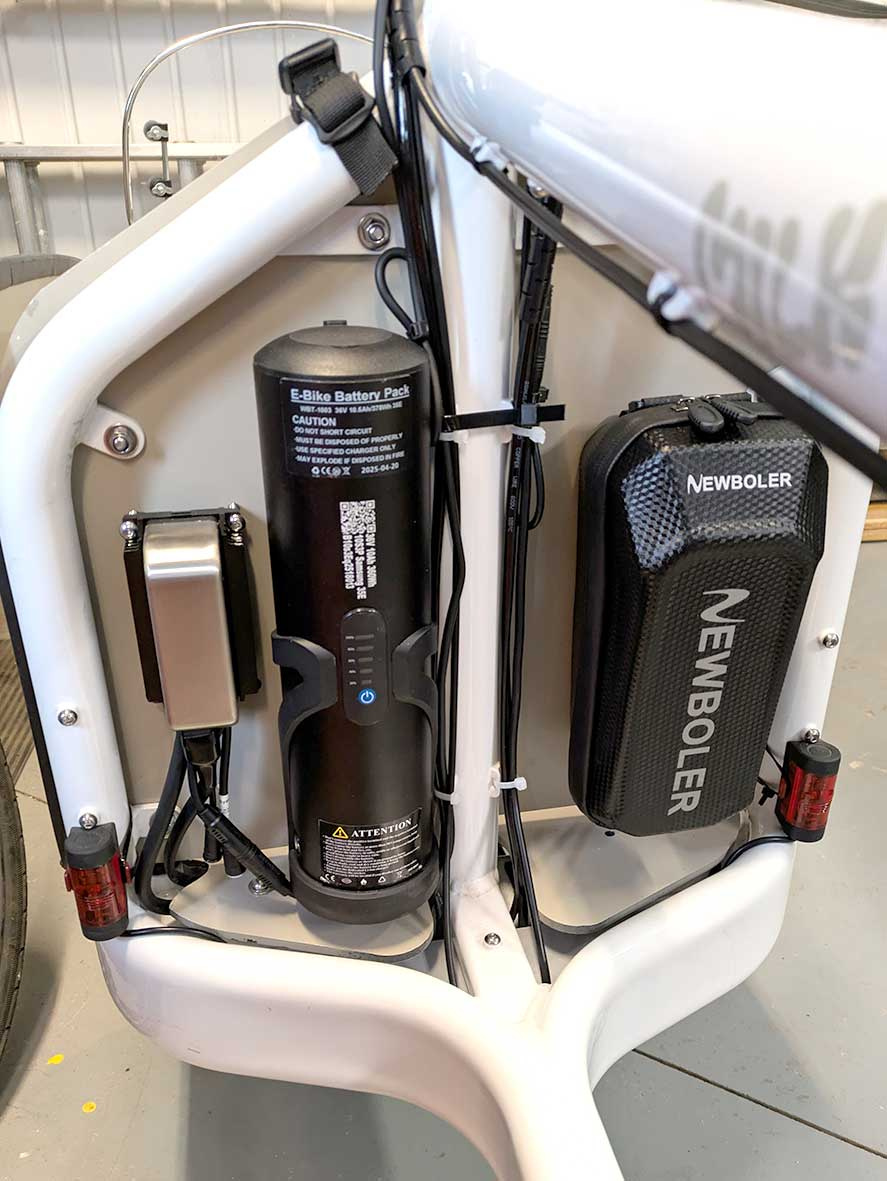

Phaserunner on the far left. As it's not in the wind I installed it on a pair of Grin heatsink frames. Then there's a 36v bottle battery that powers all of the accessories (lights, horn, etc.) That battery can also serve as a motor battery backup in an pinch. — Cockpit view

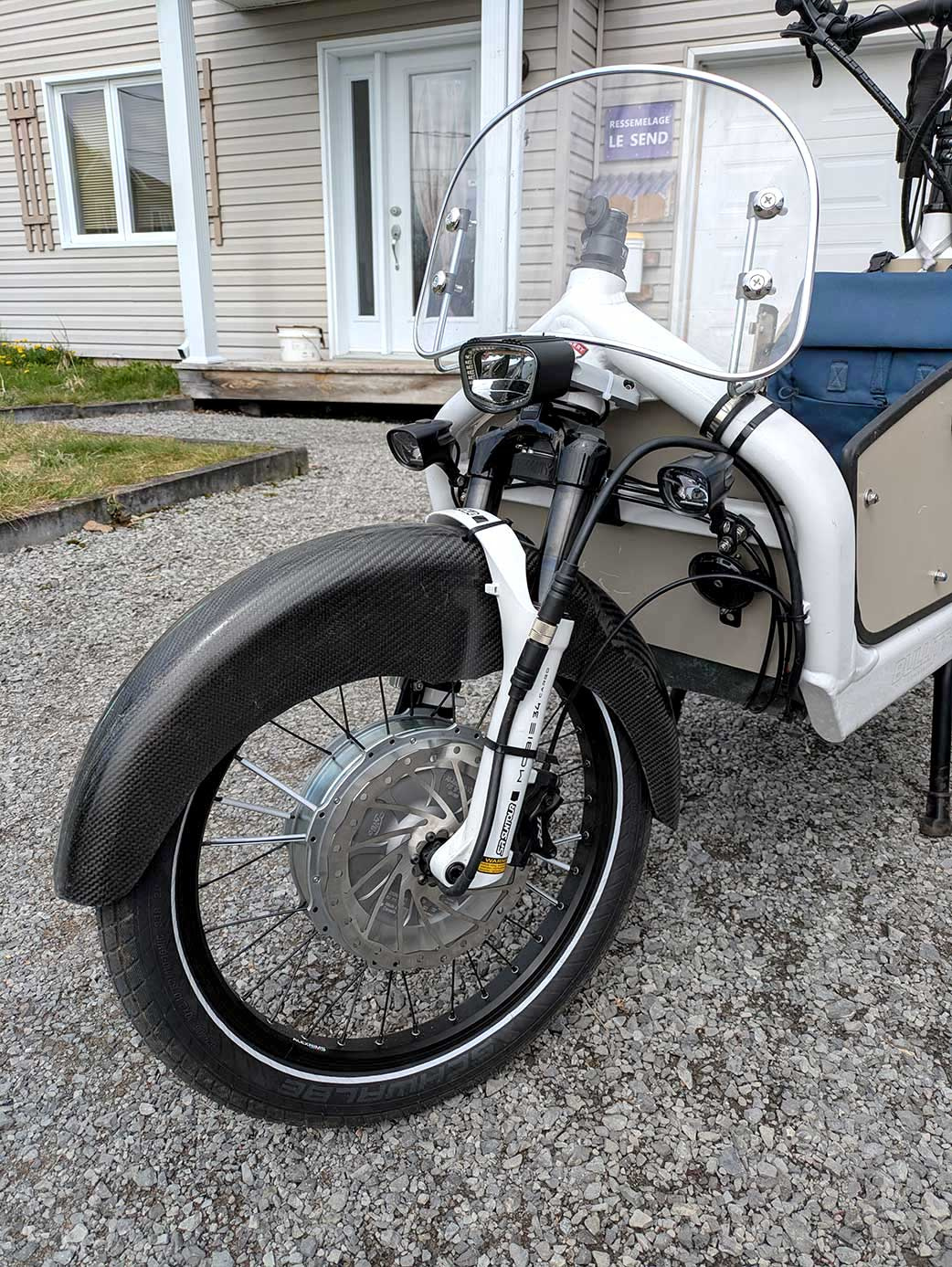

Very proud of my new front end, with its suspension fork, cable steering, carbon fender and of course a Grin All-Axle motor! — New front end

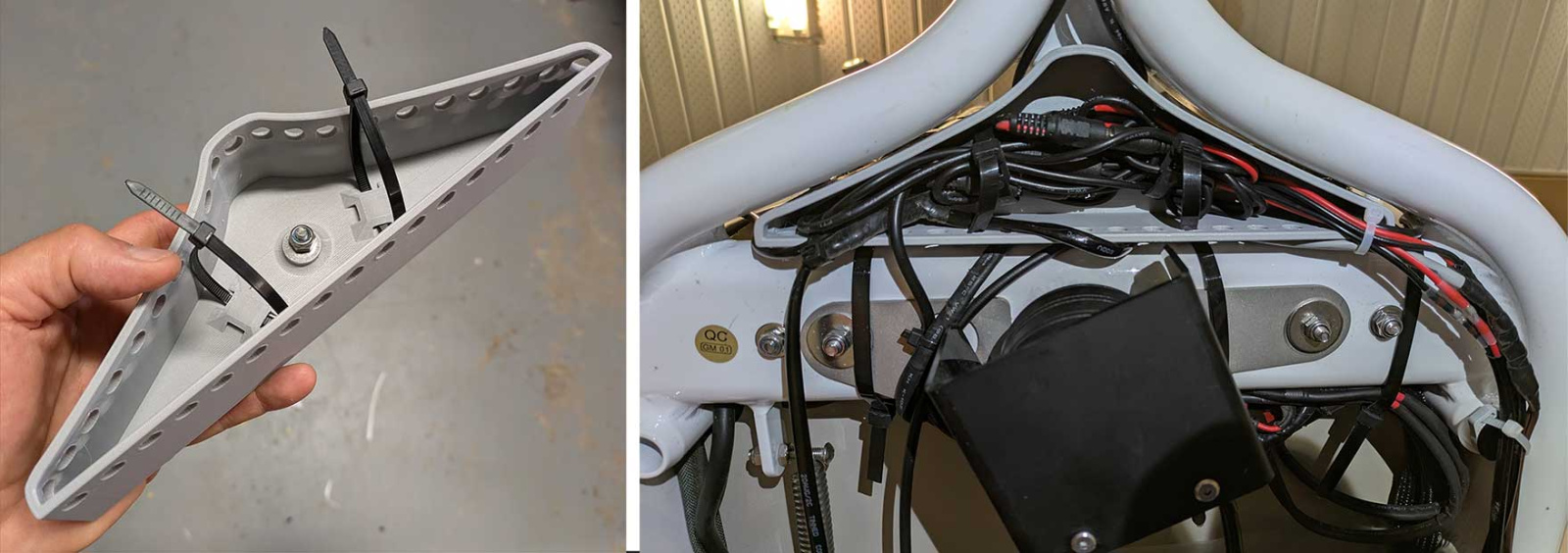

A Bullitt-specific design I made for gathering accessory wires in one safe location. — Junction box for accessories power

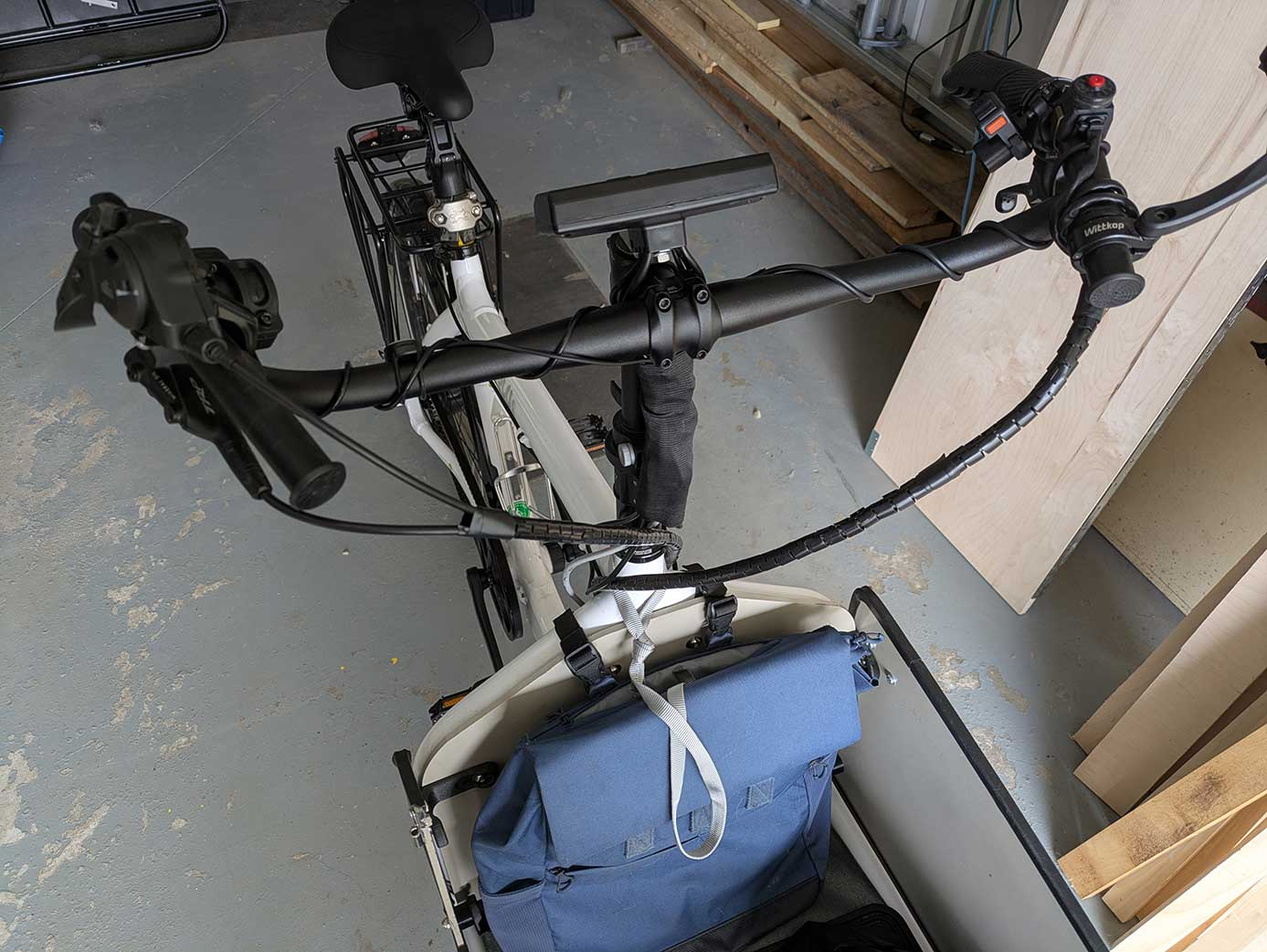

Not so bad, for my first electric bike build! Thanks Grin for the advice — Cable management at handlebar

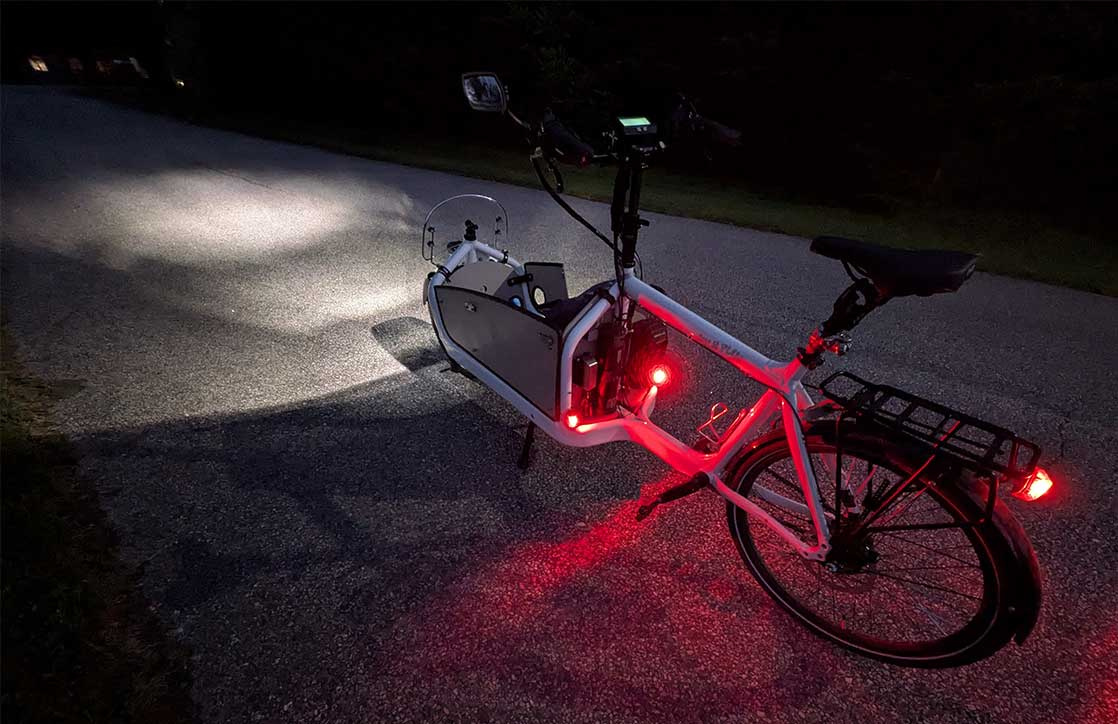

Very happy with the lights obtained from Grin. Up front there's a pair of small C7's that are always on. Then an SPL-01 center beam that I turn on at dusk. The rear-facing red lights are the little Roxims also sold by Grin. Everything runs off the central bottle battery. Thanks Grin! — Lights setup

Additional Info

https://For a more detailed write-up click here :

https://docs.google.com/document/d/1TzVnC8s60kXkhiSINkRwQ8kcS-hP6e7WfzGyjQDHjmA/edit?usp=sharing

https://

https://Grin tech made our summer! Here's a doggy ride video

https://www.youtube.com/watch?v=wSyXIJFkBd0
