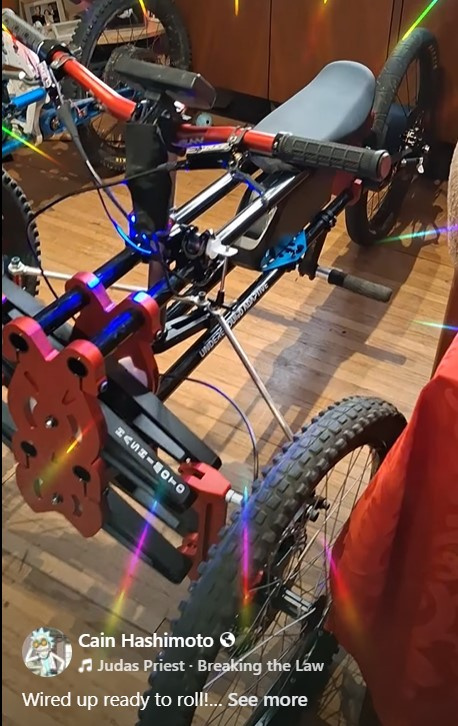

full suspension adaptive reverse tilt trike with floating caliper brakes /rotor tilt lockout

a no weld full cnc 6061 aluminum billit kit that I designed
paired with 6061/63 tubing/titainium steertube
all sealed bearings with hdpe sliders .
it has tilt lockout via a brake lever to caliper to rotor on top front swingarm

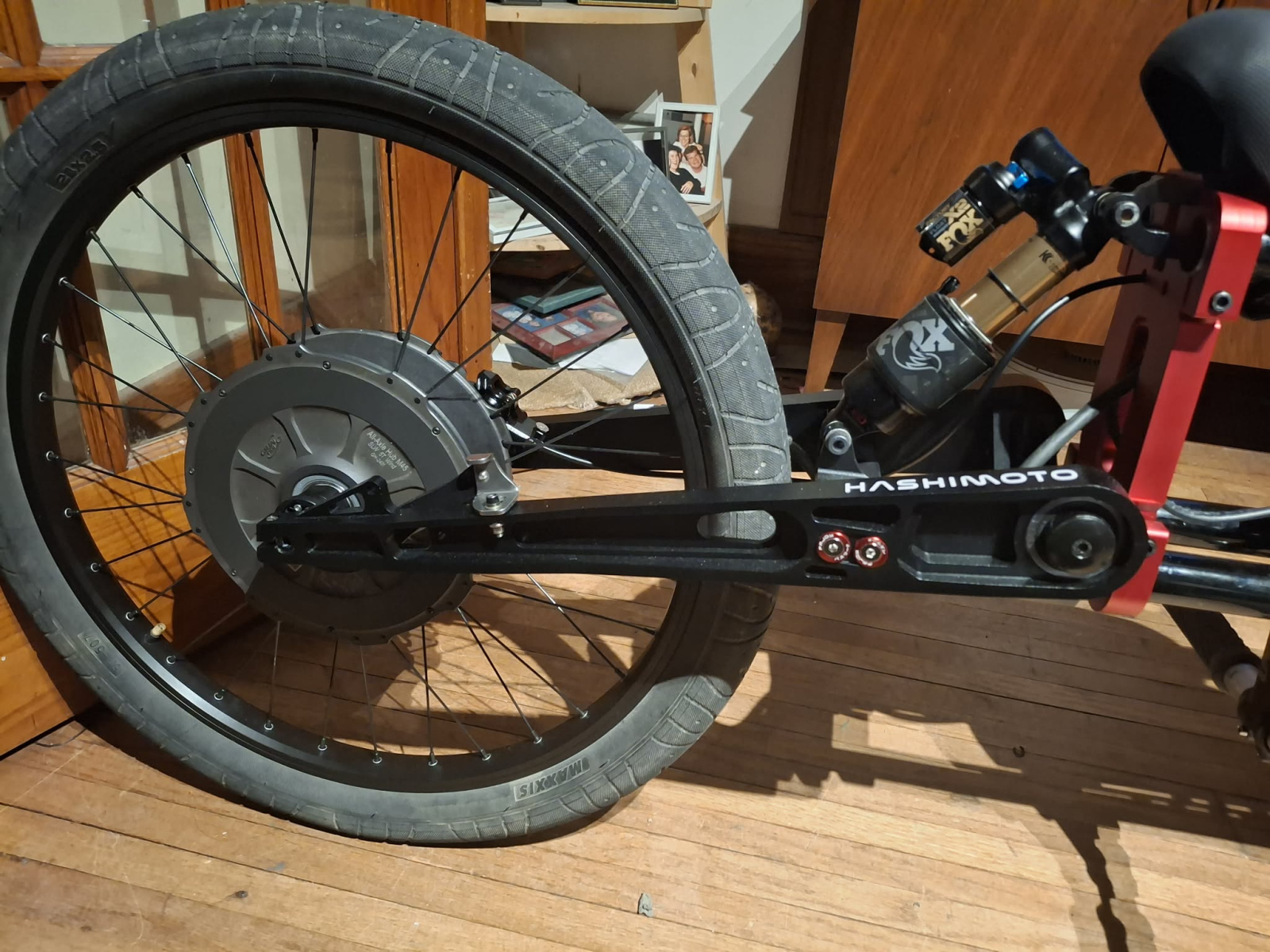

the custom rear swing arm was made for the front fat max 45 15 thru axle 150mm slow wind
it allows the l10 connector to pass thru the swingarm for a cleaner safer cable passage
the closest you will come to flying a bike !
while a awsome machine it has a much smaller groupset of adaptive riders it can accomodate
but for those who have the core or need to re/build theirs
this trike offers a unique ride that in many metrics is hard to beat
it corners and carves like a scalpel

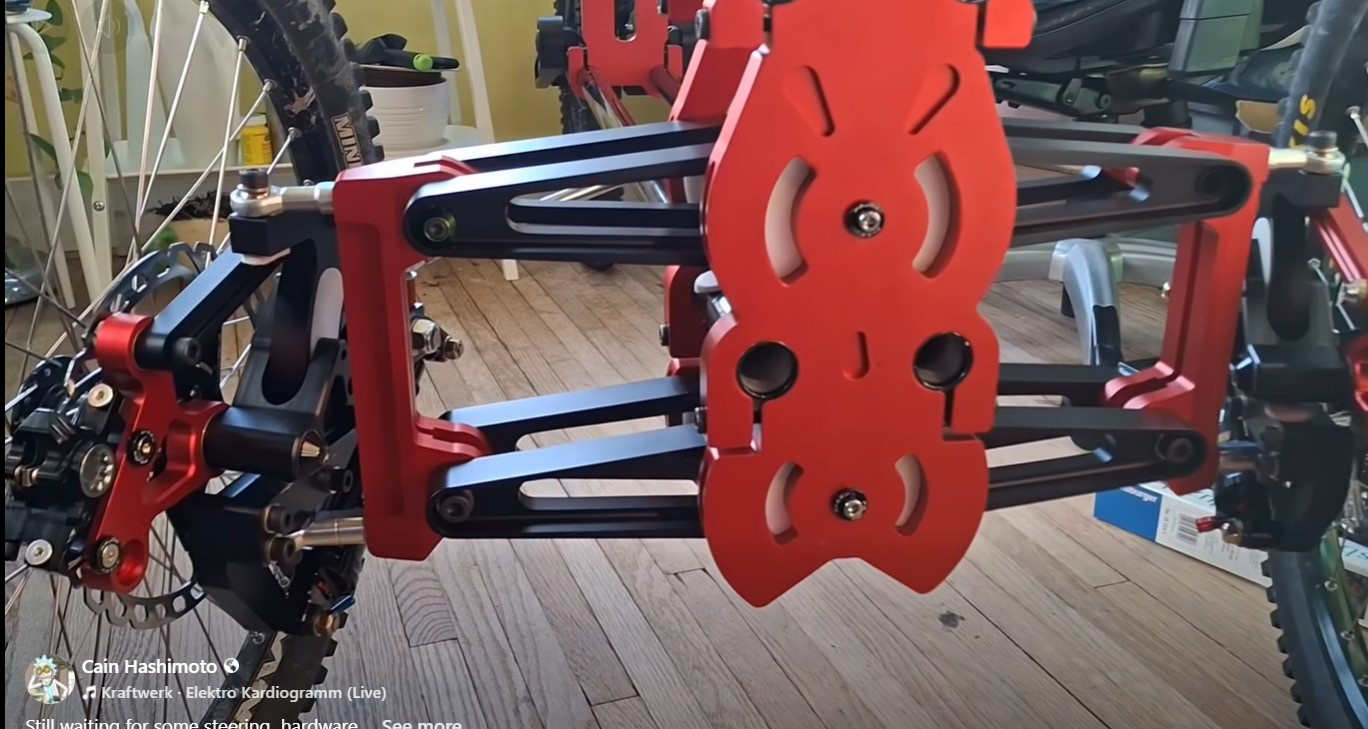

and the front suspension in the steering knuckles are now free from the brake
it now floats under all braking conditions

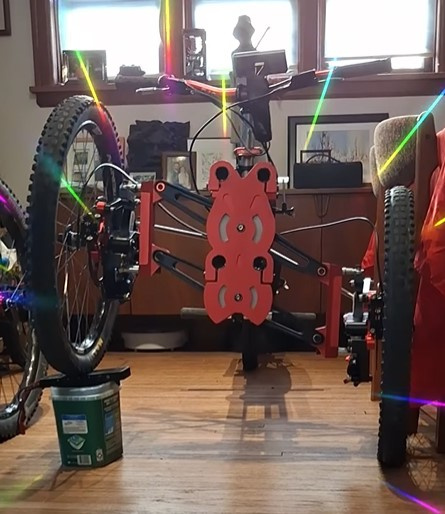

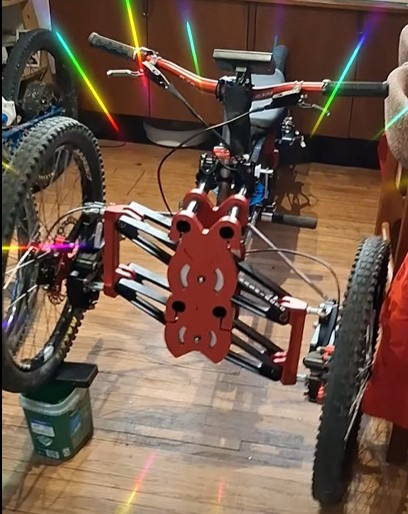

it differs from other popular adaptive tilt trikes
as in the steering is not connected to the front swingarms
the swingarms remain free to float independently of steering
