my f1 no weld full suspension adaptive e trike max45 build out
Winnipeg
|
67
Published: 2025-03-14

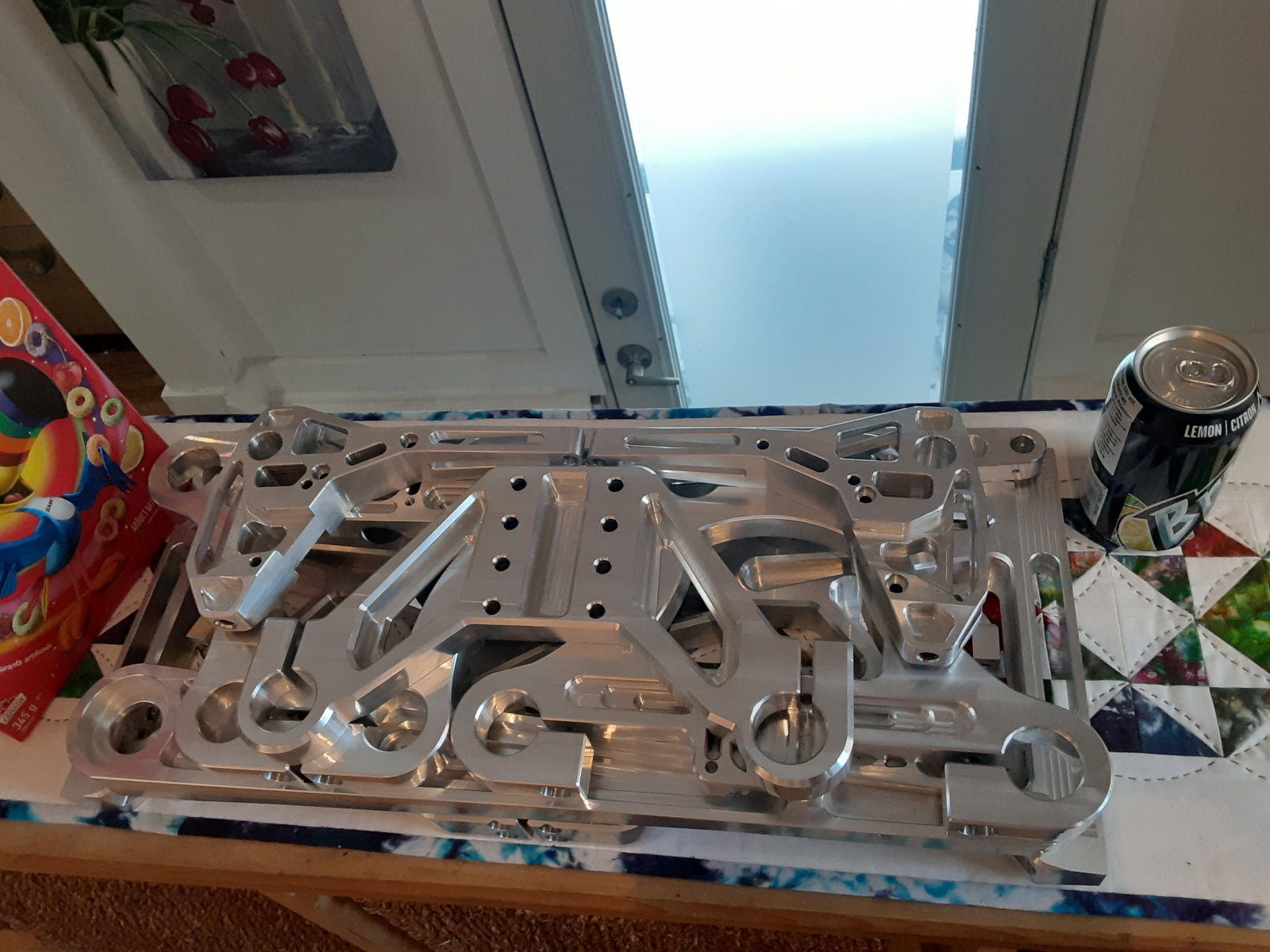

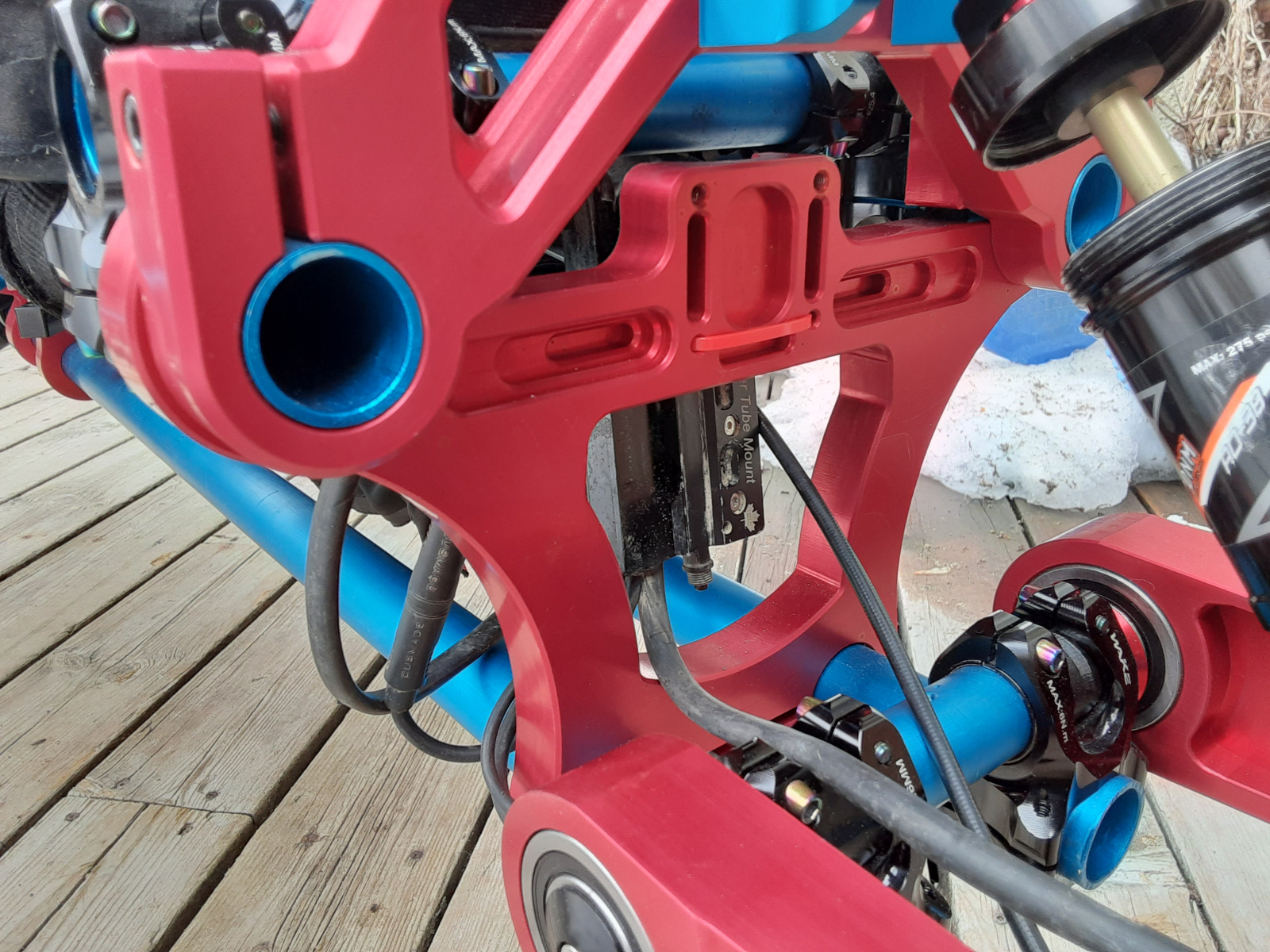

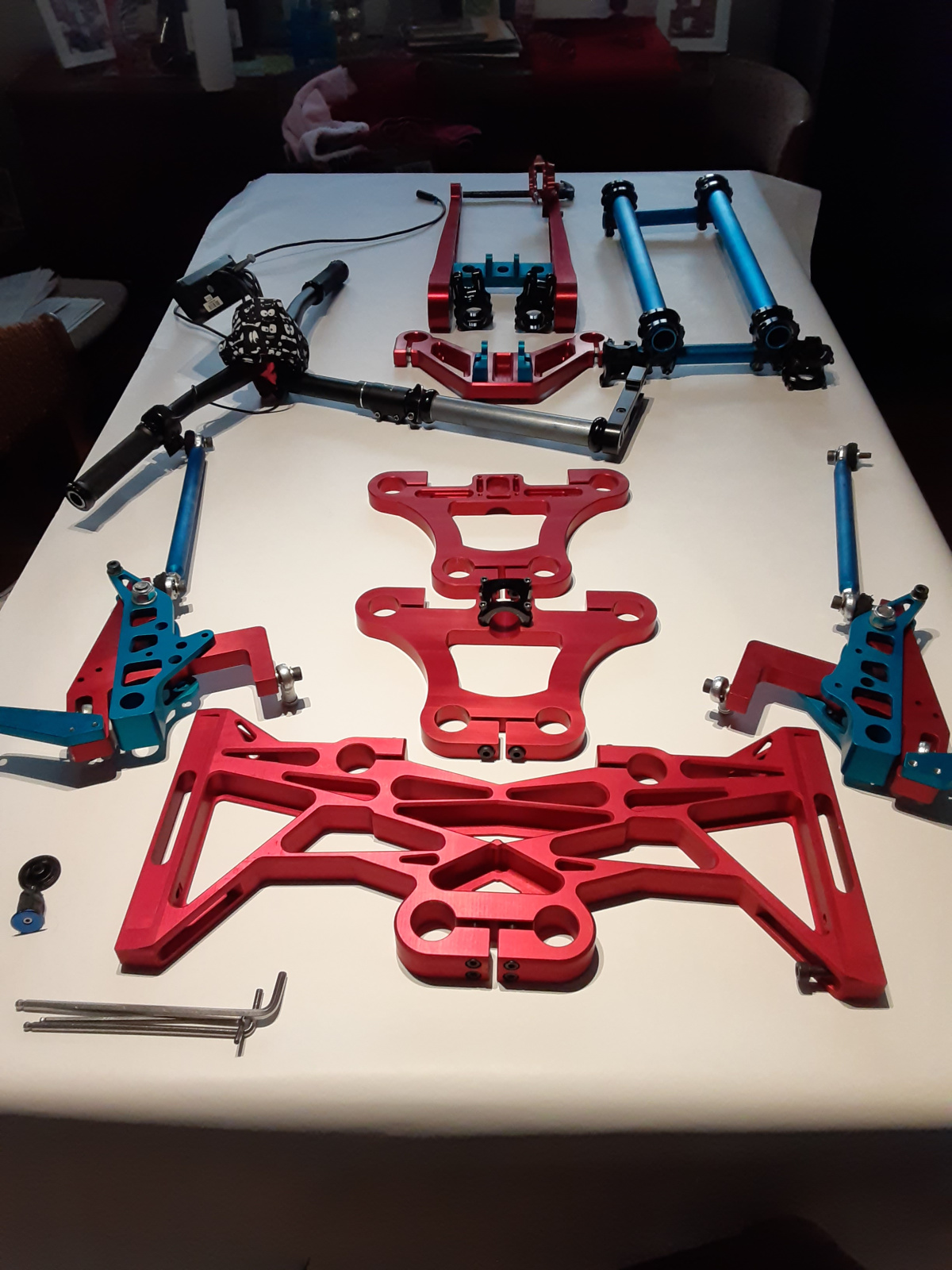

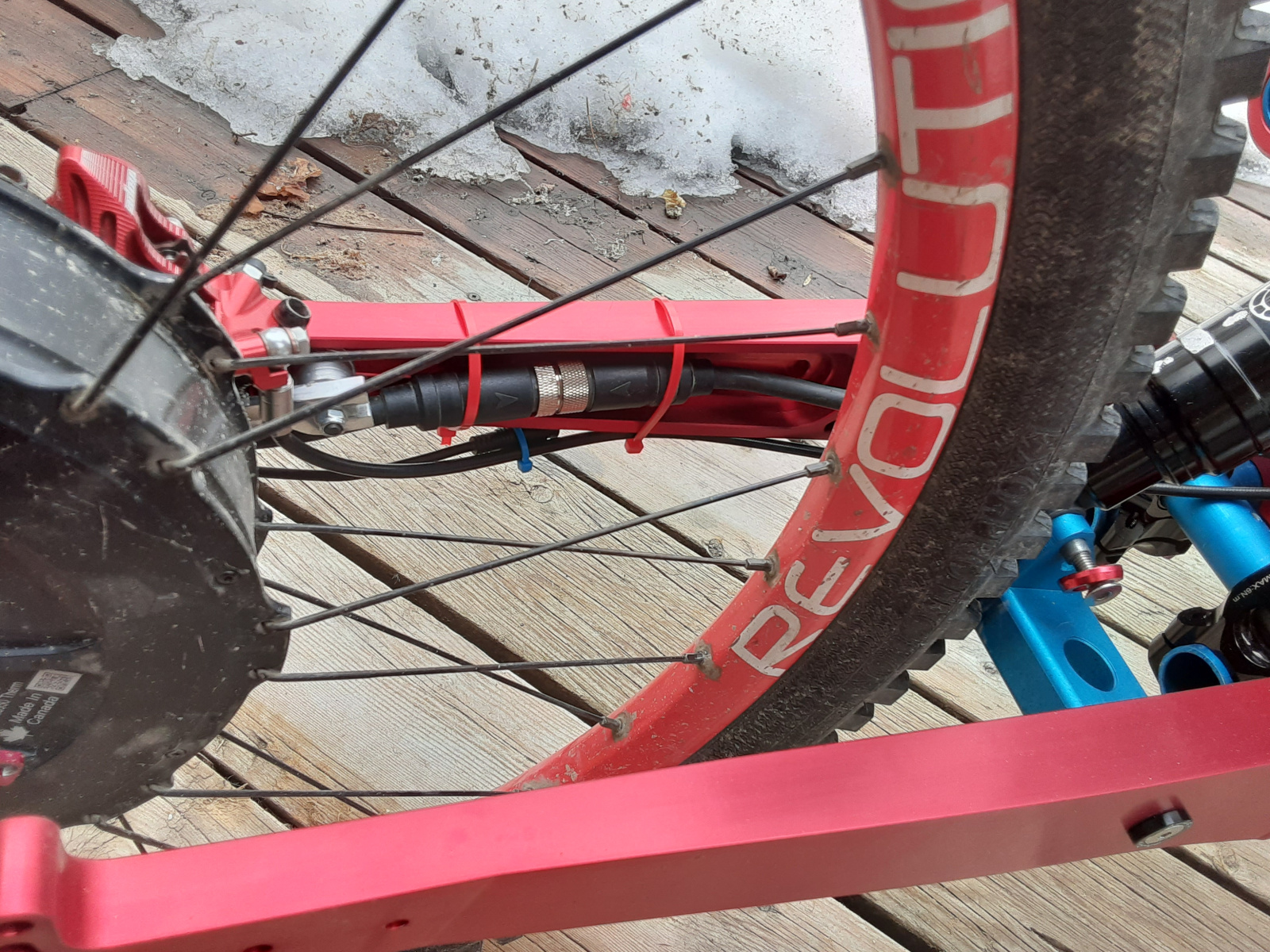

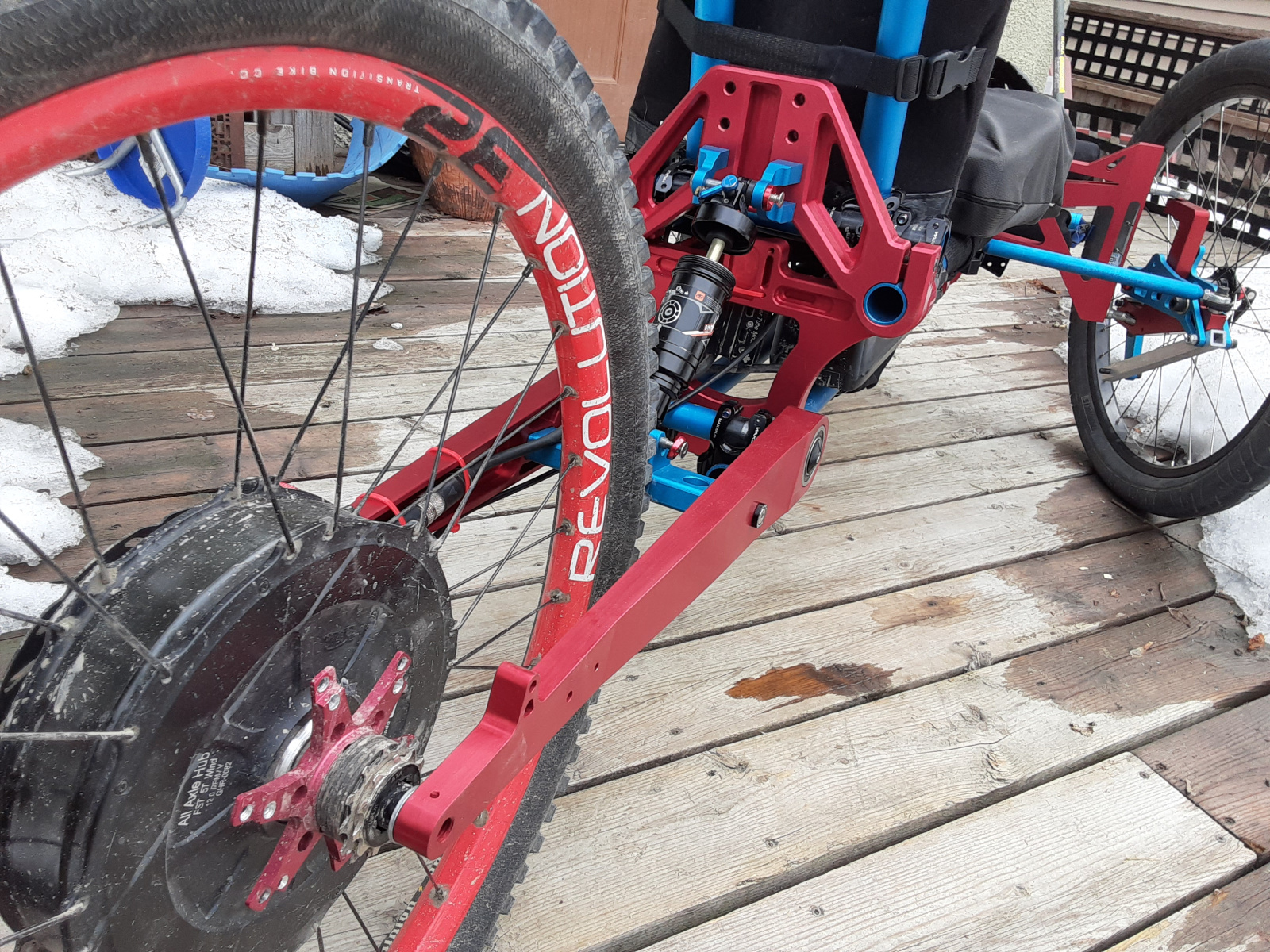

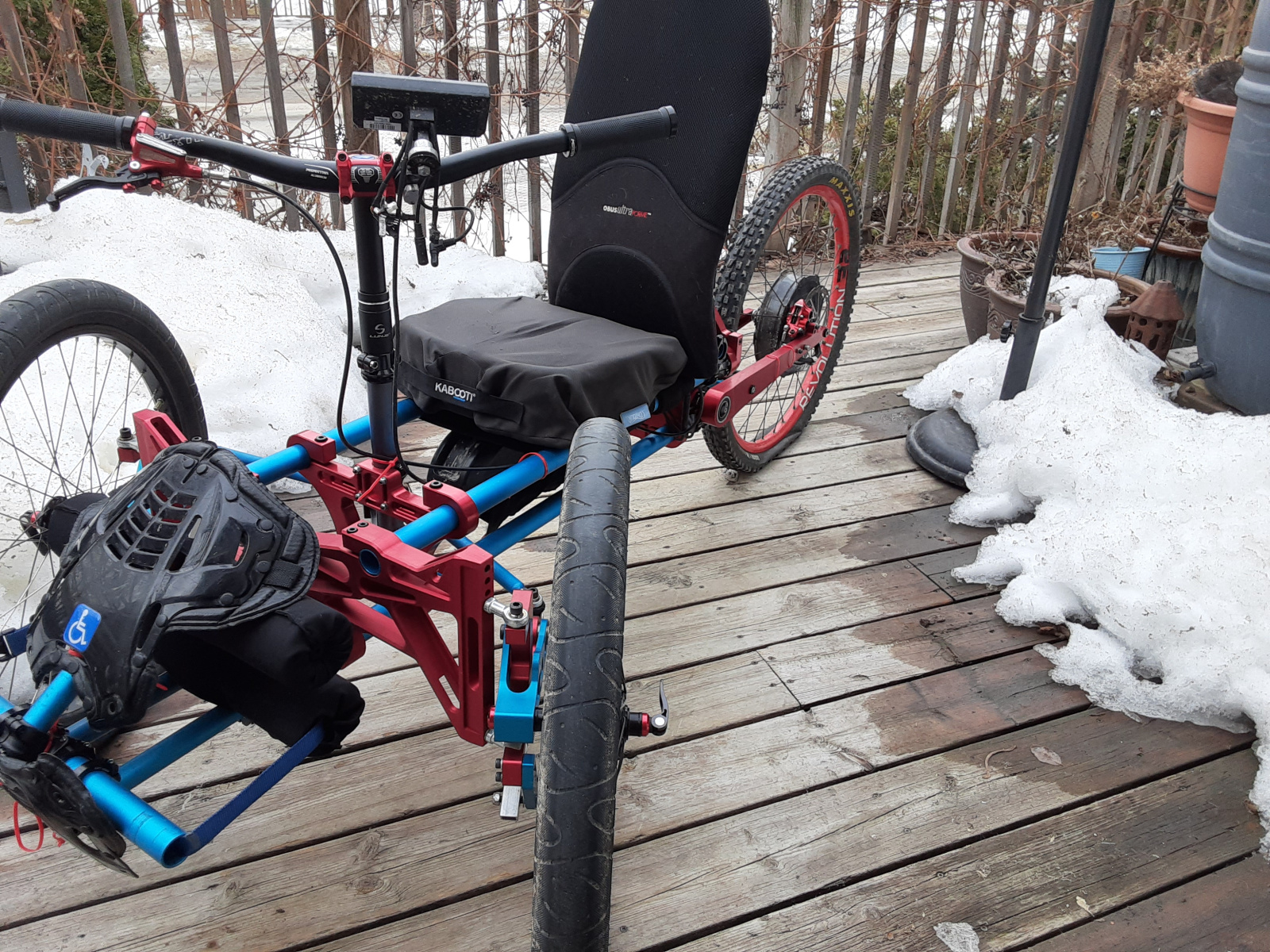

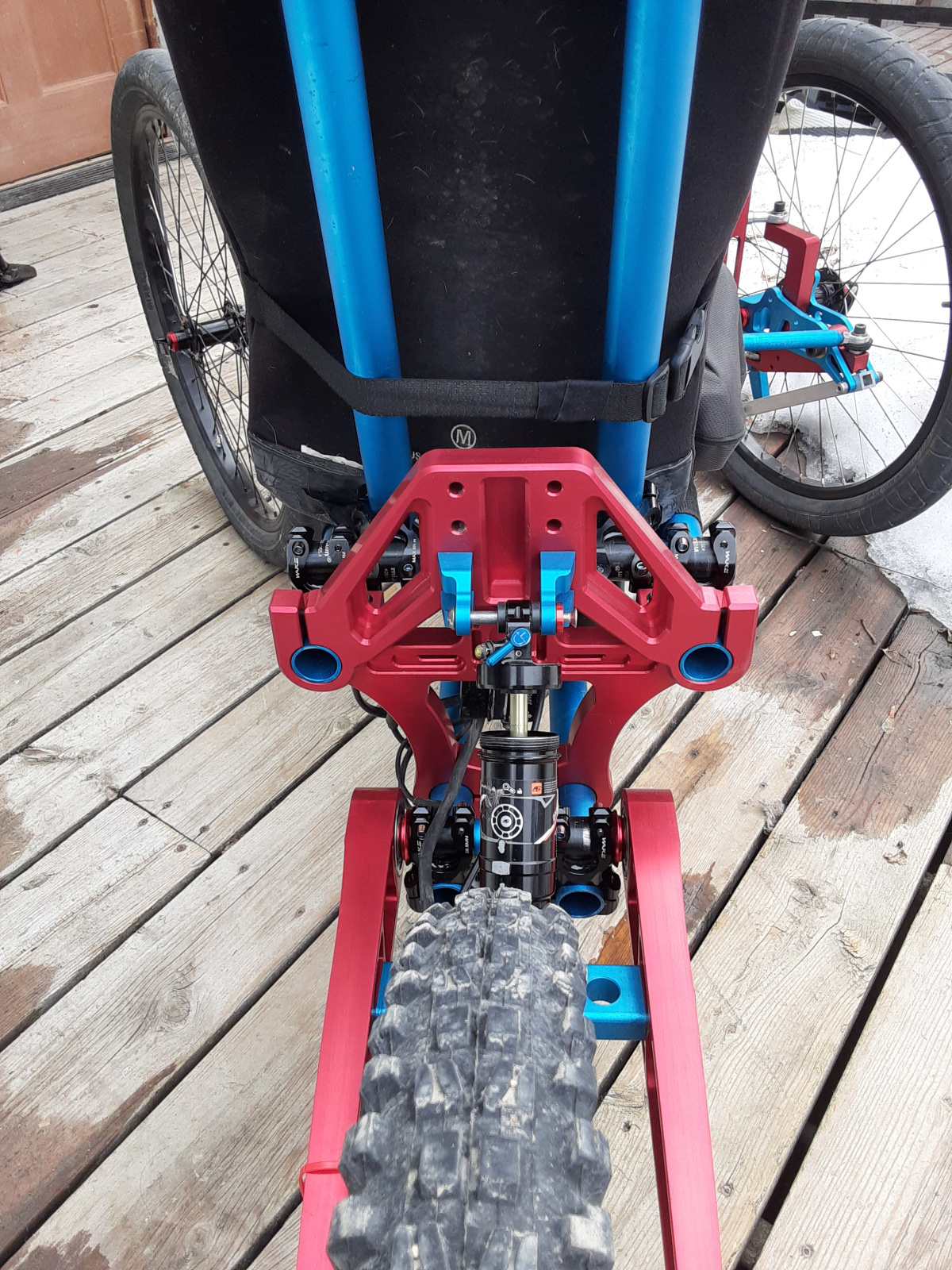

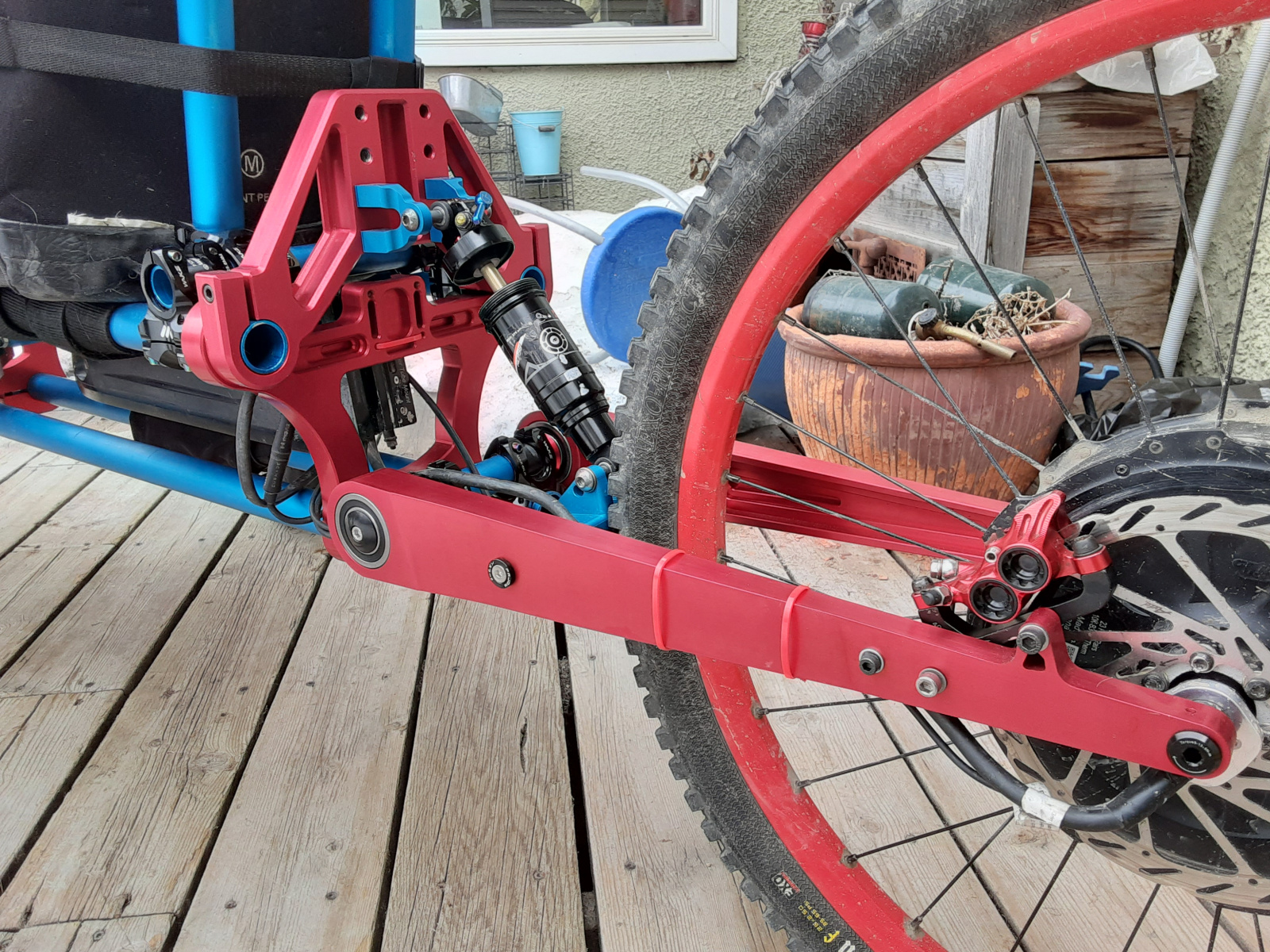

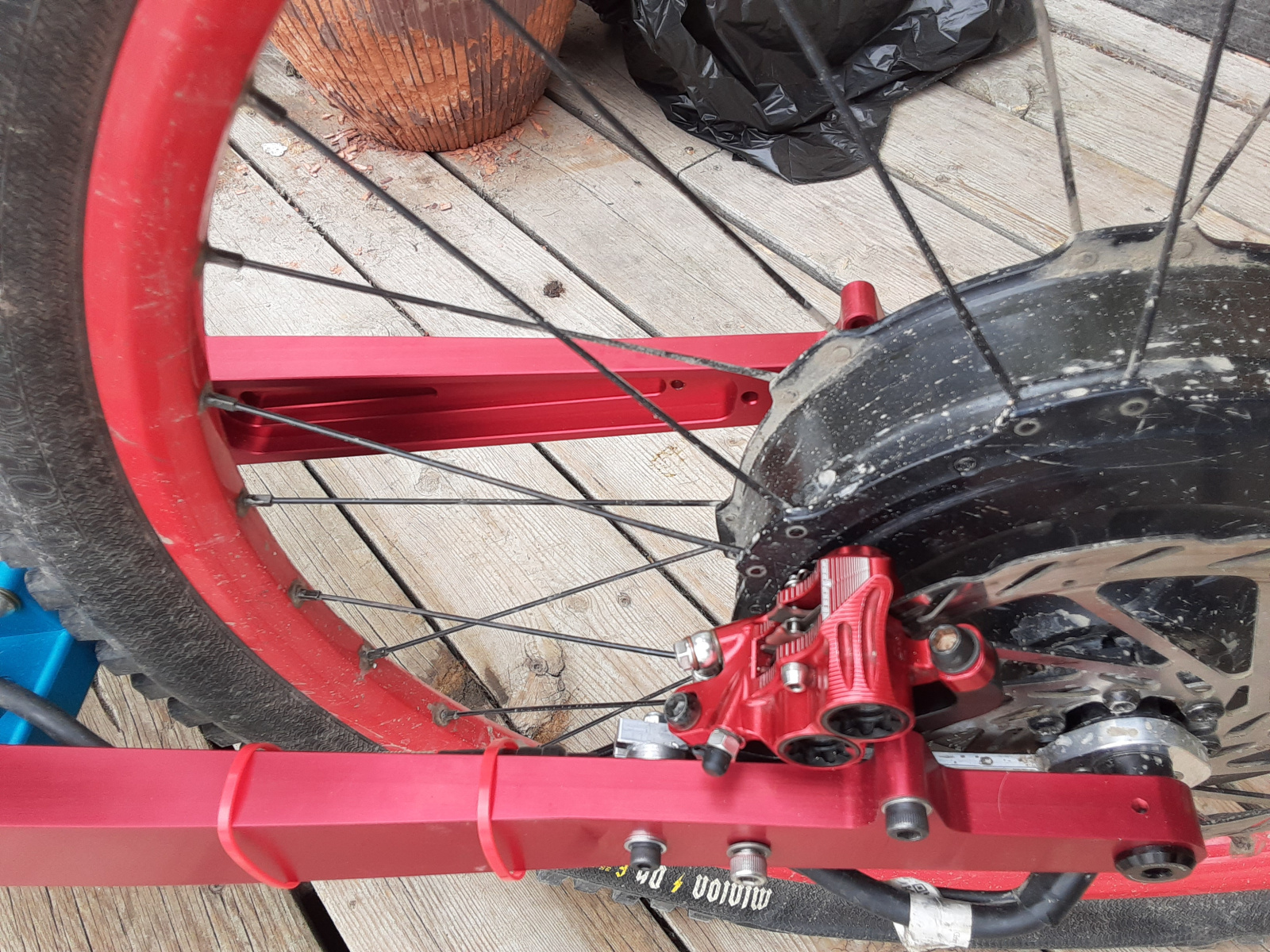

designed to use grin 's fat max 45 front hub in the rear this no weld all cnc plate and tube superstructure is my latest adaptive trike that I liken to a f1 lounge chair the flexible frameset allows for full suspension /5 inch front suspension( in steering knuckle) /no suspension as well allowing many wheel sizes and mullet configurations atm using a regular all axle rear while my dream fax max 45 carbon rim build is complete . 4 sealed bearing rear swing arm system incorporates a cleaner torque arm interface as well as a recess for l10 connecter to nest it in a little closer / frame allows for 2 batterys /clamshell foot rest to keep feet secure as well the back rest can be swapped out for mid body harness
