LiGo 10x Battery Pack

LiGo 10X, Air Travel Friendly 36V Stackable Battery Pack and Mounting Hardware. Pilot production batch devices.

Click here for full product info page



From USD$390.00

To USD$871.00

In stock

SKU
BUNDLE-LiGo10X
Customize LiGo 10x Battery Pack

36V LiGo 10X Battery   + USD$195.00



* Required Fields

Your Customization
LiGo 10x Battery Pack
LiGo 10x Battery Pack

In stock

USD$390.00

Summary

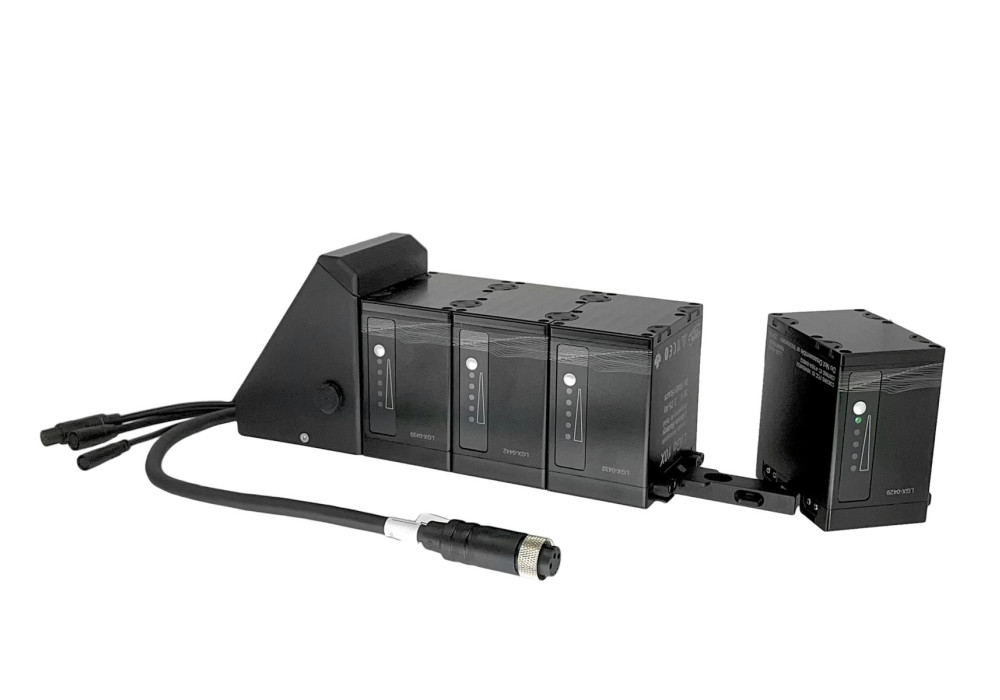

    LiGo 10X are 36V 99Wh lithium battery modules that can stacked together in parallel to build up as large a battery as required, and separated into individual packs for transport aboard passenger aircraft or for reduced cost shipping.

    This bundle purchase page allows you to buy the pilot LiGo modules along with optional installation hardware and chargers if you want to add a LiGo battery system to your ebike build.

    Fully production LiGo 10X units are expected by late spring 2025 and will have injection molded rather than CNC machined top and bottom caps, but will be otherwise interchangeable.

    36V LiGo 10X Battery
    Manufacturer
    Grin
    Actual Weight (kg)
    0.64
    Dimensions (L x W x H, mm)
    55 x 78 x 89
    Country of Manufacture
    Canada
    Battery Mount Location
    Frame Mount, Rear Rack
    Nominal Voltage
    36 Volt (10s)
    Full Charge Voltage
    42
    Capacity (Amp-Hours)
    2.75
    Watt-hours at 1C Discharge
    99
    Cell Type
    LG
    Internal Resistance (Ohms)
    0.40
    Connector(s)
    XT60
    36V 2A XT60 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.4
    Dimensions (L x W x H, mm)
    123 x 63 x 36
    Charger Current (A)
    2.0
    Connector(s)
    XT60
    Charge Port Connector
    XT60
    Charger Voltage
    36V (42.0V max)
    36V 4A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.58
    Charger Current (A)
    4.0
    Connector(s)
    ST3
    Charge Port Connector
    ST3
    Charger Voltage
    36V (42.0V max)
    Satiator Upgrade with XT60M Adapter
    Actual Weight (kg)
    1.06
    Charger Current (A)
    8
    Roxim Rear R1 ELight
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.0690
    Light Source
    Red Cree XBD
    Lumens Output
    20
    Minimum Input Voltage (V)
    6
    Max Input Voltage (V)
    90
    Peak Input Power (Watts)
    5.5
    Connector / Jack
    DC 5.5x2.1mm
    C7 Plus, 3W 80 Lux Ebike Light
    Country of Manufacture
    China
    Actual Weight (kg)
    .088
    Light Source
    OSRAM
    Minimum Input Voltage (V)
    6
    Max Input Voltage (V)
    58
    Peak Input Power (Watts)
    3
    Connector / Jack
    DC5.5x2.1
    Handlebar Phone Mount and Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.165
    Minimum Input Voltage (V)
    12
    Max Input Voltage (V)
    95
    Connector / Jack
    5.5 x 2.1mm DC Jack
    Output Voltage
    5V
    Output Current (A)
    2
    Adjustable Voltage 15A DC-DC Converter
    Actual Weight (kg)
    1.1
    Minimum Input Voltage (V)
    20
    Max Input Voltage (V)
    85
    Output Voltage
    Adjustable 2V-33V
    Output Current (A)
    15
    SPL-01 1900 Lumen Ebike Light
    Country of Manufacture
    China
    Actual Weight (kg)
    0.12
    Light Source
    Multiple LEDs
    Lumens Output
    1900
    Turn-On Voltage (reduced power)
    8
    Minimum Input Voltage (V)
    12
    Max Input Voltage (V)
    60
    Peak Input Power (Watts)
    20
    Connector / Jack
    DC 5.5x2.1mm
    More Information
