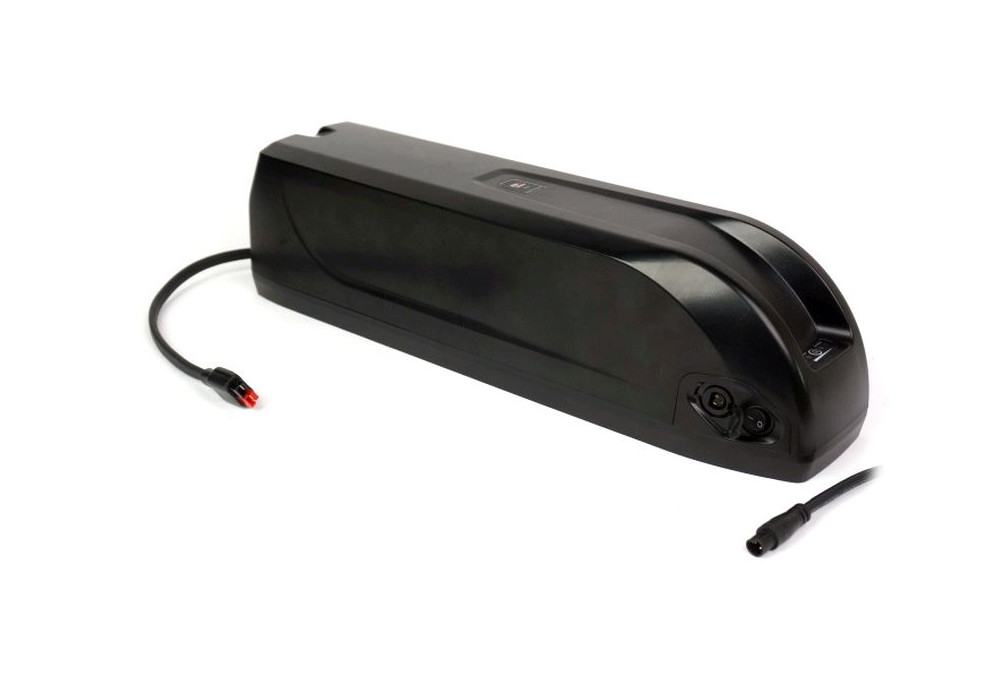

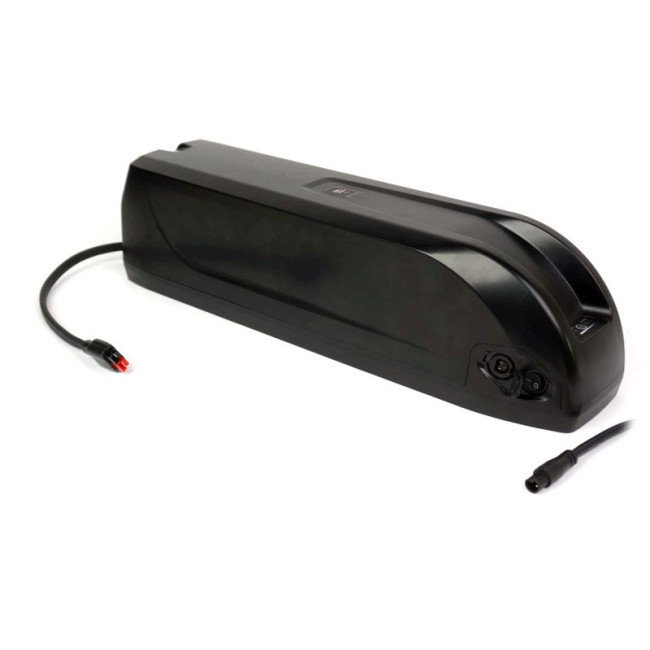

72V 9.5 Ah High Voltage Battery

72V 9.5 Ah Downtube Battery with Panasonic 21700A Cells, 30A Continuous BMS, Custom 3 Pin Charge Port.

Individually Discharge Tested at Grin to Ensure Capacity.

Out of stock

SKU

BUNDLE-B7210Li-DT

Customize 72V 9.5 Ah High Voltage Battery

Charger Option (72V ST3)

1 x 72V Satiator Upgrade with ST3 Adapter + USD$295.00

Include Triple Bob Bracket?

1 x Triple Bob + USD$26.00

Include Clamp for Rear Rack Installation?

1 x Rail Anchor kit + USD$15.00

* Required Fields

Your Customization

Summary

Additional Information

72V (20s) 9.5 Ah Downtube battery using high power 21700A cells from Panasonic. Uses 30A continuous BMS circuit and is an ideal pack for combining with the Phaserunner 72V Grinfineon controller to produce fast and powerful ebike projects that don't require extensive range.

Features include:

Anderson Powerpole Connectors for Power
Push Button for 4 LED Charge Indicator
Installs to Waterbottle Eyelets on Downtube
Mechanically Locking Key Switch
ON/OFF Rocker Switch
Individually Discharge Tested at Grin to Ensure Capacity

Specifications

72V Satiator Upgrade with ST3 Adapter

Actual Weight (kg)

1.06

Charge Port Connector

3 Pin XLR, ST3

Charger Voltage

36V (42.0V max), 48V (54.6V max), 52V (58.8V max), 72V (84.0V max)
