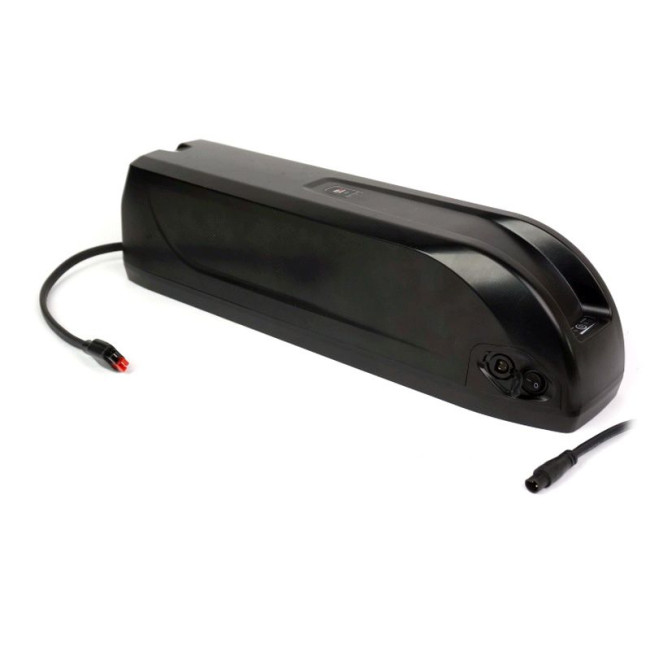

52V 14.5Ah Downtube Battery

52V 14.5 Ah Downtube Battery with NCR21700A Cells, 40A BMS, ST3 Charge Port.

UN38.3 Certified for Shipping, Individually Discharge Tested at Grin to Ensure Capacity.

From USD$695.00

To USD$1,031.00

In stock

SKU

BUNDLE-B5215_Li_DT

Customize 52V 14.5Ah Downtube Battery

Battery Pack

52V 15Ah Downtube Battery

Charger Option (52V ST3)

Include Triple Bob Bracket?

Include Clamp for Rear Rack Installation?

1 x Rail Anchor kit + USD$15.00

* Required Fields

Your Customization

52V 14.5Ah Downtube Battery

In stock

USD$695.00

Qty:

Summary

Additional Information

52V (14s) 14.5 Ah downtube battery, with 40 NCR21700A cells and a 40A continuous BMS, assembled in new 21700 downtube enclosure with On/Off switch and 3-pin ST charge plug. This battery can be charged up to 8A.

Features include:

Anderson Powerpole Connectors for Power
Push Button for 4 LED Charge Indicator
Installs to Waterbottle Eyelets on Downtube
Mechanically Locking Key Switch
ON/OFF Rocker Switch included
Mini ST 3-Pin Charging Port for High Charge Currents
Individually Discharge Tested at Grin to Ensure Capacity

Specifications

52V 15Ah Downtube Battery

Actual Weight (kg)

4.3

Dimensions (L x W x H, mm)

380x95x100

Battery Mount Location

Frame Mount

Nominal Voltage

52 Volt (14s)

Full Charge Voltage

58.8

Capacity (Amp-Hours)

14.5

Cell Type

NCR21700A 14S x 3P

Connector(s)

Anderson, ST3

52V 2A ST3 Charger

Actual Weight (kg)

.36

Dimensions (L x W x H, mm)

170x72x34

Connector(s)

ST3

Charge Port Connector

ST3

Charger Voltage

52V (58.8V max)

52V 4A ST-3 Charger

Actual Weight (kg)

0.84

Connector(s)

ST3

Satiator Upgrade with ST3 Adapter

Actual Weight (kg)

1.06
