9C+ Front Kit, Basic Throttle

Front 9C+ Based Kit with a V2 Cycle Analyst and Basic Throttle Control.

Out of stock

SKU

K-9C_F

Customize 9C+ Front Kit, Basic Throttle

Include Custom Wheel Build?

1 x Kit WheelBuild + USD$45.00

Rim for DD Hub

Spoke Colour

Controller

Throttle Style

Ebrakes for Regen

Upgrade Motor with Statorade Injection

1 x Inject Motor with Statorade + USD$20.00

* Required Fields

Your Customization

Summary

Additional Information

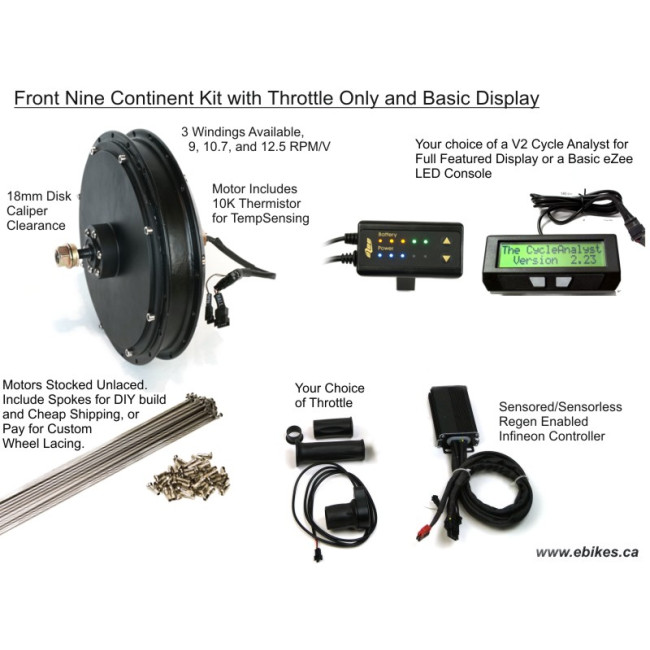

Front 9C+ 27XX series motor kit. Includes powerful direct drive front hub motor with 0.35mm laminations for reduced rolling drag, Statorade for heat dissipation, a 20-35A regen capable Grinfineon controller, wiring accessories, and a V2 Cycle Analyst, and your choice of throttle. This is a value kit with great all around performance.

For a full explanation of the various drop-down choices and a comparison of this package versus other motor options, see our Grin Kits Info Page

Specifications

Rim20_Alex

Actual Weight (kg)

0.48

Rim Width (mm)

Spoke Holes

36 Hole

Nominal Rim Size

20" (ISO 406)

Rim ERD

390

Rim Brake Compatible

Yes

Valve Type

Schrader

Rim24J31

Actual Weight (kg)

0.7000

Rim Width (mm)

Spoke Holes

36 Hole

Nominal Rim Size

24" (ISO 507)

Rim ERD

477

Rim Brake Compatible

Valve Type

Schrader

Rim26J31

Actual Weight (kg)

0.7800

Rim Width (mm)

Spoke Holes

36 Hole

Nominal Rim Size

26" (ISO 559)

Rim ERD

527

Rim Brake Compatible

Valve Type

Schrader

Rim26_DM18

Actual Weight (kg)

0.53

Rim Width (mm)

Spoke Holes

36 Hole

Nominal Rim Size

26" (ISO 559)

Rim ERD

543

Rim Brake Compatible

Yes

Valve Type

Schrader

Rim26_Fat

Actual Weight (kg)

1.06

Rim Width (mm)

Spoke Holes

36 Hole

Nominal Rim Size

26" (ISO 559)

Rim ERD

537

Rim Brake Compatible

Valve Type

Schrader

Rim700_Alex

Actual Weight (kg)

0.80

Rim Width (mm)

Spoke Holes

36 Hole

Nominal Rim Size

700C (ISO 622)

Rim ERD

606

Rim Brake Compatible

Yes

Valve Type

Schrader

Rim700_DM18

Actual Weight (kg)

0.6

Rim Width (mm)

Spoke Holes

36 Hole

Nominal Rim Size

700C (ISO 622)

Rim ERD

607

Rim Brake Compatible

Yes

Valve Type

Schrader

Phaserunner_MT

Dimensions (L x W x H, mm)

99 x 40 x 34

Actual Weight (kg)

0.26

Max Regen Voltage (V)

Max Battery Amps (A)

Max Phase Amps (A)

Battery Range (V)

30-90

Connector(s)

Anderson, JST-SM, MT60, TRRS, XT60

Phaserunner_MT_Bk

Dimensions (L x W x H, mm)

99 x 40 x 34

Actual Weight (kg)

0.26

Max Battery Amps (A)

Max Phase Amps (A)

Battery Range (V)

30-90

Connector(s)

Anderson, JST-SM, MT60, TRRS, XT60
