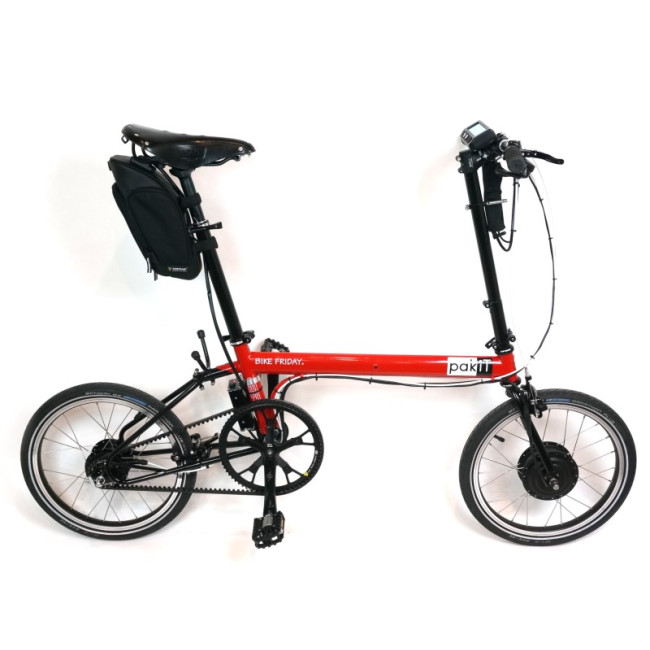

Bike Friday 16" Kit

Front 16" (ETRTO 349) 250-500W Geared Motor Kit for Bike Friday pakiT

Out of stock

SKU
K-BF16
Customize Bike Friday 16" Kit
MG311 Fast Wind, Unlaced
Yes, Include WheelBuild
No Display

* Required Fields

Your Customization
Full Electrified Bike Friday pakIT
Summary

    Front 250-500W Geared Conversion Kit. Includes small 2.7kg Bafang G01 hub with controller bracket, cable lengths, and connectors sized to be a perfect fit on the Bike Friday pakiT travel bike.

    Specifications
    MG311 Fast Wind, Unlaced
    Country of Manufacture
    China
    Motor KV (RPM / V)
    10.5
    Phase Resistance (Ohm)
    0.098
    Hysteresis Losses (N-m)
    0.666
    Eddy Losses (N-m / rad/sec)
    0.015
    Flange Spoke Diameter (mm)
    123
    Magnetic Pole Pairs (Phaserunner)
    88
    Actual Weight (kg)
    2.26
    Disc Brake Compatible
    Yes
    Motor Power Range (Watts)
    250-500
    Axle Length (O.L.D.)
    100
    Spoke Holes
    36 Hole
    Motor Type
    Geared
    Speedo Poles (for CA)
    6
    Thermistor Style
    10K NTC, B ~3450 +10K pullup w/Speedo
    Axle Threads
    3/8" x 26 tpi
    V6 Baserunner_Z9
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Max Phase Amps (A)
    55
    Max Battery Amps (A)
    30
    Max Regen Voltage (V)
    60
    Battery Range (V)
    20-60
    Dimensions (L x W x H, mm)
    90 x 55 x 15
    Actual Weight (kg)
    0.18
    V6 Baserunner_Z9 Stand Alone
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Max Phase Amps (A)
    55
    Max Battery Amps (A)
    30
    Max Regen Voltage (V)
    60
    Battery Range (V)
    20-60
    Dimensions (L x W x H, mm)
    98 x 60 x 15
    Actual Weight (kg)
    0.28
    24 Pole PAS (Short 90cm Cable)
    Country of Manufacture
    China
    Actual Weight (kg)
    .06
    Connector(s)
    JST-SM
    PAS Poles
    24
    PAS Encoder Type
    2 Wire (Quadrature)
    Fischer AG Torque Sensing BB, 127mm
    Country of Manufacture
    Germany
    Actual Weight (kg)
    0.3300
    Connector(s)
    JST-SM, Higo MiniB
    PAS Poles
    18
    Torque Sensor Offset Voltage
    0.6
    PAS Encoder Type
    2 Wire (Quadrature)
    ERider68-T17 BB with 5 Arm Spider
    Country of Manufacture
    China
    Actual Weight (kg)
    1.06
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    Torque Sensor Offset Voltage
    1.5V
    PAS Encoder Type
    2 Wire (Quadrature)
    Thumb Throttle with Clamp (50cm Cable)
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.04
    3 Pin JST Cable Length (cm)
    50
    Right Half Twist Throttle (50cm Cable)
    Country of Manufacture
    China
    Actual Weight (kg)
    .180
    3 Pin JST Cable Length (cm)
    50
    Left Half Twist Throttle (50cm Cable)
    Country of Manufacture
    China
    Actual Weight (kg)
    .180
    3 Pin JST Cable Length (cm)
    50
    Right Full Twist Throttle (50cm Cable)
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.20
    3 Pin JST Cable Length (cm)
    50
    Left Full Twist Throttle (50cm Cable)
    Actual Weight (kg)
    0.22
    3 Pin JST Cable Length (cm)
    50
    36V 2A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.36
    Connector(s)
    ST3
    Charger Voltage
    36V (42.0V max)
    Charge Port Connector
    ST3
    36V 4A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.58
    Connector(s)
    ST3
    Charger Voltage
    36V (42.0V max)
    Charge Port Connector
    ST3
    36V 4A XLR Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.98
    Connector(s)
    XLR
    Charger Voltage
    36V (42.0V max)
    Charge Port Connector
    3 Pin XLR
    Satiator 12-63V, 0-8A with ST3 Adapter
    Actual Weight (kg)
    1.06
