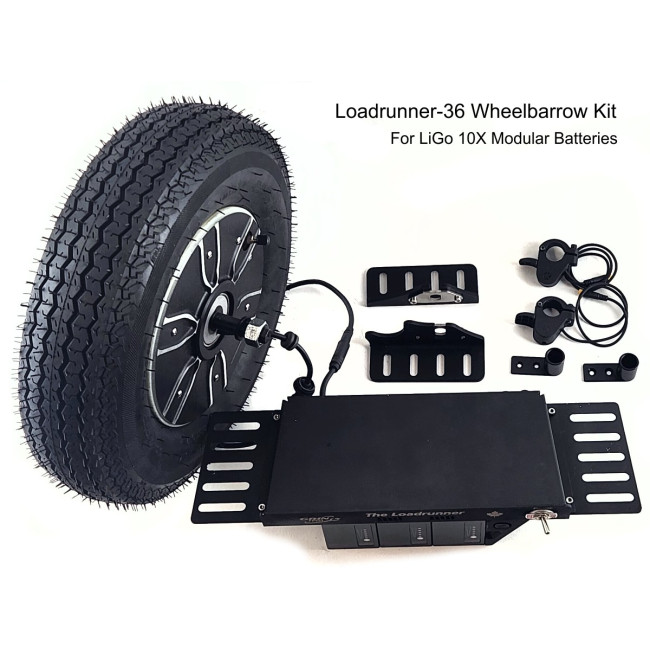

main product photo
Loading...

Loadrunner Wheelbarrow Kit with LiGo Batteries

Powerful and Universal Electric Wheelbarrow Conversion Kit. Powered by 1-3 pcs of Grin's LiGo 10X Battery Module.

PRE-ORDERS OPEN NOW!  SHIPPING JUNE 30th

From USD$1,007.00

To USD$1,112.00

In stock

SKU
KIT-LR36V
Add to Wish List Add to Compare
Customize Loadrunner Wheelbarrow Kit with LiGo Batteries
36V LiGo 10X Battery   + USD$195.00
Wheelbarrow Motor Mounting Kit
Loadrunner Wheelbarrow Drive for 36V Batteries
Thumb Throttle, Clamp. with HiGo 3 pin Connector
Wheelbarrow Bob
Flexible Ebike Cable Raceway

* Required Fields

Your Customization
Rear view showing clean kit installation on a wheelbarrow
Loadrunner Wheelbarrow Kit with LiGo Batteries

In stock

USD$1,007.00

Actual cruising speed/perfomance under any loading conditions is well modeled in our simulator.
Launch Motor Simulator with Loadrunner Wheelbarrow Kit with LiGo Batteries

Summary

    The Loaderunner is a convenient DIY kit for converting an existing wheelbarrow into a powerful electric hauler. It moves heavy loads uphill with ease while the regenerative braking feature controls your descents as well. The CNC'd mounting brackets align with the majority of wheelbarrow chassis, and all the control electronics are in a rugged metal enclosure that secures between the bucket and handles.

    The 36V model includes a rail on the bottom that holds 1, 2, or 3 pcs of our LiGo 10X 100Wh battery modules, depending on how much usage you need in between charges.  For most tradespeople a 3 LiGo pack will last for a full day of typical usage.

    There are two robust thumb throttles and throttle mounts that allow you to control acceleration with one hand, and regenerative braking with the other.  Included cable raceways ensure an extremely neat installation with nothing to tangle or snag as you maneuver around.

    Specifications
    Geared Wheelbarrow Motor, No Tire
    Country of Manufacture
    China
    Motor KV (RPM / V)
    3.1
    Hysteresis Losses (N-m)
    1.36
    Eddie Losses (N-m / rad/sec)
    .0136
    Magnetic Pole Pairs (Phaserunner)
    237
    Actual Weight (kg)
    4.2
    Disk Brake Compatible
    Yes
    Nominal Rim Size
    16" (ISO 305)
    Motor Power Range (Watts)
    250-500
    Axle Length (O.L.D.)
    150
    Spoke Holes
    None
    Motor Type
    Geared
    Motor Nominal Wheel Size
    16" (ISO 305)
    Thermistor Style
    10K NTC, B~3450 + 10K Pullup (Bafang Style)
    Geared Wheelbarrow Motor with Regular Tire
    Country of Manufacture
    China
    Motor KV (RPM / V)
    3.1
    Hysteresis Losses (N-m)
    1.36
    Eddie Losses (N-m / rad/sec)
    .0136
    Magnetic Pole Pairs (Phaserunner)
    237
    Actual Weight (kg)
    7
    Disk Brake Compatible
    Yes
    Nominal Rim Size
    16" (ISO 305)
    Motor Power Range (Watts)
    250-500
    Axle Length (O.L.D.)
    150
    Spoke Holes
    None
    Motor Type
    Geared
    Motor Nominal Wheel Size
    16" (ISO 305)
    Thermistor Style
    10K NTC, B~3450 + 10K Pullup (Bafang Style)
    Geared Wheelbarrow Motor with Agricultural Tire
    Country of Manufacture
    China
    Motor KV (RPM / V)
    3.1
    Hysteresis Losses (N-m)
    1.36
    Eddie Losses (N-m / rad/sec)
    .0136
    Magnetic Pole Pairs (Phaserunner)
    237
    Actual Weight (kg)
    7
    Disk Brake Compatible
    Yes
    Nominal Rim Size
    16" (ISO 305)
    Motor Power Range (Watts)
    250-500
    Axle Length (O.L.D.)
    150
    Spoke Holes
    None
    Motor Type
    Geared
    Motor Nominal Wheel Size
    16" (ISO 305)
    Thermistor Style
    10K NTC, B~3450 + 10K Pullup (Bafang Style)
    36V LiGo 10X Battery
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Full Charge Voltage
    42
    Capacity (Amp-Hours)
    2.75
    Internal Resistance (Ohms)
    0.40
    Cell Type
    LG
    Watt-hours at 1C Discharge
    99
    Dimensions (L x W x H, mm)
    55 x 78 x 89
    Actual Weight (kg)
    0.7
    Nominal Voltage
    36 Volt (10s)
    Battery Mount Location
    Frame Mount, Rear Rack
    Connector(s)
    XT60
    36V 2A XT60 Charger
    Country of Manufacture
    China
    Dimensions (L x W x H, mm)
    123 x 63 x 36
    Actual Weight (kg)
    0.4
    Connector(s)
    XT60
    Charger Voltage
    36V (42.0V max)
    Charge Port Connector
    XT60
    Loadrunner Wheelbarrow Drive for 36V Batteries
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Max Phase Amps (A)
    55
    Max Battery Amps (A)
    30
    Max Regen Voltage (V)
    60
    Battery Range (V)
    20-60
    Dimensions (L x W x H, mm)
    450x125x45
    Actual Weight (kg)
    1.26
    Z9 Motor Cable Length (cm)
    70
    Thumb Throttle, Clamp. with HiGo 3 pin Connector
    Country of Manufacture
    China
    Actual Weight (kg)
    0.04
    3 Pin HiGo Throttle Cable Length (cm)
    50
    More Information
    Product Attachments
    Wheelbarrow Motor Dimensional Diagram [PDF] (68.88 kB)
    Wheelbarrow 3D CAD [IGS] (3.39 MB)
    Wheelbarrow 3D CAD [IGS] (3.39 MB)
    Wheelbarrow Motor Dimensional Diagram [PDF] (68.88 kB)
    Wheelbarrow 3D CAD [IGS] (3.39 MB)
    Wheelbarrow Motor Dimensional Diagram [PDF] (68.88 kB)
    LiGo10X 6x Baserunner Dock R0[3D .STEP] (2.98 MB)
    LiGo10X 6x Basic Dock R0[3D .STEP] (3.04 MB)
    LiGo10X 5x Basic Dock R0[3D .STEP] (2.96 MB)
    LiGo10X 5x Baserunner Dock R0[3D .STEP] (2.90 MB)
    LiGo10X 4x Basic Dock R0[3D .STEP] (2.92 MB)
    LiGo10X 4x Baserunner Dock R0[3D .STEP] (2.87 MB)
    LiGo10X 3x Basic Dock R0[3D .STEP] (2.87 MB)
    LiGo10X 3x Baserunner Dock R0[3D .STEP] (2.81 MB)
    LiGo10X 2x Basic Dock R0[3D .STEP] (2.86 MB)
    LiGo10X 2x Baserunner Dock R0[3D .STEP] (2.80 MB)
    LiGo 10X User Manual (Rev1.1) (2.71 MB)
    LiGo 10X Packs Mechanical Drawing D1[PDF] (424.31 kB)
    Ligo 10X Single Module File [3D .STEP] (10.75 MB)
    Assembled Wheelbarrow Motor with Brackets [3D .STEP] (15.44 MB)
    Loaderunner Control Box Dimensions [PDF] (51.19 kB)
