Advanced Electric Wheelbarrow Conversion Kit

Early-Release Kit for DIY Electric Wheelbarrow Builds

From USD$615.00

To USD$1,378.00

In stock

SKU
KIT-WB_Adv
Customize Advanced Electric Wheelbarrow Conversion Kit
V5 Baserunner_Z9 Stand Alone
Flat Baserunner Mounting Plate
CA3-WPx
CA3_MFSwitch for CA3-WPx

* Required Fields

Your Customization

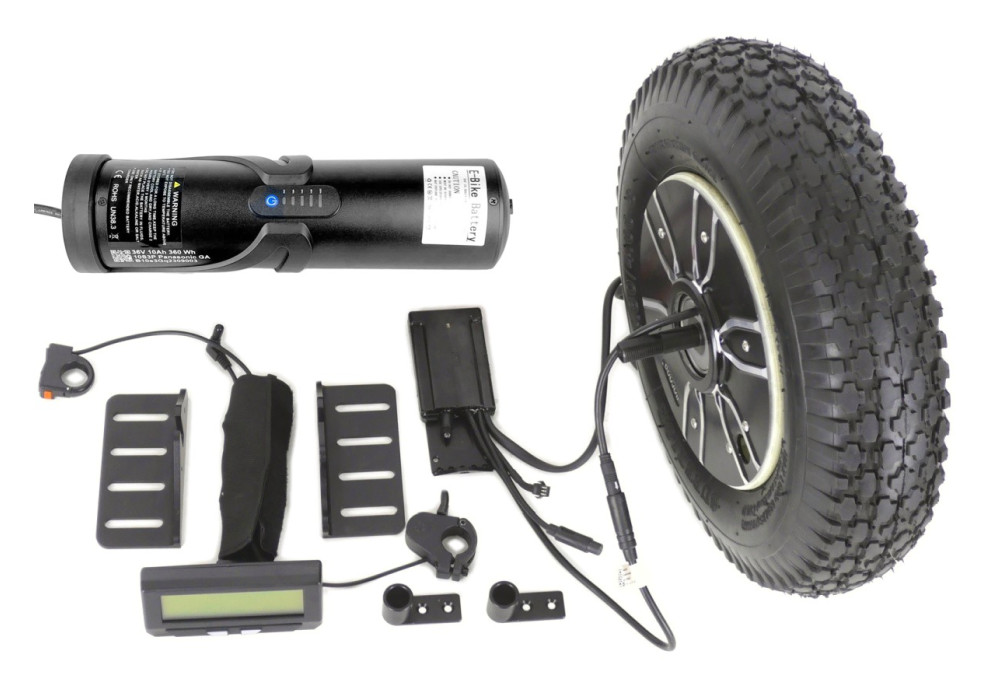

Grin's Advanced Electric Wheelbarrow Kit with CA3 Control
Advanced Electric Wheelbarrow Conversion Kit

In stock

USD$615.00

Actual cruising speed/perfomance under any loading conditions is well modeled in our simulator.
Launch Motor Simulator with Advanced Electric Wheelbarrow Conversion Kit

Summary

    This is bundle system for putting together a DIY electric wheelbarrow with a CA3-WP device to see speed, motor temperature, and provide advanced controls for regen and speed limiting. The CNC'd mounting brackets can attach to most wheelbarrows with a wooden handle.  The rest of the components are currently based on our ebike hardware and are not especially optimized for wheelbarrow installations, but can be made to work just fine.

    We expect to further refine this system as a more ready-made wheelbarrow kit over the course of the year but for now any DIY included person familiar with our hardware should be able to use these components to make a viable system.

    Geared Wheelbarrow Motor, No Tire
    Actual Weight (kg)
    4.2
    Motor MFG
    Bafang
    Motor Power Range (Watts)
    250-500
    Motor KV (RPM / V)
    3.1
    Disk Brake Compatible
    Yes
    Connector(s)
    Z910
    Thermistor Style
    10K NTC, B~3450 + 10K Pullup (Bafang Style)
    Axle Length (O.L.D.)
    150
    Spoke Holes
    0
    Motor Type
    Geared
    Magnetic Pole Pairs (Phaserunner)
    237
    Hysteresis Losses (N-m)
    1.36
    Eddie Losses (N-m / rad/sec)
    .0136
    Geared Wheelbarrow Motor with Regular Tire
    Actual Weight (kg)
    7
    Motor MFG
    Bafang
    Motor Nominal Wheel Size
    16" (ISO 305)
    Motor Power Range (Watts)
    250-500
    Motor KV (RPM / V)
    3.1
    Disk Brake Compatible
    Yes
    Connector(s)
    Z910
    Thermistor Style
    10K NTC, B~3450 + 10K Pullup (Bafang Style)
    Axle Length (O.L.D.)
    150
    Spoke Holes
    0
    Motor Type
    Geared
    Magnetic Pole Pairs (Phaserunner)
    237
    Hysteresis Losses (N-m)
    1.36
    Eddie Losses (N-m / rad/sec)
    .0136
    Geared Wheelbarrow Motor with Agricultural Tire
    Actual Weight (kg)
    7
    Motor MFG
    Bafang
    Motor Nominal Wheel Size
    16" (ISO 305)
    Motor Power Range (Watts)
    250-500
    Motor KV (RPM / V)
    3.1
    Disk Brake Compatible
    Yes
    Connector(s)
    Z910
    Thermistor Style
    10K NTC, B~3450 + 10K Pullup (Bafang Style)
    Axle Length (O.L.D.)
    150
    Spoke Holes
    0
    Motor Type
    Geared
    Magnetic Pole Pairs (Phaserunner)
    237
    Hysteresis Losses (N-m)
    1.36
    Eddie Losses (N-m / rad/sec)
    .0136
    V5 Baserunner_Z9 Stand Alone
    Manufacturer
    Grin
    Dimensions (L x W x H, mm)
    98 x 60 x 15
    Actual Weight (kg)
    0.28
    Max Regen Voltage (V)
    60
    Max Battery Amps (A)
    30
    Max Phase Amps (A)
    55
    Battery Range (V)
    20-60
    Connector(s)
    Anderson, HiGo 0812(WP8), TRRS, Z910, HiGo MiniB
    CA3-WPx
    Actual Weight (kg)
    0.3
    36V 10Ah Bottle Battery
    Actual Weight (kg)
    2.2
    Dimensions (L x W x H, mm)
    295x78x78
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    36 Volt (10s)
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    9.8
    Watt-hours at 1C Discharge
    345
    Cell Type
    Panasonic GA 10S x 4P
    Internal Resistance (Ohms)
    0.19
    Connector(s)
    Anderson, ST3
    36V 14Ah Bottle Battery
    Actual Weight (kg)
    2.7
    Dimensions (L x W x H, mm)
    363x78x78
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    36 Volt (10s)
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    13.3
    Watt-hours at 1C Discharge
    460
    Cell Type
    Panasonic GA 10S x 4P
    Internal Resistance (Ohms)
    0.160
    Connector(s)
    Anderson, ST3
    36V 2A ST3 Charger
    Actual Weight (kg)
    0.36
    Connector(s)
    ST3
    Charge Port Connector
    ST3
    Charger Voltage
    36V (42.0V max)
    36V 4A ST3 Charger
    Actual Weight (kg)
    0.58
    Connector(s)
    ST3
