Bowhead Ranger Dual Motor Kit

OEM Dual Motor Kit for Bowhead Ranger Quad Bike Builds. Simplifies Purchasing Process

From USD$2,284.00

In stock

SKU

KIT-Grin_BHR

Customize Bowhead Ranger Dual Motor Kit

2X Front motors

V3 Front All-Axle, Slw Black

Quantity

2X Disc Spacers

Disc Spacer 1mm

Quantity

2X Statorades

Inject Motor with Statorade

Quantity

Dual Controller Adapter

Main9 Dual Controller Splitter

Quantity

For Carbon Fiber - Remove Next Three Items Below

2X 24Inch Rim

Quantity

Spokes

None

Sapim Strong 13-14g Butted Spoke, Black + USD$1.50

Quantity

2X Wheelbuilds

Quantity

2X Controller Colour

Quantity

Controller Heatsink

Phaserunner Heatsink Kit

Quantity

600c Display

Small APT Colour Handlebar Display

Quantity

Main9 Harness

Main9 Superharness

Quantity

Bidirectional Throttle

Bidirectional Twist Throttle with HiGo 3 pin Connector Plug

Quantity

5 Pin Extension

5 Pin HiGo MiniB Extension Cable, 1m

Quantity

3 Pin Extension

3 Pin HiGo MiniB Extension Cable, 1m

Quantity

Dual Parallel Battery Cable

Battery Cable for Parallel Connection

Quantity

Fwd Rev Cable

6 Pin Higo Custom Forwards / Reverse Cable

Quantity

Other Accessories

1 x TTL-USB Programming Cable + USD$14.75

1 x Handlebar Phone Mount and Charger + USD$42.00

1 x Laser Mark 250W on Motor + USD$16.25

* Required Fields

Your Customization

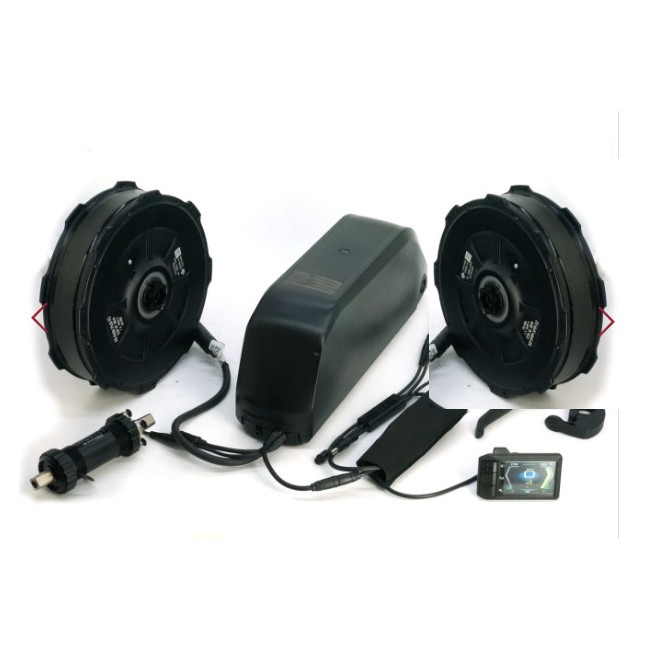

This is not a real image of the dual kit contents, just something quick and dirty to show two motors.

Bowhead Ranger Dual Motor Kit

In stock

USD$2,284.00

Qty:

Actual cruising speed/perfomance under any loading conditions is well modeled in our simulator.
Launch Motor Simulator with Bowhead Ranger Dual Motor Kit

Summary

Additional Information

This is a kit bundle curated by Bowhead with dual front all-axle hub motors and all the associated wiring to convert their range devices into electric assist.

Specifications

V3 Front All-Axle, Slw Black

Manufacturer

Grin

Country of Manufacture

Canada

Motor KV (RPM / V)

7.5

Phase Resistance (Ohm)

0.268

Hysteresis Losses (N-m)

0.6

Eddy Losses (N-m / rad/sec)

0.005

Flange Spoke Diameter (mm)

214

Magnetic Pole Pairs (Phaserunner)

Actual Weight (kg)

4.05

Disc Brake Compatible

Yes

Motor Power Range (Watts)

500-1000

Axle Length (O.L.D.)

100

Spoke Holes

32 Hole

Motor Type

Direct Drive

Speedo Poles (for CA)

Thermistor Style

10K NTC, Beta ~3450

L1019 Motor Cable Length (cm)

Main9 Dual Controller Splitter

Manufacturer

Grin

Country of Manufacture

Canada

Actual Weight (kg)

0.052

Rim24_DM30_32H

Manufacturer

China

Country of Manufacture

China

Rim ERD

494

Rim Width (mm)

Actual Weight (kg)

0.56

Rim Brake Compatible

Yes

Nominal Rim Size

24" (ISO 507)

Valve Type

Schrader

Spoke Holes

32 Hole

Phaserunner V6 L10 - Stainless Silver Shell

Manufacturer

Grin

Country of Manufacture

Canada

Max Phase Amps (A)

Max Battery Amps (A)

Battery Range (V)

30-90

Dimensions (L x W x H, mm)

99 x 40 x 34

Actual Weight (kg)

0.26

Phaserunner V6 L10 - Black Metal Shell

Manufacturer

Grin

Country of Manufacture

Canada

Max Phase Amps (A)

Max Battery Amps (A)

Battery Range (V)

30-90

Dimensions (L x W x H, mm)

99 x 40 x 34

Actual Weight (kg)

0.26

Small APT Colour Handlebar Display

Country of Manufacture

China

5 Pin HiGo Display Cable Length (cm)

Main9 Superharness

Manufacturer

Grin

Country of Manufacture

Canada

Actual Weight (kg)

0.1

Main 9 Pin Cable Length (cm)

3 Pin HiGo Throttle Cable Length (cm)

10.5

4 Pin HiGo Ebrake Cable Length (cm)

10.5

5 Pin HiGo Display Cable Length (cm)

10.5

DC 5.5 x 2.1mm Male Cable Length (cm)

7.5 Rear, 11.5 Front

Bidirectional Twist Throttle with HiGo 3 pin Connector Plug

Country of Manufacture

China

Actual Weight (kg)

0.25

3 Pin HiGo Throttle Cable Length (cm)

Handlebar Phone Mount and Charger

Country of Manufacture

China

Minimum Input Voltage (V)

Max Input Voltage (V)

Connector / Jack

5.5 x 2.1mm DC Jack

Actual Weight (kg)

0.165

Output Voltage

Output Current (A)

Product Attachments
