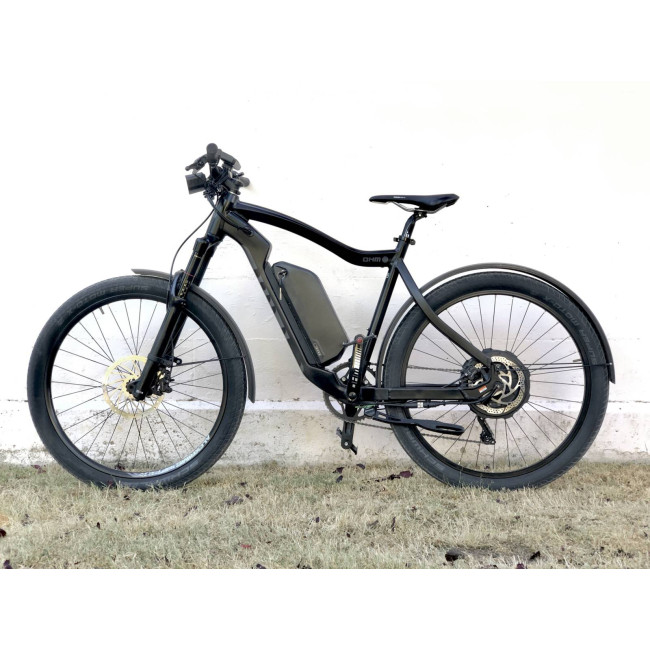

Performance Hub Motor Electric Mountain Bike

Custom Built Front Suspension Mountain Bike with Grin All-Axle Rear Hub Motor. Available in 16.5" and 20.5" frame sizes with several colour options.

From USD$3,584.00

To USD$4,166.00

Out of stock

SKU
BUNDLE-eMtb
Customize Performance Hub Motor Electric Mountain Bike
Ohm Bike Frameset
V2 Rear All-Axle, Std
V2 142mm Thru-Axle Adapter Kit
V2 Rear Grin Hub Torque Arm Kit
Inject Motor with Statorade
Grin WheelBuild
Rim275_DM30
Sapim Strong 13-14g Butted Spoke, Black
10 Speed Cassette, 11-32 Tooth
ERider73-T17 BB with 52T Chainring
CA3-WPx
CA3_MFSwitch for CA3-WPx
Steer Tube Mounted Bracket for Cycle Analysts
V6 Baserunner_L10
Magura MT5e Brake
Magura 6-Bolt Rotor 203

* Required Fields

Your Customization
Performance Hub Motor Electric Mountain Bike
Performance Hub Motor Electric Mountain Bike

Out of stock

USD$3,584.00

Summary

    Summary:

    This is a lightweight alloy mountain bike frame originally designed by Ohm bikes in Vancouver to pair with the BionX D hub motor system.  With BionX out of business, we've got an opportunity to outfit them with a Grin system that has all the same performance capabilities with none of the proprietary downsides. This is a unique change to get our flushed-out modern hub motor system already installed in a top-of-the-line ebike.


    Features include:

    • Throttle modulated regenerative braking
    • Back-pedal regenerative braking
    • Silent, Direct Drive, zero mainenance rear Grin hub motor
    • Up to 80 Nm motor torque
    • Pedal torque control modes (plus throttle as well)
    • Non-proprietary hardware allows all kinds of future upgrades and component swaps
    • ~1KWhr Battery offers 60-120km range
    • Tons of performance configurability via Cycle Analyst
    • Weight: 58 Lbs

    Component Specs:

    • Frame Size: 20.5" (XL & Large) and 16.5" (Medium & Small)
    • Frame Colour:  Black, Light Grey, Olive Gren
    • Front Fork: Rockshox eMTB Suspension 35mm Stanchion 140mm-150mm
    • Brakes: Magura MT5e Hydraulic Front / Rear, 203mm Rotor
    • Bottom Bracket: ERider T17 with torque sensor
    • Shifters: Sram 10 Speed
    • Derailleur: Sram Gx 10 Speed
    • Cassette: Sram 11-36 10 Speed
    • Fenders: Front and Rear, Aluminum Extrusion
    • Battery: 48V, ~1KWhr
    • Tires: Schwalbe Super MotorX, 27.5"
    • Kickstand: Included
    • Rear Light: Included
    V2 Rear All-Axle, Std
    Actual Weight (kg)
    4.3
    Manufacturer
    Grin
    Motor Power Range (Watts)
    500-1000
    Motor KV (RPM / V)
    10.0
    Phase Resistance (Ohm)
    0.145
    Disk Brake Compatible
    Yes
    Connector(s)
    L1019
    Thermistor Style
    10K NTC, B~3900
    Axle Length (O.L.D.)
    138
    Spoke Holes
    32 Hole
    Motor Type
    Direct Drive
    Flange Spoke Diameter (mm)
    214
    Magnetic Pole Pairs (Phaserunner)
    23
    Hysteresis Losses (N-m)
    0.6
    Eddie Losses (N-m / rad/sec)
    0.005
    Rim275_DM30
    Actual Weight (kg)
    0.76
    Rim Width (mm)
    30
    Spoke Holes
    36 Hole
    Nominal Rim Size
    650B (ISO 584)
    Rim ERD
    571
    Rim Brake Compatible
    Yes
    Valve Type
    Schrader
    10 Speed Cassette, 11-32 Tooth
    Actual Weight (kg)
    0.364
    Cluster Type
    Freehub Cluster
    ERider73-T17 BB with 52T Chainring
    Actual Weight (kg)
    1.3
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    PAS Encoder Type
    2 Wire (Quadrature)
    Torque Sensor Offset Voltage
    1.5V
    CA3-WPx
    Actual Weight (kg)
    0.3
    V6 Baserunner_L10
    Manufacturer
    Grin
    Dimensions (L x W x H, mm)
    90 x 55 x 15
    Actual Weight (kg)
    0.18
    Max Regen Voltage (V)
    60
    Max Battery Amps (A)
    35
    Max Phase Amps (A)
    80
    Battery Range (V)
    20-60
    Connector(s)
    HiGo 0812(WP8), Higo Signal C, Mains D1109
    48V 19Ah Downtube Battery
    Actual Weight (kg)
    4.9
    Dimensions (L x W x H, mm)
    365x100x124
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    48 Volt (13s)
    Full Charge Voltage
    54.6
    Capacity (Amp-Hours)
    19
    Cell Type
    Samsung INR27100-50G 13S x 4P
    Internal Resistance (Ohms)
    0.12
    Connector(s)
    Anderson, ST3
    52V 20Ah Downtube Battery
    Actual Weight (kg)
    5.38
    Dimensions (L x W x H, mm)
    370x89x137
    Battery Mount Location
    Frame Mount
    Nominal Voltage
    52 Volt (14s)
    Full Charge Voltage
    58.8
    Capacity (Amp-Hours)
    19.8
    Cell Type
    Panasonic GA 14S x 6P
    Internal Resistance (Ohms)
    0.12
    Connector(s)
    Anderson, ST3
    48V 2A ST3 Charger
    Actual Weight (kg)
    0.56
    Dimensions (L x W x H, mm)
    169x71x40
    Connector(s)
    ST3
    Charge Port Connector
    ST3
    Charger Voltage
    48V (54.6V max)
    52V 4A ST-3 Charger
    Actual Weight (kg)
    0.84
    Connector(s)
    ST3
    Satiator Upgrade with ST3 Adapter
    Actual Weight (kg)
    1.06
    SPL-01 1900 Lumen Ebike Light
    Actual Weight (kg)
    0.12
    Light Source
    Multiple LEDs
    Lumens Output
    1900
    Turn-On Voltage (reduced power)
    8
    Minimum Input Voltage (V)
    12
    Max Input Voltage (V)
    60
    Peak Input Power (Watts)
    20
    Connector / Jack
    DC 5.5x2.1mm
