Phaserunner_MT Controller

Grin Phaserunner Field Oriented Controller, New V3 Model with WP8 CA Plug - Stainless Silver and Black Metal Shell. 90V Max and 96 A Peak Phase Currents (~45A Continuous).

If you have a CA-DP you will need the WP8_JST adapter.

From USD$0.00

To USD$64.00

Out of stock

SKU
BUNDLE-Phaserunner_MT
Notify me when this product is in stock
Add to Wish List Add to Compare
Customize Phaserunner_MT Controller

* Required Fields

Your Customization
Phasernuner_MT V3 Side View
Phaserunner_MT Controller

Out of stock

USD$0.00

Summary
    Phaserunner_MT
    ETA
    Nov. 14, 2022
    Dimensions (L x W x H, mm)
    99 x 40 x 34
    Actual Weight (kg)
    0.26
    Max Regen Voltage (V)
    90
    Max Battery Amps (A)
    40
    Max Phase Amps (A)
    96
    Battery Range (V)
    30-90
    Connector(s)
    Anderson, JST-SM, MT60, TRRS, XT60
    Phaserunner_MT_Bk
    ETA
    Nov. 14, 2022
    Dimensions (L x W x H, mm)
    99 x 40 x 34
    Actual Weight (kg)
    0.26
    Max Battery Amps (A)
    40
    Max Phase Amps (A)
    96
    Battery Range (V)
    30-90
    Connector(s)
    Anderson, JST-SM, MT60, TRRS, XT60
    More Information
    Phaserunner Dimensional Diagram (111.82 kB)
    Phaserunner User Manual V2 (1.45 MB)
    Phaserunner V3 Updates (538.75 kB)
    Frankenrunner User Manual (1.92 MB)
    Phaserunner Dimensional Diagram (111.82 kB)
    Phaserunner Dimensional Diagram (111.82 kB)

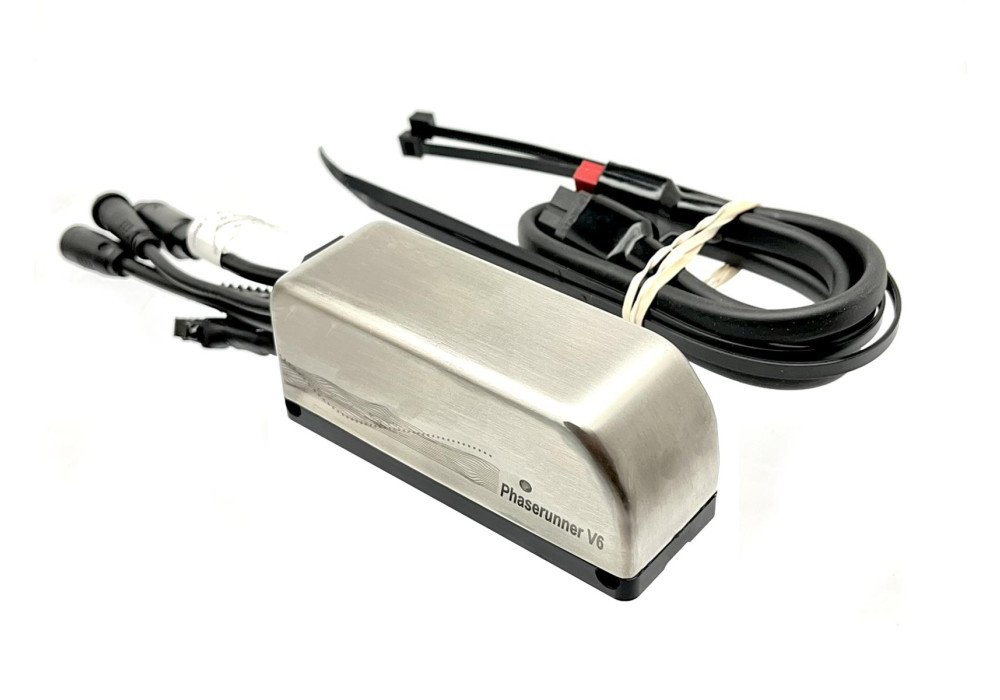

    Phaserunner with stainless steel shell and MT60 connector for three phase power, and JST plugs for hall sensors and temp/signal signals.

    This new V3 model uses the 8 pin waterproof CA plug to mate with the CA3-WP device instead of the original 6-pin JST plug, if you have an original CA3-DP or CA3-DPS you will need to also get the WP8->JST adapter.

    Must be setup with via a computer to mate and configure with a given motor if they are not purchased together, and this requires the USB->TTL communications cable if you don't already have that. Full Phaserunner Information Page.
