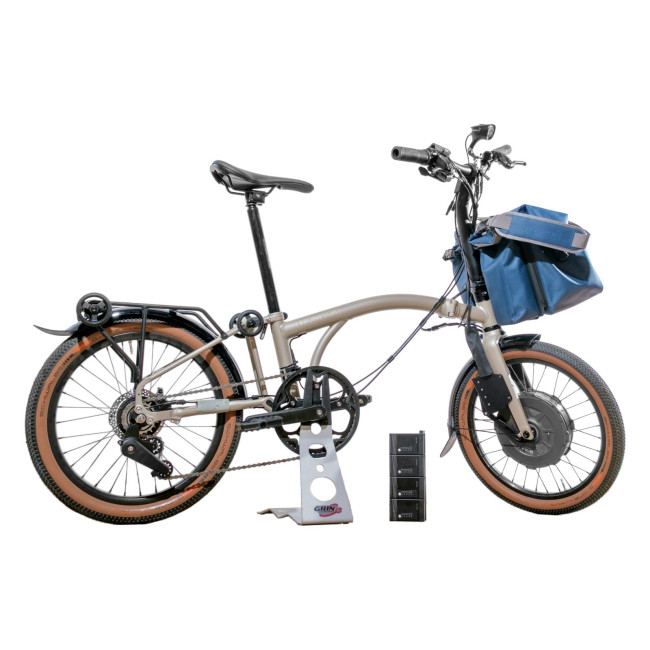

main product photo
Loading...

Brompton G-Line Front Hub Conversion Kit

Front All-Axle Conversion Kit for Brompton G-Line Bicycle Series.  Includes Options for Air Travel LiGo 10X Batteries, Torque Sensor, and Regenerative Braking

Full Product Information Page



From USD$1,111.00

In stock

SKU
KIT-Grin_GL
Add to Wish List Add to Compare
Customize Brompton G-Line Front Hub Conversion Kit
Torque Arm with Brompton G Line Fork Mount Plate
12mm Thru-Axle (100mm) Front Adapters V3
140mm Brake Disc Rotor
V6 Baserunner_L10 Stand-Alone
Superharness for Brompton
G-Line Superharness Mount

* Required Fields

Your Customization
All-Axle Front Motor fits on this Brompton! Baserunner L10 mounting plate doubles up neatly as a sturdy Torque Arm mount also.
Brompton G-Line Front Hub Conversion Kit

In stock

USD$1,111.00

Actual cruising speed/perfomance under any loading conditions is well modeled in our simulator.
Launch Motor Simulator with Brompton G-Line Front Hub Conversion Kit

Summary

    This is a front hub motor system for Brompton's new G-Line bike series. It blows the socks off of Brompton's own electric offering.

    • Integrated controller mount and torque arm off front fork
    • Options for torque sensor, basic PAS, or throttle only
    • Bi-directional throttle for powerful regenerative braking
    • Optimized cable lengths and routing for tidy installation
    • Bring anywhere from 300Wh to 800Wh of battery while you travel



    Specifications
    V3 Front All-Axle, Std Black
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Motor KV (RPM / V)
    10.0
    Phase Resistance (Ohm)
    0.145
    Hysteresis Losses (N-m)
    0.6
    Eddy Losses (N-m / rad/sec)
    0.005
    Flange Spoke Diameter (mm)
    214
    Magnetic Pole Pairs (Phaserunner)
    23
    Actual Weight (kg)
    4.05
    Disc Brake Compatible
    Yes
    Motor Power Range (Watts)
    500-1000
    Axle Length (O.L.D.)
    100
    Spoke Holes
    32 Hole
    Motor Type
    Direct Drive
    Speedo Poles (for CA)
    23
    Thermistor Style
    10K NTC, Beta ~3450
    L1019 Motor Cable Length (cm)
    26
    V3 Front All-Axle, Std Silver
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Motor KV (RPM / V)
    10.0
    Phase Resistance (Ohm)
    0.145
    Hysteresis Losses (N-m)
    0.6
    Eddy Losses (N-m / rad/sec)
    0.005
    Flange Spoke Diameter (mm)
    214
    Magnetic Pole Pairs (Phaserunner)
    23
    Actual Weight (kg)
    4.05
    Disc Brake Compatible
    Yes
    Motor Power Range (Watts)
    500-1000
    Axle Length (O.L.D.)
    100
    Spoke Holes
    32 Hole
    Motor Type
    Direct Drive
    Speedo Poles (for CA)
    23
    Thermistor Style
    10K NTC, Beta ~3450
    L1019 Motor Cable Length (cm)
    26
    V3 Front All-Axle, Fst Black
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Motor KV (RPM / V)
    12.0
    Phase Resistance (Ohm)
    0.10
    Hysteresis Losses (N-m)
    0.6
    Eddy Losses (N-m / rad/sec)
    0.005
    Flange Spoke Diameter (mm)
    214
    Magnetic Pole Pairs (Phaserunner)
    23
    Actual Weight (kg)
    4.05
    Disc Brake Compatible
    Yes
    Motor Power Range (Watts)
    500-1000
    Axle Length (O.L.D.)
    100
    Spoke Holes
    32 Hole
    Motor Type
    Direct Drive
    Speedo Poles (for CA)
    23
    Thermistor Style
    10K NTC, Beta ~3450
    L1019 Motor Cable Length (cm)
    26
    V3 Front All-Axle, Fst Silver
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Motor KV (RPM / V)
    12.0
    Phase Resistance (Ohm)
    0.10
    Hysteresis Losses (N-m)
    0.6
    Eddy Losses (N-m / rad/sec)
    0.005
    Flange Spoke Diameter (mm)
    214
    Magnetic Pole Pairs (Phaserunner)
    23
    Actual Weight (kg)
    4.05
    Disc Brake Compatible
    Yes
    Motor Power Range (Watts)
    500-1000
    Axle Length (O.L.D.)
    100
    Spoke Holes
    32 Hole
    Motor Type
    Direct Drive
    Speedo Poles (for CA)
    23
    Thermistor Style
    10K NTC, Beta ~3450
    L1019 Motor Cable Length (cm)
    26
    Rim20_ZAC19_32H
    Rim ERD
    394
    Rim Width (mm)
    24
    Actual Weight (kg)
    0.42
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    20" (ISO 406)
    Valve Type
    Presta, Schrader
    Spoke Holes
    32 Hole
    Rim20_Alex_32H
    Country of Manufacture
    China
    Rim ERD
    390
    Rim Width (mm)
    32
    Actual Weight (kg)
    0.48
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    20" (ISO 406)
    Valve Type
    Schrader
    Spoke Holes
    32 Hole
    V6 Baserunner_L10 Stand-Alone
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Max Phase Amps (A)
    80
    Max Battery Amps (A)
    35
    Max Regen Voltage (V)
    60
    Battery Range (V)
    20-60
    Dimensions (L x W x H, mm)
    90 x 63 x 15
    Actual Weight (kg)
    0.18
    L1019 Motor Cable Length (cm)
    38
    6 Pin HiGo Cable Length (cm)
    16.5
    WP 8 Pin Cable Length (cm)
    15.5
    Main 9 Pin Cable Length (cm)
    16
    Battery Cable Length (cm)
    80
    Mini OLED Display and Switch
    5 Pin HiGo Display Cable Length (cm)
    23
    Small APT Colour Handlebar Display
    Country of Manufacture
    China
    5 Pin HiGo Display Cable Length (cm)
    28
    Large APT Colour Central Display
    Country of Manufacture
    China
    5 Pin HiGo Display Cable Length (cm)
    17
    On/Off Switch Cable (cm)
    20
    Bidirectional Twist Throttle with HiGo 3 pin Connector Plug
    Country of Manufacture
    China
    Actual Weight (kg)
    0.25
    3 Pin HiGo Throttle Cable Length (cm)
    54
    Dyol Bidirectional Throttle, Right
    Country of Manufacture
    United States
    Actual Weight (kg)
    0.04
    3 Pin HiGo Throttle Cable Length (cm)
    35
    ERider68-T17 BB with 52T Chainring
    Actual Weight (kg)
    1.3
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    Torque Sensor Offset Voltage
    1.5V
    PAS Encoder Type
    2 Wire (Quadrature)
    ERider68-T17 BB with 5 Arm Spider
    Country of Manufacture
    China
    Actual Weight (kg)
    1.06
    Connector(s)
    Higo Signal C, JST-SM
    PAS Poles
    18
    Torque Sensor Offset Voltage
    1.5V
    PAS Encoder Type
    2 Wire (Quadrature)
    Fischer AG Torque Sensing BB, 127mm
    Country of Manufacture
    Germany
    Actual Weight (kg)
    0.3300
    Connector(s)
    JST-SM, Higo MiniB
    PAS Poles
    18
    Torque Sensor Offset Voltage
    0.6
    PAS Encoder Type
    2 Wire (Quadrature)
    36V LiGo 10X Battery
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Full Charge Voltage
    42
    Capacity (Amp-Hours)
    2.75
    Internal Resistance (Ohms)
    0.40
    Cell Type
    LG
    Watt-hours at 1C Discharge
    99
    Dimensions (L x W x H, mm)
    55 x 78 x 89
    Actual Weight (kg)
    0.7
    Nominal Voltage
    36 Volt (10s)
    Battery Mount Location
    Frame Mount, Rear Rack
    Connector(s)
    XT60
    36V 2A XT60 Charger
    Country of Manufacture
    China
    Dimensions (L x W x H, mm)
    123 x 63 x 36
    Actual Weight (kg)
    0.4
    Connector(s)
    XT60
    Charger Voltage
    36V (42.0V max)
    Charge Port Connector
    XT60
    Satiator 12-63V, 0-8A with XT60M Adapter
    Actual Weight (kg)
    1.06
    C7 Plus, 3W 80 Lux Ebike Light
    Country of Manufacture
    China
    Minimum Input Voltage (V)
    6
    Max Input Voltage (V)
    58
    Peak Input Power (Watts)
    3
    Light Source
    OSRAM
    Connector / Jack
    DC5.5x2.1
    Actual Weight (kg)
    .088
    Benex ET-3510, 6W, 100 Lux, 72V Compatible
    Country of Manufacture
    China
    Minimum Input Voltage (V)
    6
    Max Input Voltage (V)
    90
    Peak Input Power (Watts)
    6
    Light Source
    OSRAM
    Connector / Jack
    DC5.5x2.1
    Actual Weight (kg)
    .182
    Roxim Rear R1 ELight
    Country of Manufacture
    Taiwan
    Lumens Output
    20
    Minimum Input Voltage (V)
    6
    Max Input Voltage (V)
    90
    Peak Input Power (Watts)
    5.5
    Light Source
    Red Cree XBD
    Connector / Jack
    DC 5.5x2.1mm
    Actual Weight (kg)
    0.0690
    Handlebar Phone Mount and Charger
    Country of Manufacture
    China
    Minimum Input Voltage (V)
    12
    Max Input Voltage (V)
    95
    Connector / Jack
    5.5 x 2.1mm DC Jack
    Actual Weight (kg)
    0.165
    Output Voltage
    5V
    Output Current (A)
    2
