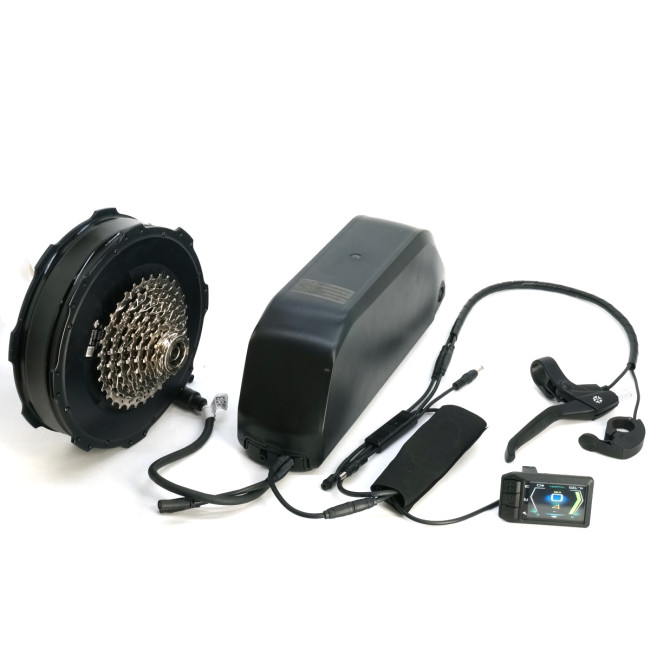

main product photo
Loading...

Rear Grin Kit - Standard

Grin's Rear All-Axle Conversion Kit with integrated torque sensor. Reduced option bundle package for grinkits store page.  For more options, see the Custom Kit



From USD$1,371.80 Regular Price USD$1,387.80

In stock

SKU
KIT-GrinR_Std
Add to Wish List Add to Compare
Customize Rear Grin Kit - Standard
V3 Rear All-Axle, Slw HG
V3 Rear Grin All-Axle Torque Arm Kit
Yes, Include WheelBuild
V6 Baserunner_L10
6 Pin HiGo MiniB Extension Cable, 24cm
Reention battery baseplate, machined to fit Baserunner
Small APT Colour Handlebar Display
Main9 Simpleharness
Bidirectional Twist Throttle with HiGo 3 pin Connector Plug

* Required Fields

Your Customization
Rear V3 All-Axle Motor Kit with Superharness and Colour Display
Rear Grin Kit - Standard

In stock

USD$1,371.80 Special Price USD$1,371.80

Actual cruising speed/perfomance under any loading conditions is well modeled in our simulator.
Launch Motor Simulator with Rear Grin Kit - Standard

Summary

    Grin All-Axle rear hub motor is our fastest and easiest to install drive platform, with an integrated torque arm and adapters that accommodate every dropout standard. These systems come preconfigured so that no computer hookup is required; just unbox, install, and go.

    • Motor weighs just 4kg. Lightest direct drive motor in this class
    • Compatible with quick release and thru-axle dropouts
    • Installs with minimal fuss on almost any bike frame
    • Integrated torque sensor on cassette, for smooth proportional assist
    • Powerful regenerative braking from bidirectional twist throttle
    • Controller neatly hidden inside battery cradle for clean install
    Specifications
    V3 Rear All-Axle, Slw HG
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Motor KV (RPM / V)
    7.5
    Phase Resistance (Ohm)
    0.250
    Hysteresis Losses (N-m)
    0.6
    Eddy Losses (N-m / rad/sec)
    0.005
    Flange Spoke Diameter (mm)
    214
    Magnetic Pole Pairs (Phaserunner)
    23
    Actual Weight (kg)
    4.3
    Disc Brake Compatible
    Yes
    Motor Power Range (Watts)
    500-1000
    Axle Length (O.L.D.)
    138
    Spoke Holes
    32 Hole
    Motor Type
    Direct Drive
    Speedo Poles (for CA)
    23
    Thermistor Style
    10K NTC, Beta ~3450
    L1019 Motor Cable Length (cm)
    26
    6 Pin HiGo Cable Length (cm)
    26
    7 Speed Cassette, 11-32 Tooth
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.226
    Cluster Type
    Freehub Cluster
    8 Speed Cassette, 11-32 Tooth
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.286
    Cluster Type
    Freehub Cluster
    9 Speed Cassette, 11-32 Tooth
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.364
    Cluster Type
    Freehub Cluster
    10 Speed Cassette, 11-32 Tooth
    Country of Manufacture
    Taiwan
    Actual Weight (kg)
    0.364
    Cluster Type
    Freehub Cluster
    Rim20_Alex_32H
    Country of Manufacture
    China
    Rim ERD
    390
    Rim Width (mm)
    32
    Actual Weight (kg)
    0.48
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    20" (ISO 406)
    Valve Type
    Schrader
    Spoke Holes
    32 Hole
    Rim26_DM18_32H
    Country of Manufacture
    Taiwan
    Rim ERD
    543
    Rim Width (mm)
    24
    Actual Weight (kg)
    0.53
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    26" (ISO 559)
    Valve Type
    Schrader
    Spoke Holes
    32 Hole
    Rim26_Alex_32H
    Country of Manufacture
    Taiwan
    Rim ERD
    544
    Rim Width (mm)
    32
    Actual Weight (kg)
    0.76
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    26" (ISO 559)
    Valve Type
    Schrader
    Spoke Holes
    32 Hole
    Rim275_DM30_32H
    Country of Manufacture
    China
    Rim ERD
    571
    Rim Width (mm)
    30
    Actual Weight (kg)
    0.76
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    650B (ISO 584)
    Valve Type
    Schrader
    Spoke Holes
    32 Hole
    Rim700_DM18_32H
    Country of Manufacture
    China
    Rim ERD
    607
    Rim Width (mm)
    24
    Actual Weight (kg)
    0.6
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    700C (ISO 622)
    Valve Type
    Schrader
    Spoke Holes
    32 Hole
    Rim700_Alex_32H
    Country of Manufacture
    China
    Rim ERD
    606
    Rim Width (mm)
    32
    Actual Weight (kg)
    0.80
    Rim Brake Compatible
    Yes
    Nominal Rim Size
    700C (ISO 622)
    Valve Type
    Schrader
    Spoke Holes
    32 Hole
    V6 Baserunner_L10
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Max Phase Amps (A)
    80
    Max Battery Amps (A)
    35
    Max Regen Voltage (V)
    60
    Battery Range (V)
    20-60
    Dimensions (L x W x H, mm)
    90 x 55 x 15
    Actual Weight (kg)
    0.18
    L1019 Motor Cable Length (cm)
    38
    6 Pin HiGo Cable Length (cm)
    16.5
    WP 8 Pin Cable Length (cm)
    15.5
    Main 9 Pin Cable Length (cm)
    16
    Small APT Colour Handlebar Display
    Country of Manufacture
    China
    5 Pin HiGo Display Cable Length (cm)
    28
    Main9 Simpleharness
    Manufacturer
    Grin
    Country of Manufacture
    Canada
    Actual Weight (kg)
    0.052
    Main 9 Pin Cable Length (cm)
    80
    3 Pin HiGo Throttle Cable Length (cm)
    10.5
    4 Pin HiGo Ebrake Cable Length (cm)
    10.5
    5 Pin HiGo Display Cable Length (cm)
    10.5
    DC 5.5 x 2.1mm Male Cable Length (cm)
    10.5
    Bidirectional Twist Throttle with HiGo 3 pin Connector Plug
    Country of Manufacture
    China
    Actual Weight (kg)
    0.25
    3 Pin HiGo Throttle Cable Length (cm)
    54
    36V 14.5Ah Downtube Battery
    Country of Manufacture
    China
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    14.5
    Cell Type
    Samsung INR21700-50G 10S x 3P
    Dimensions (L x W x H, mm)
    365x100x105
    Actual Weight (kg)
    3.15
    Nominal Voltage
    36 Volt (10s)
    Battery Mount Location
    Frame Mount
    Connector(s)
    Anderson, DT_4pinSpade, ST3
    Battery Cable Length (cm)
    30
    36V 19Ah Downtube Battery
    Country of Manufacture
    China
    Full Charge Voltage
    42.0
    Capacity (Amp-Hours)
    19.25
    Cell Type
    Samsung INR21700-50G 10S x 4P
    Dimensions (L x W x H, mm)
    365x95x100
    Actual Weight (kg)
    4.02
    Nominal Voltage
    36 Volt (10s)
    Battery Mount Location
    Frame Mount
    Connector(s)
    Anderson, DT_4pinSpade, ST3
    Battery Cable Length (cm)
    30
    36V 24Ah Downtube Battery
    Country of Manufacture
    China
    Full Charge Voltage
    42
    Capacity (Amp-Hours)
    24
    Internal Resistance (Ohms)
    0.80
    Cell Type
    Samsung INR21700-50G 10S x 5P
    Dimensions (L x W x H, mm)
    365x95x124
    Actual Weight (kg)
    4.8
    Nominal Voltage
    36 Volt (10s)
    Battery Mount Location
    Frame Mount, Rear Rack
    Connector(s)
    Anderson, ST3
    Battery Cable Length (cm)
    30
    36V 2A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.36
    Connector(s)
    ST3
    Charger Voltage
    36V (42.0V max)
    Charge Port Connector
    ST3
    36V 4A ST3 Charger
    Country of Manufacture
    China
    Actual Weight (kg)
    0.58
    Connector(s)
    ST3
    Charger Voltage
    36V (42.0V max)
    Charge Port Connector
    ST3
    48V 4A ST3 Charger
    Country of Manufacture
    China
    Dimensions (L x W x H, mm)
    197x82x46
    Actual Weight (kg)
    0.98
    Connector(s)
    ST3
    Charger Voltage
    48V (54.6V max)
    Charge Port Connector
    ST3
    48V 2A ST3 Charger
    Country of Manufacture
    China
    Dimensions (L x W x H, mm)
    169x71x40
    Actual Weight (kg)
    0.56
    Connector(s)
    ST3
    Charger Voltage
    48V (54.6V max)
    Charge Port Connector
    ST3
    Satiator 12-63V, 0-8A with ST3 Adapter
    Actual Weight (kg)
    1.06
    C7 Plus, 3W 80 Lux Ebike Light
    Country of Manufacture
    China
    Minimum Input Voltage (V)
    6
    Max Input Voltage (V)
    58
    Peak Input Power (Watts)
    3
    Light Source
    OSRAM
    Connector / Jack
    DC5.5x2.1
    Actual Weight (kg)
    .088
    SPL-01 1900 Lumen Ebike Light
    Country of Manufacture
    China
    Lumens Output
    1900
    Minimum Input Voltage (V)
    12
    Max Input Voltage (V)
    60
    Turn-On Voltage (reduced power)
    8
    Peak Input Power (Watts)
    20
    Light Source
    Multiple LEDs
    Connector / Jack
    DC 5.5x2.1mm
    Actual Weight (kg)
    0.12
    Handlebar Phone Mount and Charger
    Country of Manufacture
    China
    Minimum Input Voltage (V)
    12
    Max Input Voltage (V)
    95
    Connector / Jack
    5.5 x 2.1mm DC Jack
    Actual Weight (kg)
    0.165
    Output Voltage
    5V
    Output Current (A)
    2
    More Information
    Product Attachments
    V3 Rear All-Axle Motor, Dimensional Drawings [PDF] (633.39 kB)
    V3 Rear All-Axle Motor Owner Manual [PDF] (3.79 MB)
    V6 Baserunner User Manual (2.50 MB)
    600C Display Details (reference from manufacturer, not a Grin manual and not everything applies) (3.65 MB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    36V 14.5Ah Downtube Discharge Curves (44.17 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    36V 19Ah Downtube Discharge Curves (46.05 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    36V 24Ah Downtube Discharge Curves (47.46 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    48V 14.5Ah Downtube Discharge Curves (45.29 kB)
    Grin Downtube Battery User Manual (1.02 MB)
    Samsung 50G Cell Detailed Datasheet (2.21 MB)
    48V 19Ah Downtube Discharge Curves (45.00 kB)
    Satiator User Manual for 1.0X Firmware (1.20 MB)
    Satiator CAD Model [IGS] (9.64 MB)
    Satiator Brochure (1.55 MB)
    Satiator Charger User Manual [PDF] (4.28 MB)
    USB->TTL Programming Cable Manual (1.33 MB)
    Statorade Specifications (44.44 kB)
